425638x692A Murray - Lawn Tractor (2003)

Model: 425638x692A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Engine

...
...
1
SCREW, Thread Forming BS-26X270MA
...
2
Dash BS-1001113
...
3
Console BS-095173
...
4
Screw BS-26X253MA
...
5
FUEL CAP BS-092317MA
...
6
FUEL KIT 2.8 BS-7601093MA
...
7
Control, Throttle BS-1001224
...
8
CLAMP, Hose BS-791850
...
9
Fuel Line (Must cut to length) BS-7601033MA
...
11
Gasket, Exhaust BS-711851MA
...
12
Tube, Exhaust BS-1001496
...
13
NUT, HEX FLNG,5/16-18 BS-704067
...
14
Screw BS-06X103MA
...
15
Screw BS-26X249MA
...
16
Screw BS-26X229MA
...
17
Bracket, Muffler BS-690538E701MA
...
18
Muffler BS-094654MA
...
19
BRKT - MUFF MTG HP BS-690537E701MA
...
20
SCREW.25-20 S-T BS-26X263MA
...
21
SCREW-HEX WSHR HD TAP BS-2828635SM
...
22
STK PULLEY 38-42 IN R BS-690439MA
...
23
WASHER.46.97.25 FLAT BS-17X170MA
...
24
Washer, Star BS-019X35MA
...
25
Bolt, Hex BS-01X140MA
...
26
Drain, Oil BS-325547MA
...
--
Drain, Cap BS-327422
...
27
Plate, Engine Mount BS-094006E700

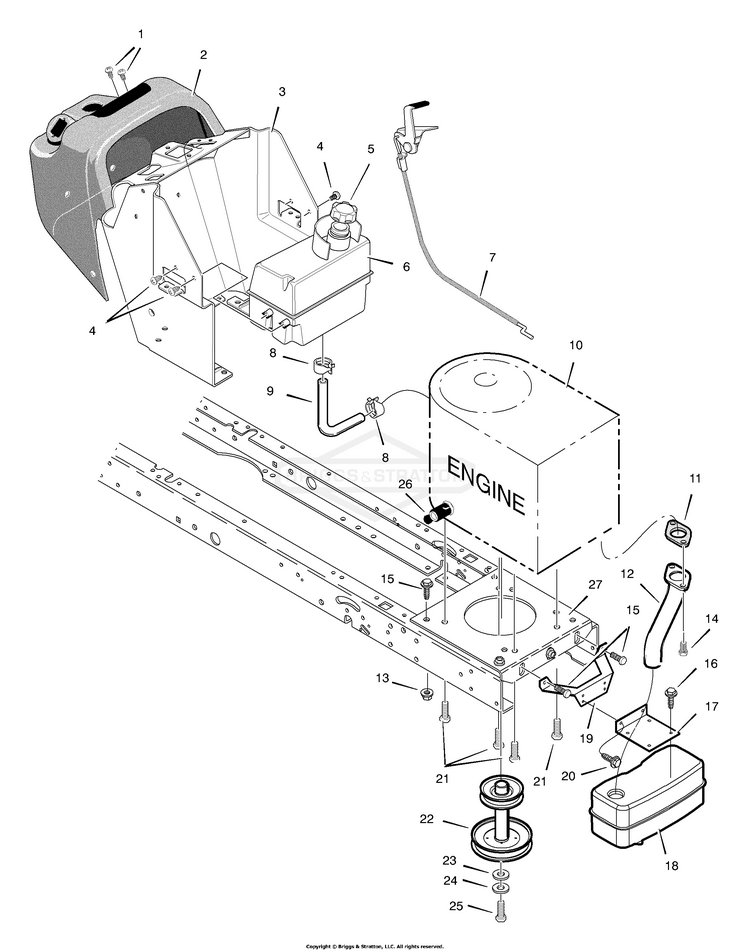

Schematic Image Zoomed
