425624x18A Murray - Lawn Tractor (2005)

Model: 425624x18A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

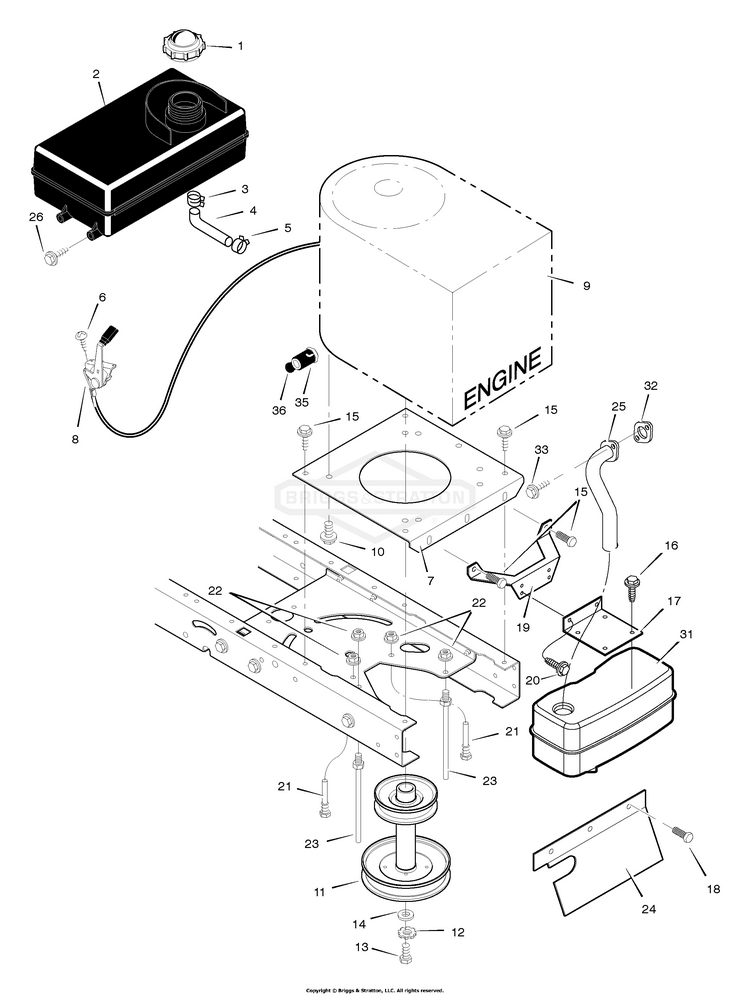

Engine Mount

...
...
1
FUEL CAP (Included with Ref. No. 2) BS-092317MA
...
2
FUEL KIT 2.8 BS-7601093MA
...
3
CLAMP, Hose (Included with Ref. No. 2) BS-791850
...
4
Fuel Line (Must cut to length) (Included with Ref. No. 2) BS-7601033MA
...
5
CLAMP, Hose (Included with Ref. No. 2) BS-791850
...
6
Screw BS-26X201MA
...
7
Plate, Engine BS-094006E700
...
8
Throttle Control BS-1001224
...
10
SCREW-HEX WSHR HD TAP BS-2828635SM
...
11
Stack Pulley Assembly BS-690440 Z
...
12
Lockwasher BS-019X35MA
...
13
Bolt, Hex BS-01X140MA
...
14
WASHER.46.97.25 FLAT BS-17X170MA
...
15
Screw BS-26X249MA
...
16
Screw BS-26X229MA
...
17
Bracket, Muffler BS-690538E701MA
...
18
Screw BS-26X277MA
...
19
BRKT - MUFF MTG HP BS-690537E701MA
...
20
SCREW.25-20 S-T BS-26X263MA
...
21
Guide, Belt BS-094384MA
...
22
Nut, Flange BS-015X79 Z
...
23
Guide, Belt BS-094066MA
...
24
Shield, Upper Heat BS-1001644E701
...
25
Exhaust Tube, Single BS-1001496
...
26
Screw BS-26X253MA
...
31
Muffler BS-094654MA
...
32
Gasket BS-711851MA
...
33
Screw BS-06X103MA
...
35
Valve, Oil Drain BS-325547MA
...
36
Cap, Oil Drain BS-327422
