425621x53A Murray - Lawn Tractor (2004)

Model: 425621x53A

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

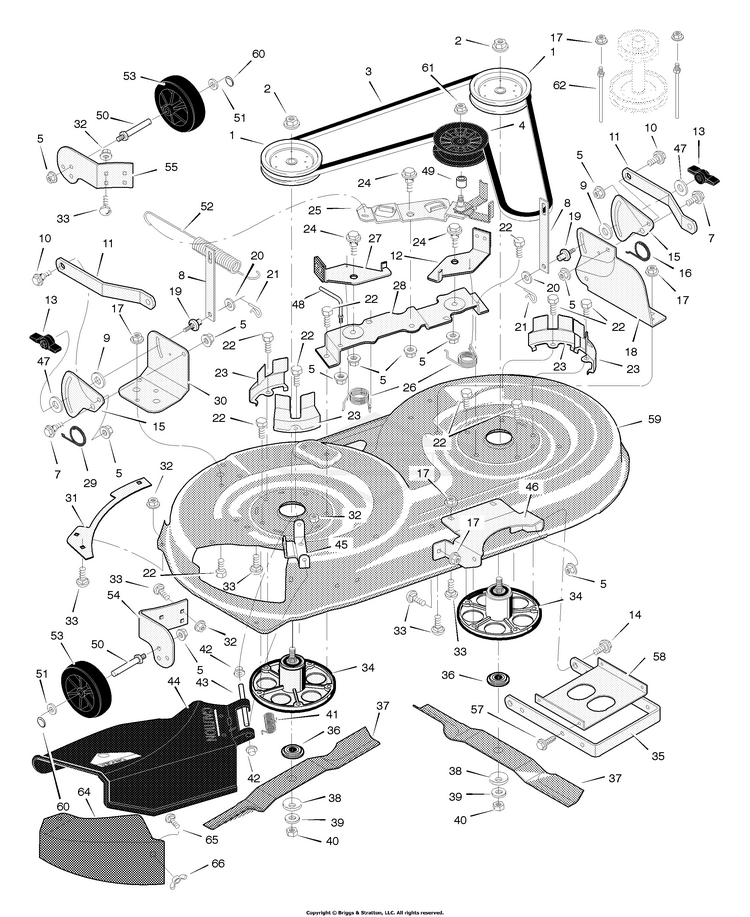

Mower Housing

...
...
1
PULLEY, BLD DRV 42 BS-494199MA
...
2
Nut, Hex BS-15X140MA
...
3
Belt, Mower Drive BS-037X88MA
...
4
Pulley, Idler BS-690387MA
...
5
NUT, CNTR LCK, 3/8-16 BS-703893
...
7
BOLT-SHD.38-16X.499D BS-009X51MA
...
8
LIFT LINK (LT) BS-690212E701MA
...
9
FRICTION PAD BS-094137MA
...
10
Bolt, Shoulder BS-009X52MA
...
11
Bracket, Suspension BS-094055E701MA
...
12
Pad Assembly, Left Brake BS-094049E701MA
...
13
WINGKNOB, 5/16-18 BS-703065
...
14
BOLT, SHOULDER BS-702315
...
15
Plate, Suspension BS-094128E701
...
16
Spring BS-166X43MA
...
17
NUT, 5/16-18, GR5 BS-703409
...
18
Bracket, Suspension BS-094192E701
...
19
PIN, Hanger BS-095194MA
...
20
Washer BS-017X91MA
...
21
PIN, 3/32 X 1.6 BS-703300
...
22
SCREW-HEX WSHR HD TAP BS-2828635SM
...
23
BELT GUIDE BS-7300859BMYP
...
24
Bolt, Shoulder BS-009X39MA
...
25
Arm, Idler BS-690408E700
...
26
Spring BS-166X41MA
...
27
Pad Assembly, Right Brake BS-094047E701MA
...
28
Bracket, Brake BS-094193E701MA
...
29
Spring BS-166X42MA
...
30
Bracket, Suspension BS-094191E701
...
31
Plate BS-092426E701MA
...
32
NUT, HEX FLNG,5/16-18 BS-704067
...
33
BOLT BS-703159
...
34
JACKSHAFT HSNG ASSY BS-1001200MA
...
35
BRKT-FRT SUSPENSION BS-690539E701MA
...
36
Adapter, Blade BS-690411MA
...
37
Blade BS-095100E701MA
...
38
Washer BS-17X166MA
...
39
Washer BS-17X165MA
...
40
Nut BS-15X100MA
...
41
Spring BS-0166X4MA
...
42
PUSHNUT, 3/8 BS-703948
...
43
ROD, Deflector BS-094957ZMA
...
44
Deflector Assembly BS-094707MA
...
45
BRACKET - HINGE BS-094956E701MA
...
46
Bracket, Front Hanger BS-094190E701
...
47
WASHER,FLAT .33 1. 16 BS-017X45MA
...
48
Guide, Belt BS-094781MA
...
49
Spacer BS-690369MA
...
50
BOLT, Gauge Wheel BS-094025MA
...
51
Washer BS-017X91MA
...
52
Spring, Extension BS-165X119MA
...
53
Wheel, Gage BS-092683MA
...
54
BRKT RH GAGE WHEEL 42 BS-1001260E701MA
...
55
Bracket, Left Wheel BS-092423E701MA
...
57
Screw BS-26X249MA
...
59
Housing, Blade, Complete (NO LONGER AVAILABLE) (Includes Ref. No. 17, 18, 30, 31, 32, 33, 45, 46, 53, 54, 55, and 56) BS-094814E701MA
...
59
Housing, Blade (Housing Only) BS-094188E701MA
...
58
Stiffener BS-094604E701MA
...
60
Ring, Locking BS-031X11MA
...
61
NUT, CNTR LCK, 3/8-16 BS-703893
...
62
Guide, Belt BS-094066MA
...
64
Cover, Mulch BS-095080E704
...
65
Bolt, Carriage BS-002X64MA
...
66
NUT BS-703141
...
...
...
