425620x99B Murray - Lawn Tractor (2004)

Model: 425620x99B

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

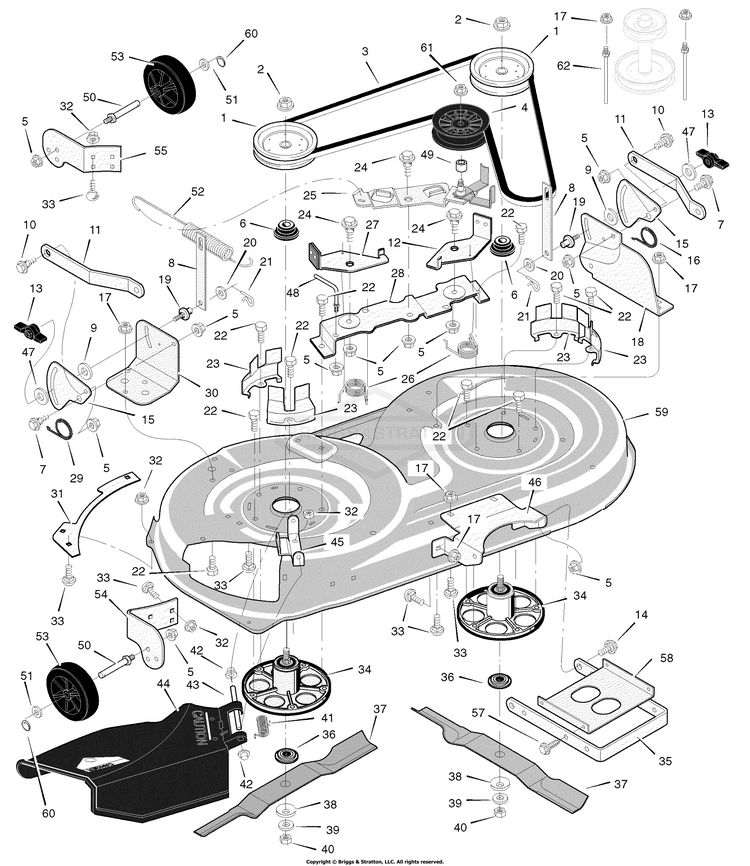

Mower Housing

...
...
1
Pulley, Jackshaft BS-94199
...
2
Nut, Hex BS-15X140
...
3
Belt, Mower Drive BS-037X88
...
4
Pulley, Idler BS-690387
...
5
NUT, CNTR LCK, 3/8-16 BS-703893
...
6
Spacer, Pulley (Included with Ref. No. 34) BS-1001197MA
...
7
BOLT-SHD.38-16X.499D BS-009X51MA
...
8
Link, Lift BS-690212E701
...
9
SCREW BS-690326
...
10
BOLT, Shoulder 3/8-16 x 1 BS-009X52MA
...
11
Bracket, Suspension BS-094055E701
...
12
Pad Assembly, Left Brake BS-094049E701
...
13
Knob BS-94068
...
14
BOLT, SHOULDER BS-702315
...
15
Plate, Suspension BS-094128E701
...
16
SPRING, Left Torsion BS-166X43MA
...
17
Nut, Flange BS-015X79
...
18
Bracket, Suspension BS-094192E701
...
19
Pin, Hanger BS-95194
...
20
WASHER, Flat, 13/16 BS-017X91MA
...
21
PIN, 3/32 X 1.6 BS-703300
...
22
SCREW-HEX WSHR HD TAP BS-2828635SM
...
23
BELT GUIDE BS-7300859BMYP
...
24
Bolt, Shoulder BS-009X39
...
25
Arm, Idler BS-690408E700
...
26
Spring BS-166X41
...
27
Pad Assembly, Right Brake BS-094047E701
...
28
Bracket, Brake BS-094193E701
...
29
SPRING, Right Torsion BS-166X42MA
...
30
Bracket, Suspension BS-094191E701
...
31
PLATE, Rear 42" BS-092426E701MA
...
32
NUT, HEX FLNG,5/16-18 BS-704067
...
33
BOLT BS-703159
...
34
JACKSHAFT HSNG ASSY BS-1001200MA
...
35
Bracket, Suspension BS-690539E701
...
36
Adapter, Blade BS-690411
...
37
Blade BS-095100E701
...
38
Washer, Belleville BS-17X166MA
...
39
Washer BS-17X165MA
...
40
Nut, Hex BS-15X100MA
...
41
SPRING, Torsion BS-0166X4MA
...
42
PUSHNUT, 3/8 BS-703948
...
43
ROD, Deflector BS-094957ZMA
...
44
Deflector Assembly BS-094707SE
...
45
BRACKET - HINGE BS-094956E701MA
...
46
Bracket, Front Hanger BS-094190E701
...
47
WASHER,FLAT .33 1. 16 BS-017X45MA
...
48
Guide, Belt BS-94781
...
49
SCREW BS-690369
...
50
Bolt, Axle BS-94025
...
51
WASHER, Flat, 13/16 BS-017X91MA
...
52
Spring, Extension BS-165X119
...
53
Wheel, Gage BS-092683MA
...
54
BRKT RH GAGE WHEEL 42 BS-1001260E701MA
...
55
Bracket, Left Wheel BS-092423E701MA
...
57
CAPSCREW, 5/16-18 BS-26X249MA
...
58
Stiffener BS-094604E701
...
59
Housing, Blade * BS-094814E701
...
60
Ring, Locking BS-031X11MA
...
61
NUT, CNTR LCK, 3/8-16 BS-703893
...
62
Guide, Belt BS-94066
