product name

425620x99B Murray - Lawn Tractor (2004)

Model: 425620x99B

Back To Assemblies

Save Part Not Listed?
product name

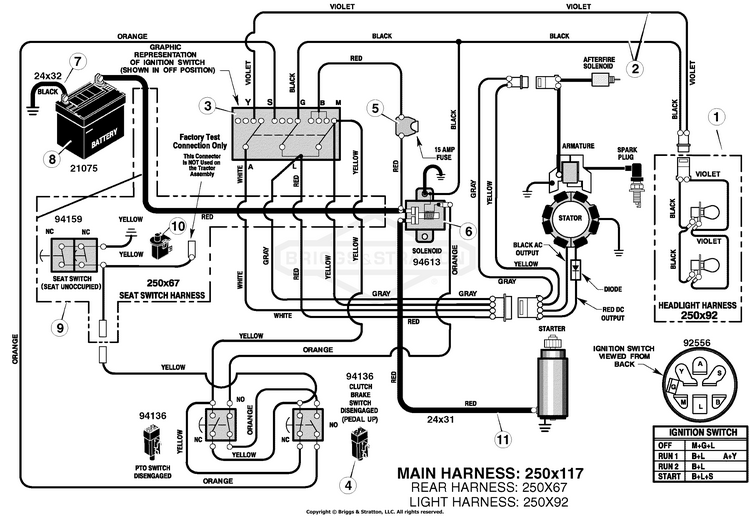

Electrical System

...
...
1
Harness, Light Wire BS-250X92
...
1
Socket, Light BS-1001716
...
1
HHCS, 1/4C X1-1/2 BS-7090639YP
...
2
Harness, Chassis Wire BS-250X117
...
3
Switch, Ignition BS-92556
...
3
Key, Ignition BS-20729
...
3
HLDR, BRUSH BS-91489GS
...
3
PLUG BS-794903
...
4
Switch, Limit BS-94136
...
5
FUSE, 15 Amp BS-302031MA
...
5
Holder, Fuse BS-407078
...
6
PLUG, Oil Drain BS-691680
...
6
SCREW, 1/4-14 x 3/8 BS-26X229MA
...
6
Locknut BS-15X116
...
7
Cable, Battery Ground BS-024X32MA
...
7
Screw, Ground Cable BS-26X213
...
8
Battery BS-21075
...
8
BOLT, 1/4-20X0.625 BS-703841
...
8
WINGNUT, 1/4-20 BS-014X79MA
...
9
Harness, Seat Switch Wire BS-250X67
...
10
Switch, Seat Sensor BS-94159
...
11
CABLE, Battery 8GA 18.00L - Red BS-024X31MA
