425618x48B Murray - Lawn Tractor (2004)

Model: 425618x48B

Back To Assemblies

Save Part Not Listed?
product name

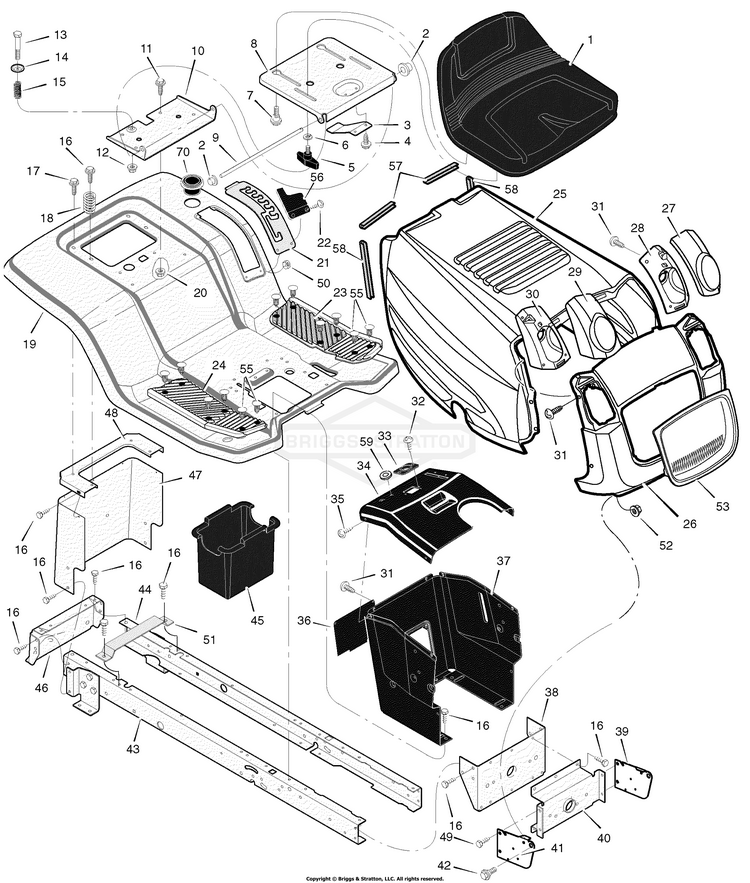

Chassis & Hood

...
...
1
Seat BS-95415
...
2
PUSHNUT, 3/8 BS-703948
...
3
BEARING- LOWER BS-94124
...
4
SCREW, 1/4-14 x 3/8 BS-26X229MA
...
5
BOLT, Wing 5/16-18 x 1/2 BS-1001054MA
...
6
WASHER, FLAT 5/16 BS-704015
...
7
BOLT, Shoulder 5/16-18 x 5/8 BS-009X56MA
...
8
Support, Seat BS-094154E700
...
9
Rod, Pivot BS-094156ZMA
...
10
Bracket, Pivot BS-1001648E700
...
11
CAPSCREW,5/16-18X.625 BS-703822
...
12
NUT .25-20 FLANGELOCK BS-015X89MA
...
13
BOLT, Shoulder 1/4-20 x 5/16 BS-009X55MA
...
14
Washer BS-094155 Z
...
15
SPRING, Compression BS-164X31MA
...
16
CAPSCREW, 5/16-18 BS-26X249MA
...
17
SCREW.25-20 S-T BS-26X263MA
...
18
SPRING, Compression BS-164X30MA
...
19
Deck, Seat BS-1001556E663
...
20
NUT, HEX, 5/16-18 BS-703902
...
21
Plate, Index BS-094194E700
...
22
SCREW, Shoulder #10-24 BS-009X47MA
...
23
Mat, Left BS-95408
...
24
Mat, Right BS-95409
...
25
Hood BS-1001537E663
...
26
Grille BS-1001533E663
...
27
Lens, Left BS-1001552
...
28
Housing, Left Headlamp BS-1001550
...
29
Lens, Right BS-1001551
...
30
Housing, Right Headlamp BS-1001549
...
31
SCREW, Thread Forming BS-26X270MA
...
32
Screw BS-26X238
...
33
BEARING, Steering BS-1001491MA
...
34
Dash BS-1001594E700
...
35
SCREW, Self Tap #8 x 3/8 BS-26X201MA
...
36
Panel, Access BS-093007E700
...
37
Support, Dash BS-095318E700
...
38
Bracket, Rear Hanger BS-1001270E700
...
39
Support, Left Grille BS-094085E701MA
...
40
Axle, Hanger BS-094007E700
...
41
Support, Right Grille BS-094084E701MA
...
43
Frame, Right BS-1001928E701
...
44
Frame, Left BS-1001927E701
...
45
Container, Battery BS-690424
...
46
Plate, Hitch BS-1001002E701
...
47
Plate, Rear –Electric Lift BS-1001906E700
...
48
Top, Rear Plate BS-094186E700
...
49
SCREW, 5/16-18 x 1/2 BS-26X277MA
...
50
NUT#10-24 MCLEANLOCK BS-015X81MA
...
51
Bracket, Battery Support BS-690482E701
...
52
Nut BS-015X124
...
53
Insert, Grille BS-1001617
...
55
Fastener, Panel BS-193X1
...
56
SCREW BS-691660
...
57
Trim, Hood (3.75") BS-1001652
...
58
Trim, Hood (6.5") BS-1001653
...
59
Grommet, Parking Brake BS-1001755
...
70
Holder, Cup BS-1001542
...
––
Bag Asembly, Parts BS-1001599
...
--
Instruction Book & Parts List BS-F-040757L
...
42
BOLT, SHOULDER BS-702315
