425615x99B Murray - Lawn Tractor (2005)

Model: 425615x99B

Back To Assemblies

Save Part Not Listed?
product name

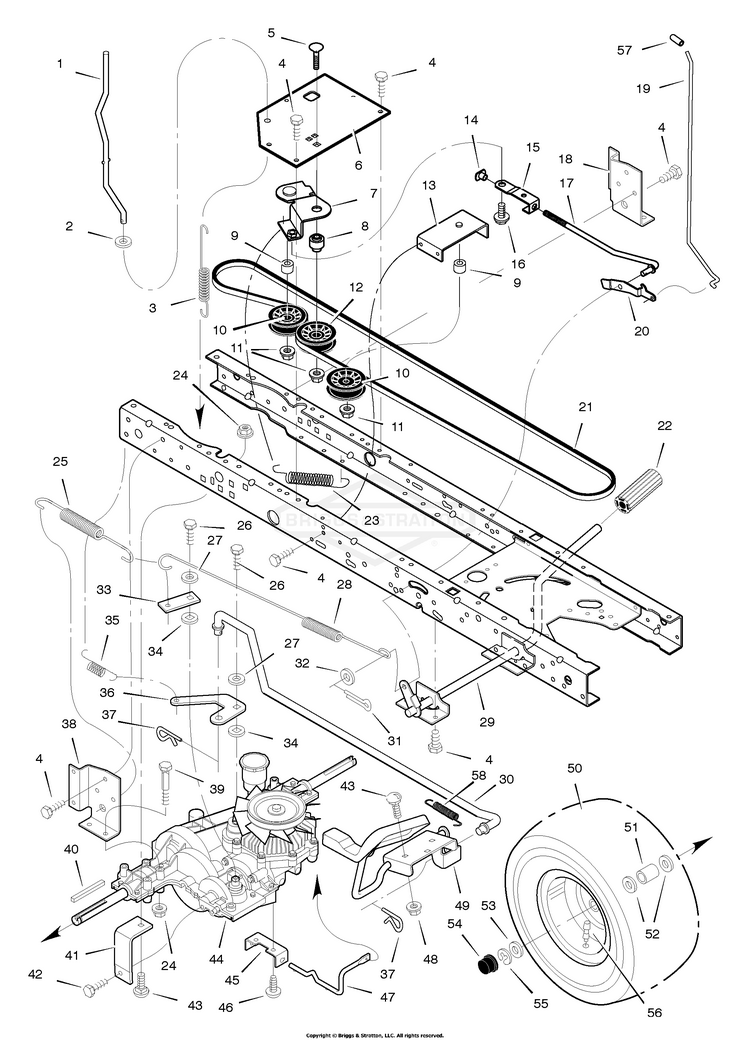

Drive Assembly

...
...
1
Rod, Dump BS-1001863MA
...
2
Washer BS-017X44MA
...
3
Spring - Extension BS-165X136
...
4
Screw BS-26X249MA
...
5
BOLT, 3/8-16 X 2", CA BS-5025146X16SM
...
6
BRKT, IDLER PIVOT BS-726355BMYP
...
7
Assy-Idler Arm BS-1001018 Z
...
8
Pivot Bushing BS-1001012MA
...
9
Spacer BS-690369MA
...
10
Idler Pulley BS-690409MA
...
11
NUT, CNTR LCK, 3/8-16 BS-703893
...
12
Idler Pulley BS-690410MA
...
13
Idler, Bracket Assy. BS-1001097E701
...
14
Nut-Tee BS-1001014MA
...
15
Link-Clutch BS-1001007 Z
...
16
Shoulder Bolt BS-009X49MA
...
17
Rod-Clutch BS-1001013 Z
...
18
Bracket, T/A -LH BS-094008E701MA
...
19
Rod-Parking Brake BS-1001245 Z
...
20
Latch, Parking Brake BS-094045 Z
...
21
V-Belt, Dana Hydro BS-37X144MA
...
22
PEDAL-BRAKE BLACK RUB BS-1727261SM
...
23
Spring - Clutch BS-165X155MA
...
24
NUT, HEX FLNG,5/16-18 BS-704067
...
25
Spring - Extension BS-165X92MA
...
26
Cap Screw BS-06X105MA
...
27
Washer BS-017X38MA
...
28
Spring - Brake BS-165X122
...
29
LEVER, BRAKE, CLUTCH BS-7400256ZMA
...
30
Rod, Control BS-1002059
...
31
PIN, COTTER, 3/32X.75 BS-703312
...
32
Washer BS-017X48MA
...
33
Arm. Brake BS-094419ZMA
...
34
Washer BS-17X148MA
...
35
Spring - Extension BS-165X127MA
...
36
Arm, Control BS-094418 Z
...
37
PIN, 3/32 X 1.6 BS-703300
...
38
Bracket, T/A -RH BS-094008E701MA
...
39
SCREW BS-703868
...
40
Square Key - 3/16 BS-021553MA
...
41
Strap-Torque BS-095022E701
...
42
Screw BS-26X216MA
...
43
BOLT, 5/16-18 X 3/4", BS-5025145X6SM
...
45
Bracket, Dump Valve BS-092603 Z
...
46
Screw - Thread Form BS-0025X9MA
...
47
Rod-Dump Valve BS-093247
...
48
NUT, 5/16-18, GR5 BS-703409
...
49
Assy-Hydro Pedal BS-1002060E701
...
50
Wheel & Tire BS-092291601
...
--
Tire Only BS-024380
...
--
Tube Only BS-407049MA
...
51
Spacer BS-690553 Z
...
52
Washer BS-17X160MA
...
53
Washer BS-17X195MA
...
54
HUB CAP BS-094618MA
...
55
RING, E .750D .050T BS-0011X3MA
...
56
VALVE STM&CP,TR41 SE BS-024373MA
...
57
Grip BS-091079MA
...
58
Spring BS-165X168MA
