425615x99A Murray - Lawn Tractor (2004)

Model: 425615x99A

Back To Assemblies

Save Part Not Listed?
product name

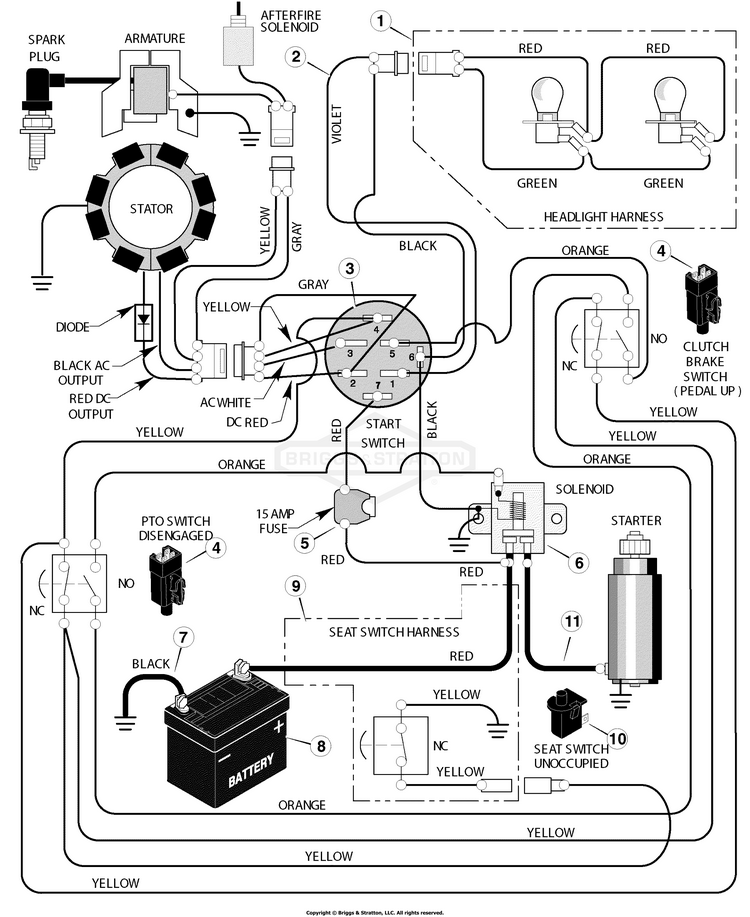

Electrical System

...
...
1
Harness, Light Wire BS-250X92
...
1
Socket, Light BS-092372
...
1
Bulb, Light BS-090084
...
2
Harness, Chassis Wire BS-250X117
...
3
SWITCH, Ignition BS-092556MA
...
3
Key, Ignition BS-020729
...
3
SET, Washer/Nut BS-847144
...
3
CAP, Switch BS-847150
...
4
Switch, Limit BS-094136MA
...
5
FUSE, 15 Amp BS-302031MA
...
5
Holder, Fuse BS-407078
...
6
Solenoid BS-094613
...
6
SCREW, 1/4-14 x 3/8 BS-26X229MA
...
6
Locknut BS-15X116
...
7
Cable, Battery Ground BS-024X32MA
...
7
Screw, Ground Cable BS-26X213
...
8
Battery BS-021075
...
8
BOLT, 1/4-20X0.625 BS-703841
...
8
WINGNUT, 1/4-20 BS-014X79MA
...
9
Harness, Seat Switch Wire BS-250X67
...
10
Switch, Seat Sensor BS-094159
...
11
CABLE, Battery 8GA 18.00L - Red BS-024X31MA
