425615x52A Murray - Lawn Tractor (2004)

Model: 425615x52A

Back To Assemblies

Save Part Not Listed?
product name

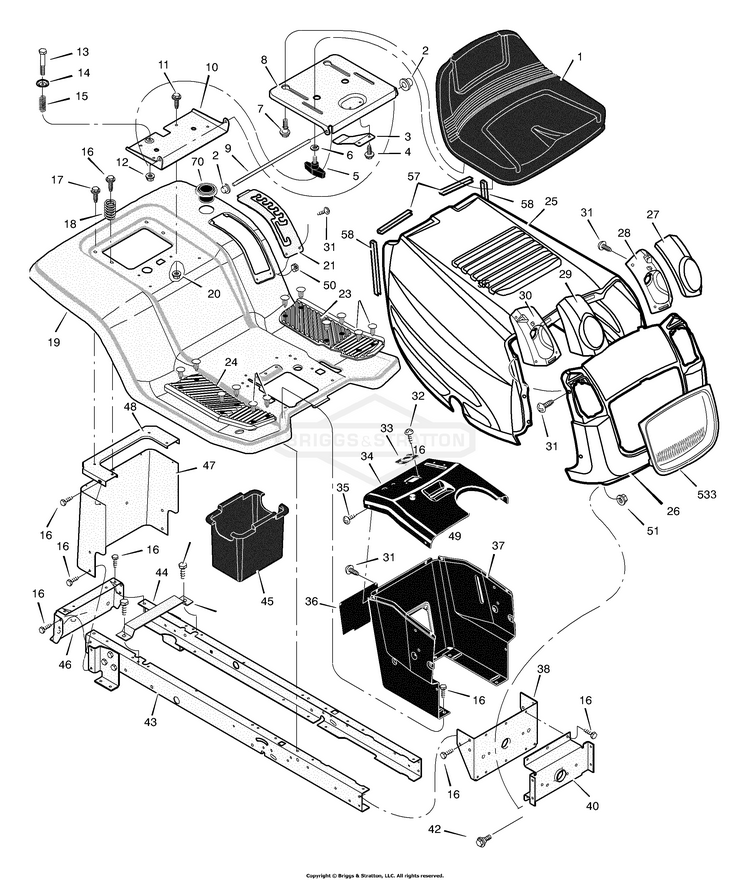

Chassis & Hood

...
...
1
Seat BS-095236
...
2
PUSHNUT, 3/8 BS-703948
...
3
Spring BS-094057MA
...
4
Screw BS-26X229MA
...
5
Bolt, Wing BS-1001054MA
...
6
WASHER, FLAT 5/16 BS-704015
...
7
Bolt, Shoulder BS-009X56MA
...
8
SUPPORT, SEAT BS-7300875BMYP
...
9
Rod, Pivot BS-094156ZMA
...
10
Bracket, Pivot BS-1001648E701MA
...
11
CAPSCREW,5/16-18X.625 BS-703822
...
12
NUT .25-20 FLANGELOCK BS-015X89MA
...
13
Bolt, Shoulder BS-009X55MA
...
14
Washer BS-094155 Z
...
15
SPRING, Compression BS-164X31MA
...
16
Screw BS-26X249MA
...
17
SCREW.25-20 S-T BS-26X263MA
...
18
Spring BS-164X30MA
...
19
Deck, Seat BS-1001556E013
...
20
NUT, HEX, 5/16-18 BS-703902
...
21
Plate, Lift BS-094886E700
...
22
Screw BS-009X47MA
...
23
Mat, Left BS-095437
...
24
Mat, Right BS-095438
...
25
Hood BS-1001660E013
...
--
Baffle, Foam (Not Illustrated) BS-1001849
...
26
Grille BS-1001533E717MA
...
27
Lens, Left BS-1001552MA
...
28
Housing, Left Headlamp BS-1001550
...
29
Lens, Right BS-1001551MA
...
30
Housing, Right Headlamp BS-1001549
...
31
SCREW, Thread Forming BS-26X270MA
...
32
Screw BS-26X238MA
...
33
Bearing, Steering BS-1001491MA
...
34
Dash BS-1001594E717
...
35
Screw BS-26X201MA
...
36
Panel, Access BS-093007E701MA
...
37
SUPPORT, Dash BS-7300872TMA
...
38
Bracket, Rear Hanger BS-1001270E701MA
...
40
Axle, Hanger BS-094007E701MA
...
42
BOLT, SHOULDER BS-702315
...
43
RAIL - FRAME RH BS-1001928E701MA
...
44
Frame, Left BS-1001927E701
...
45
Container, Battery BS-690424MA
...
46
Plate, Hitch BS-1001002E700
...
47
Plate, Rear BS-1001906E700
...
48
Top, Rear Plate BS-094186E701
...
49
Bracket, Battery Support BS-690482E701
...
50
NUT#10-24 MCLEANLOCK BS-015X81MA
...
51
Nut BS-15X124
...
53
Insert, Grille BS-1001541MA
...
54
Screw BS-26X259MA
...
55
Fastener, Panel (Gray) BS-0193X3
...
57
STRIP, Trim BS-7102404YP
...
58
STRIP, Trim BS-7102404YP
...
70
Holder, Cup BS-1001542MA
...
--
Bag Assembly, Parts BS-1001482
...
--
Instruction Book & Parts List BS-F-040746L
