425615x30A Murray - Lawn Tractor (2003)

Model: 425615x30A

Back To Assemblies

Save Part Not Listed?
product name

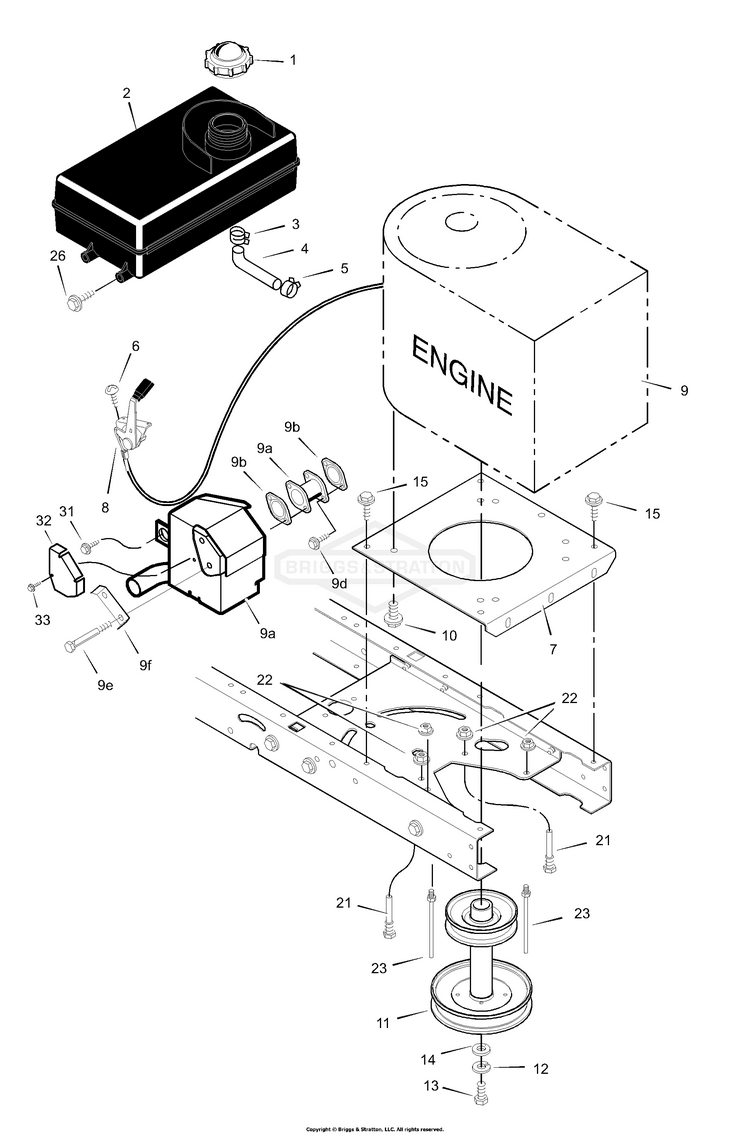

Engine Mount

...
...
1
FUEL CAP BS-092317MA
...
2
TANK, Fuel 1.4 Gal. BS-7601092MA
...
3
CLAMP, Hose BS-791850
...
4
Fuel Line (Must cut to length) BS-7601033MA
...
5
CLAMP, Hose BS-791850
...
6
Screw BS-26X201MA
...
7
Plate, Engine BS-094006E700
...
8
Throttle Control BS-092371MA
...
9A
Muffler and Heat Shield BS-1001515
...
9B
GASKET, Exhaust BS-692236
...
9C
ADAPTER, Muffler BS-796002
...
9D
Screw, Adapter BS-06X103MA
...
9E
Bolt, Muffler BS-01X134MA
...
9F
LOCK-SCREW 223016 BS-092378MA
...
10
SCREW-HEX WSHR HD TAP BS-2828635SM
...
11
STK PULLEY 38-42 IN R BS-690439MA
...
12
Lockwasher BS-019X35MA
...
13
Bolt, Hex BS-01X140MA
...
14
WASHER.46.97.25 FLAT BS-17X170MA
...
15
Screw BS-26X249MA
...
16
Plenum BS-1001660
...
21
Guide, Belt BS-094384MA
...
22
Nut, Flange BS-015X79 Z
...
23
Guide, Belt BS-094066MA
...
26
Screw BS-26X253MA
...
31
SCREW.25-20 S-T BS-26X263MA
...
32
Shield, Heat BS-1001615MA
...
33
Screw BS-26X208MA
