425611x99C Murray - Lawn Tractor (2002)

Model: 425611x99C

Back To Assemblies

Save Part Not Listed?
product name

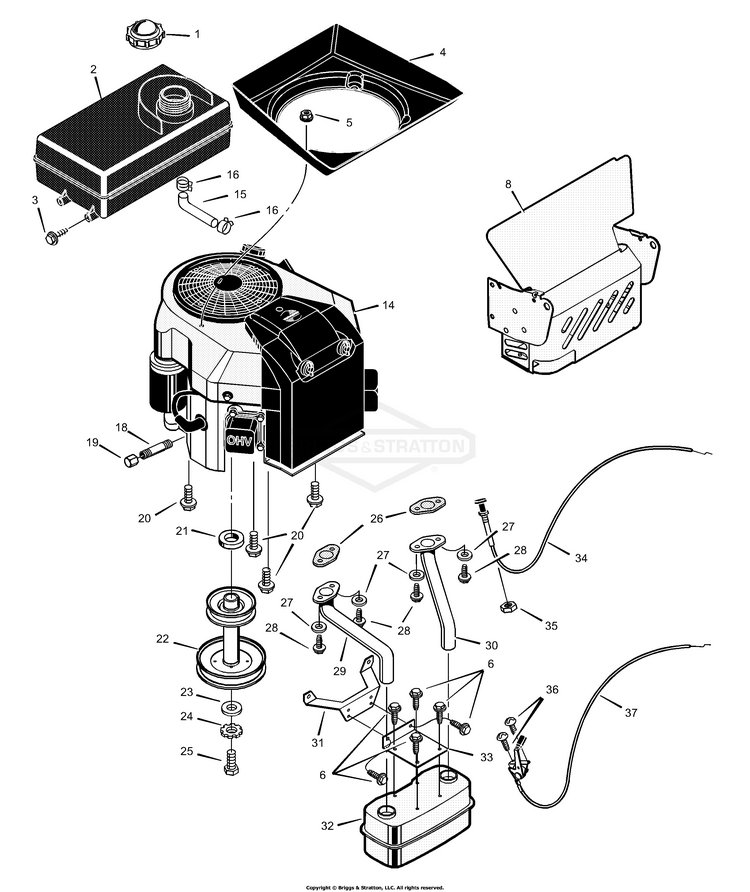

Engine Mount Assembly

...
...
1
FUEL CAP BS-092317MA
...
2
Tank, Fuel BS-094086
...
3
Screw BS-26X233MA
...
4
Plenum, Air Intake BS-1001041
...
5
NUT, 1/4-20, NYLOCK BS-703232
...
8
Shield, Heat BS-1001456-701
...
15
Fuel Line (Must cut to length) BS-7601033MA
...
16
CLAMP, Hose BS-791850
...
18
Pipe, Oil Drain BS-092279
...
19
Cap, Oil Drain BS-021651
...
20
SCREW-HEX WSHR HD TAP BS-2828635SM
...
21
Spacer BS-093077MA
...
22
STK PULLEY 38-42 IN R BS-690439MA
...
23
WASHER.46.97.25 FLAT BS-17X170MA
...
24
Lockwasher BS-019X35MA
...
25
Bolt BS-01X140MA
...
26
Gasket BS-711851MA
...
27
WASHER, 5/16" LOCK BS-5025170SM
...
28
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
29
Tube, Right Exhaust BS-1001038
...
30
Tube, Left Exhaust BS-1001039
...
31
BRKT - MUFF MTG HP BS-690537E701MA
...
32
Muffler BS-093259MA
...
33
Bracket, Muffler BS-690538E701MA
...
34
Choke BS-690401
...
35
NUT, 3/8-16 BS-703333
...
36
Screw BS-26X201MA
...
37
Control, Throttle BS-093165MA
