425601x53B Murray - Lawn Tractor (2001)

Model: 425601x53B

Back To Assemblies

Save Part Not Listed?
product name

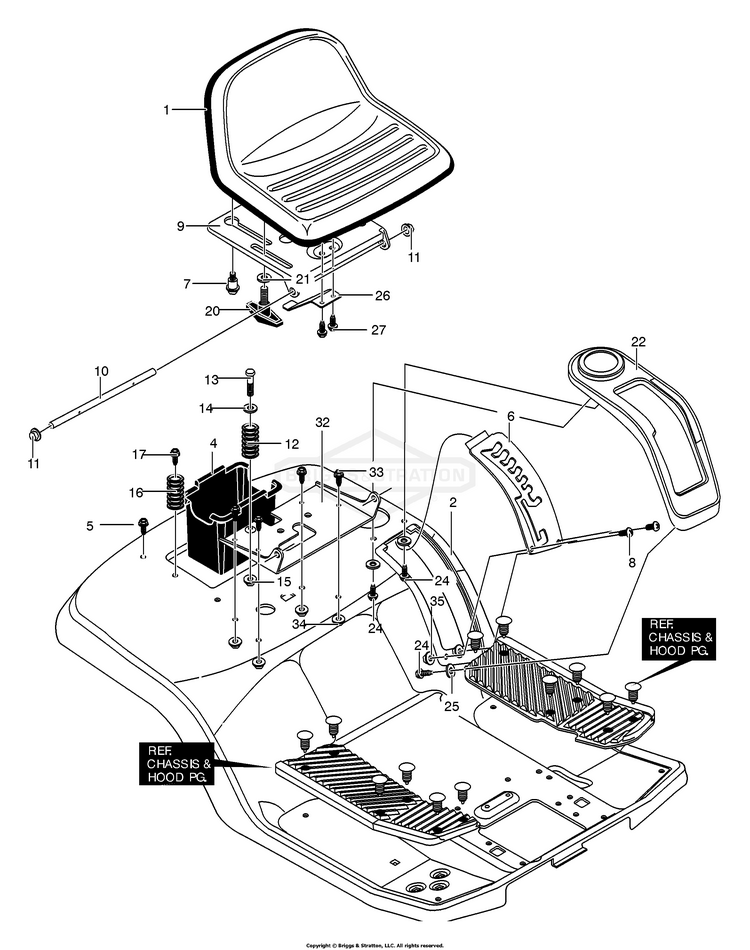

Rear Chassis Assembly

...
...
1
SEAT BS-095415MA
...
2
SEAT DECK BS-094629E700
...
4
CONTAINER, BATTERY BS-690424MA
...
5
SCREW.25-20 S-T BS-26X263MA
...
6
PLATE, LIFT BS-094886E701
...
7
BOLT, SHOULDER BS-009X56MA
...
8
SCREW, Thread Forming BS-26X270MA
...
9
SUPPORT, SEAT BS-094154E700
...
10
HINGE, SEAT PIVOT BS-094156ZMA
...
11
PUSHNUT, 3/8 BS-703948
...
12
SPRING, Compression BS-164X31MA
...
13
BOLT, SHOULDER BS-009X55MA
...
14
WASHER, CUP BS-094155 Z
...
15
NUT .25-20 FLANGELOCK BS-015X89MA
...
16
SPRING, COMPRESSION BS-164X30MA
...
17
SCREW BS-26X249MA
...
20
BOLT, WING BS-1001054MA
...
21
WASHER, FLAT 5/16 BS-704015
...
22
COVER, DETENT BS-094469
...
24
SCREW BS-26X284MA
...
25
WASHER BS-17X207
...
26
SPRING - LEAF BS-094057MA
...
27
SCREW, 1/4-20X.50 BS-26X229MA
...
32
Bracket, Pivot BS-1001648E701MA
...
33
CAPSCREW,5/16-18X.625 BS-703822
...
34
NUT, HEX FLNG,5/16-18 BS-704067
...
35
NUT#10-24 MCLEANLOCK BS-015X81MA
