425601x53B Murray - Lawn Tractor (2001)

Model: 425601x53B

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

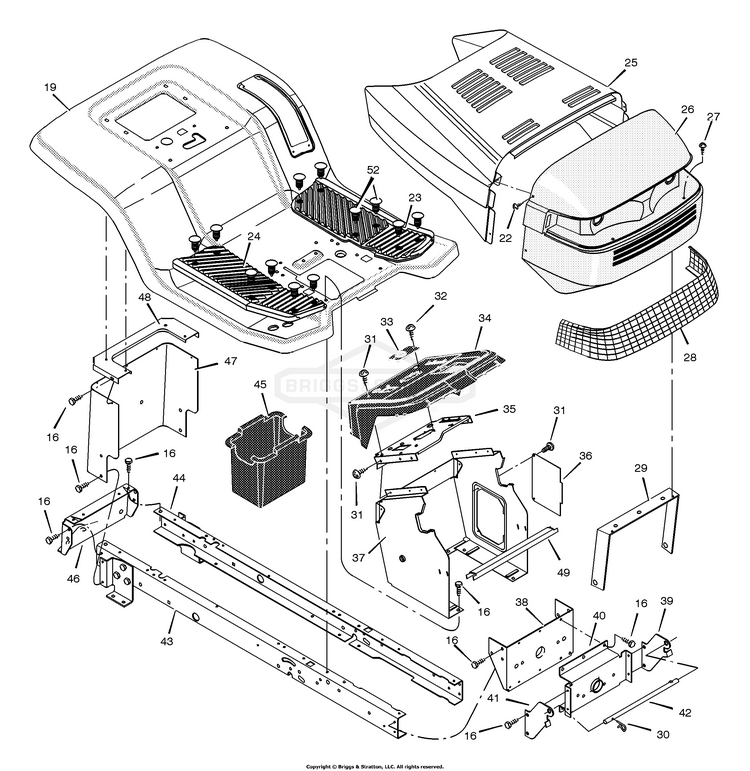

Chassis And Hood

...
...
16
Screw BS-26X249MA
...
19
Deck, Seat BS-094629E700
...
23
Mat, Left BS-095408MA
...
24
Mat, Right BS-095409MA
...
25
HOOD BS-093215E701MA
...
26
Grille Assembly (Includes Lens) BS-093149MA
...
27
Screw BS-26X239MA
...
28
Lens BS-093139MA
...
29
Brace, Grille BS-093190MA
...
30
PIN, 3/32 X 1.6 BS-703300
...
31
SCREW, Thread Forming BS-26X270MA
...
32
Screw BS-26X238MA
...
33
Bearing, Steering BS-094219MA
...
34
Dash BS-094223
...
35
Plate, Dash BS-094221E701MA
...
36
Panel, Access BS-093007E700
...
37
Support, Dash BS-095082E700
...
38
Bracket, Rear Hanger BS-1001270E701MA
...
39
Support, Left Grille BS-690544E700
...
40
Axle, Hanger BS-094007E700
...
41
Support, Right Grille BS-690543E700
...
42
Rod, Pivot BS-093137 Z
...
43
Frame, Right BS-1001268E701
...
44
RAIL-FRAME LH BS-1001269E701MA
...
45
Container, Battery BS-690424MA
...
46
Plate, Hitch BS-1001002E700
...
47
Plate, Rear BS-690218E700
...
48
Top, Rear Plate BS-094186E700
...
49
Channel BS-095081E700
...
52
Fastener BS-0193X1MA
...
--
Instruction Book & Parts List BS-F-010796L
