42538x30A Murray - Lawn Tractor (1997)

Model: 42538x30A

Back To Assemblies

Save Part Not Listed?
product name

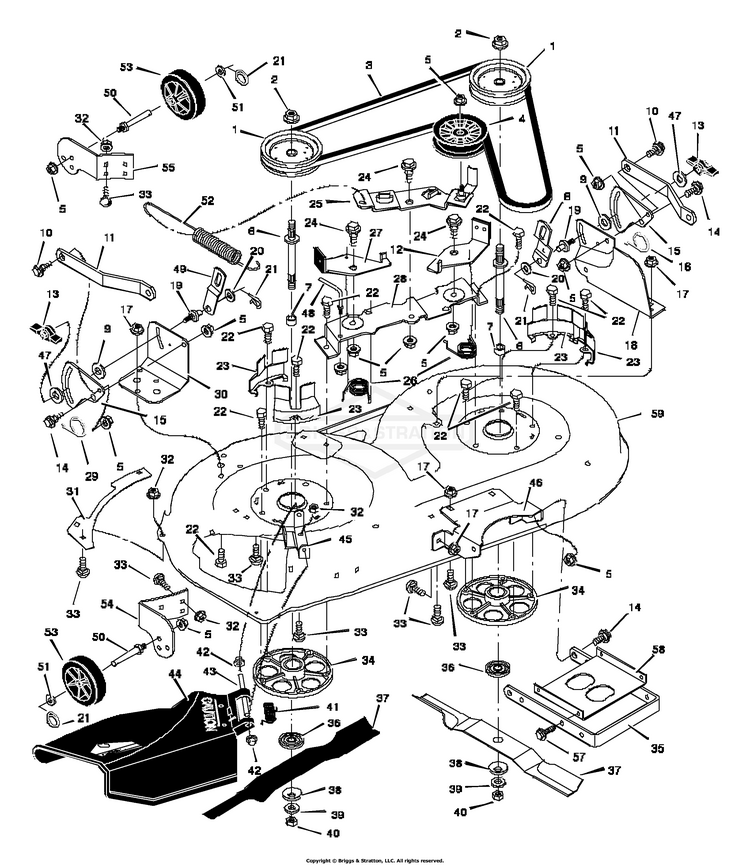

Mower Housing

...
...
1
PULLEY, BLD DRV 42 BS-494199MA
...
2
Nut, Hex BS-15X121
...
3
Belt, Mower Drive BS-037X88A
...
4
PULLEY, IDLER BS-091801MA
...
5
NUT, CNTR LCK, 3/8-16 BS-703893
...
6
Jackshaft BS-094129
...
7
Spacer BS-094130MA
...
8
LIFTER LINK, RIGHT BS-094053E701MA
...
9
FRICTION PAD BS-094137MA
...
10
Bolt, Shoulder BS-009X52MA
...
11
Bracket, Suspension BS-094055E701MA
...
12
Pad Assembly, Left Brake BS-94049
...
13
WINGKNOB, 5/16-18 BS-703065
...
14
BOLT-SHD.38-16X.499D BS-009X51MA
...
15
Plate, Suspension BS-94128E701
...
16
Spring BS-166X43MA
...
17
NUT, 5/16-18, GR5 BS-703409
...
18
BRACKET, DECK LH 42 BS-094192E701MA
...
19
Pin, Hanger BS-094064
...
20
Washer BS-17X103MA
...
21
Ring, Locking BS-031X11MA
...
22
SCREW-HEX WSHR HD TAP BS-2828635SM
...
23
BELT GUIDE BS-7300859BMYP
...
24
Bolt, Shoulder BS-009X39MA
...
25
Arm, Idler BS-94177E701
...
26
Spring BS-166X41MA
...
27
SPACER, Fuel Tank BS-691633
...
28
Bracket, Brake BS-094193E701MA
...
29
Spring BS-166X42MA
...
30
Bracket, Suspension BS-94191E701
...
31
Plate BS-092426E701MA
...
32
NUT, HEX FLNG,5/16-18 BS-704067
...
33
BOLT BS-703159
...
34
Mandrell Housing BS-092574
...
35
Bracket, Suspension BS-94058E701
...
36
Adapter, Blade BS-092466MA
...
37
SINGLE BLADE BS-095101E701MA
...
38
Washer BS-17X166MA
...
39
Washer BS-17X165MA
...
40
Nut BS-15X100MA
...
41
Spring BS-0166X4MA
...
42
PUSHNUT, 3/8 BS-703948
...
43
Rod, Pivot BS-091767 Z
...
44
Deflector BS-094707MA
...
45
Bracket, Deflector Hinge BS-91765E701
...
46
Bracket, Front Hanger BS-94190E701
...
47
WASHER,FLAT .33 1. 16 BS-017X45MA
...
48
Guide, Belt BS-094781MA
...
49
Link, Right Lift BS-94611E701
...
50
BOLT, Gauge Wheel BS-094025MA
...
51
Washer BS-017X91MA
...
52
Spring, Extension BS-165X119MA
...
53
Wheel, Gage BS-092683MA
...
54
BRKT RH GAGE WHEEL 42 BS-1001260E701MA
...
55
Bracket, Left Wheel BS-92423E701
...
56
Brace, Hanger BS-94604E701
...
57
Screw BS-26X249MA
...
58
Stiffener BS-94604E701
...
59
Housing, Blade (Includes Ref. No. 17, 18, 30, 31, 32, 33, 45, 46, 53, 54, 55, and 56) BS-94188E701
