42537A Murray - Lawn Tractor (1998)

Model: 42537A

Back To Assemblies

Save Part Not Listed?
product name

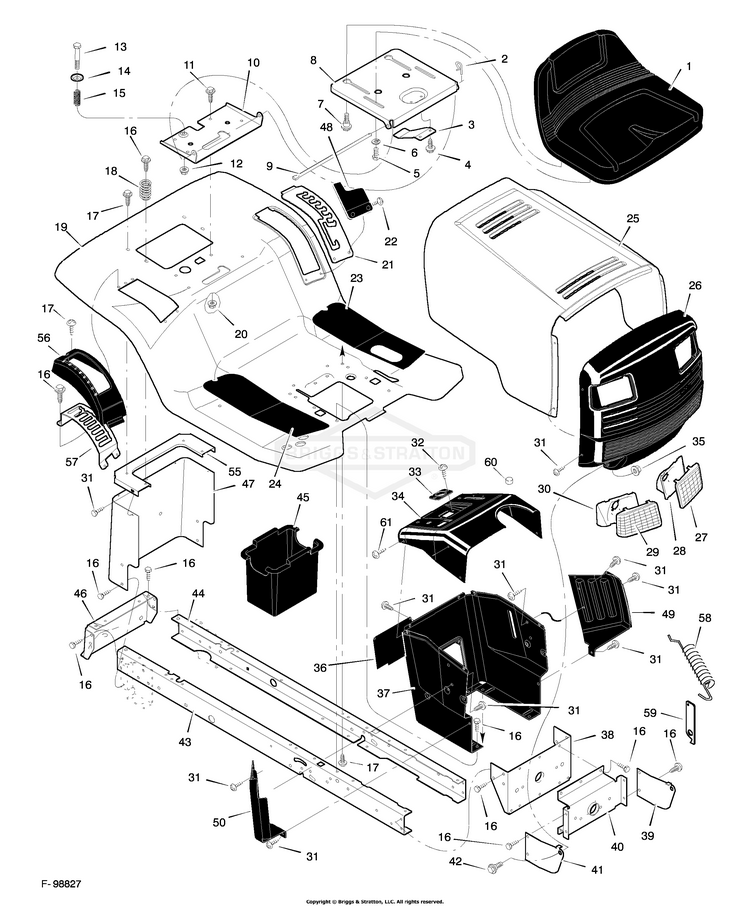

Chassis & Hood

...
...
1
Seat BS-94845
...
2
PUSHNUT, 3/8 BS-703948
...
3
Spring BS-094057MA
...
4
Screw BS-26X229MA
...
5
Bolt, Wing BS-094160
...
6
WASHER, FLAT 5/16 BS-704015
...
7
Bolt, Shoulder BS-009X56MA
...
8
Support, Seat BS-094154E700
...
9
Rod, Pivot BS-094156ZMA
...
10
Bracket, Pivot BS-1001648E701MA
...
11
CAPSCREW,5/16-18X.625 BS-703822
...
12
NUT .25-20 FLANGELOCK BS-015X89MA
...
13
Bolt, Shoulder BS-009X55MA
...
14
Washer BS-094155 Z
...
15
SPRING, Compression BS-164X31MA
...
16
Screw BS-26X249MA
...
17
SCREW.25-20 S-T BS-26X263MA
...
18
Spring BS-164X30MA
...
19
Deck, Seat BS-94845E276
...
20
NUT, HEX FLNG,5/16-18 BS-704067
...
21
Plate, Index BS-094194E701MA
...
22
Screw BS-009X47MA
...
23
Mat, Left BS-094453
...
24
Mat, Right BS-094454
...
25
Hood BS-094090E276
...
26
Grille BS-094087E701MA
...
27
Lens, Left BS-094093MA
...
28
Bezel, Left BS-094089 Z
...
29
Lens, Right BS-094092MA
...
30
Bezel, Right BS-094088 Z
...
31
SCREW, Thread Forming BS-26X270MA
...
32
Screw BS-26X238MA
...
33
Bearing, Steering BS-094075
...
34
Dash BS-094589E700
...
35
NUT, CNTR LCK, 3/8-16 BS-703893
...
36
Panel, Access BS-093007E701MA
...
37
SUPPORT, DASH BS-7300872BMYP
...
38
Bracket, Rear Hanger BS-1001270E701MA
...
39
Support, Left Grille BS-094085E701MA
...
40
Axle, Hanger BS-094007E701MA
...
41
Support, Right Grille BS-094084E701MA
...
42
BOLT, SHOULDER BS-702315
...
43
Frame, Right BS-94000E700
...
44
Frame, Left BS-94001E700
...
45
Container, Battery BS-094069
...
46
Plate, Hitch BS-1001002E701
...
47
Panel, Rear BS-094187E700
...
48
Cover, Level Adjustment BS-094680MA
...
49
Panel, Left Side BS-95218E700
...
50
Panel, Right Side BS-95217E700
...
55
Plate, Rear BS-094186E700
...
56
Cover, Shift Gate BS-094470
...
57
Shift Gate BS-94476
...
58
Extension, Spring BS-165X124MA
...
59
Bracket BS-094830 Z
...
60
Bumper BS-094744
...
61
Screw BS-26X201MA
...
--
Decal, Right Hood BS-44X7820
...
--
Decal, Left Hood BS-44X7821
...
--
Decal, Warning BS-44X7325MA
...
--
Book, Instruction BS-F-98826
...
--
Parts List BS-F-98827
