42534x25A Murray - Lawn Tractor (1997)

Model: 42534x25A

Back To Assemblies

Save Part Not Listed?
product name

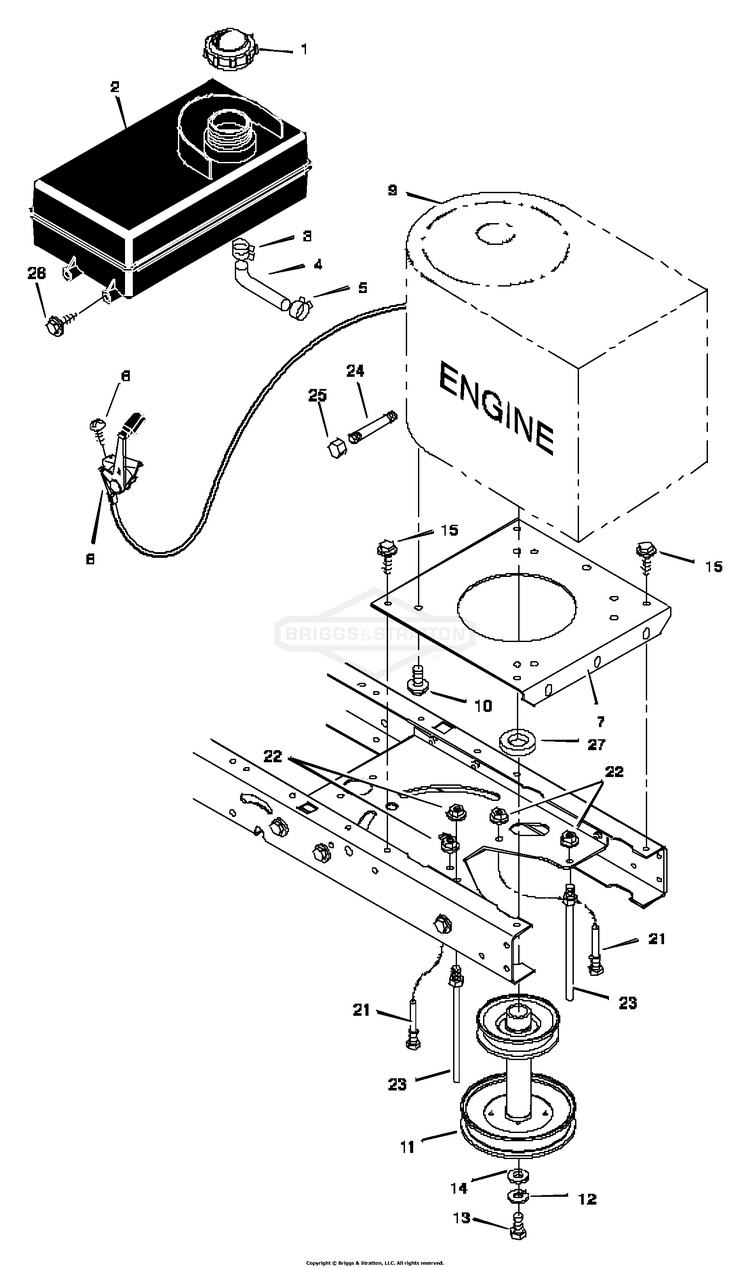

Engine Mount

...
...
1
FUEL CAP BS-092317MA
...
2
TANK, Fuel 1.4 Gal. BS-7601092MA
...
3
Hose Clamp BS-091174
...
4
Fuel Line BS-023717
...
5
Hose Clamp BS-091174
...
6
Screw BS-26X201MA
...
7
Plate, Engine BS-94006E701
...
8
Throttle Control BS-091989
...
10
SCREW-HEX WSHR HD TAP BS-2828635SM
...
11
Stack Pulley Assembly BS-094139 Z
...
12
Lockwasher BS-019X35MA
...
13
Bolt, Hex BS-01X140MA
...
14
WASHER.46.97.25 FLAT BS-17X170MA
...
15
Screw BS-26X249MA
...
21
Guide, Belt BS-93349 Z
...
22
NUT, 5/16-18, GR5 BS-703409
...
23
Guide, Belt BS-94066 Z
...
24
Cap, Oil Drain BS-021651
...
25
Pipe, Oil Drain BS-024066
...
26
Screw BS-26X253MA
...
27
Spacer BS-093077MA
