42516x92B Murray - Lawn Tractor (2001)

Model: 42516x92B

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

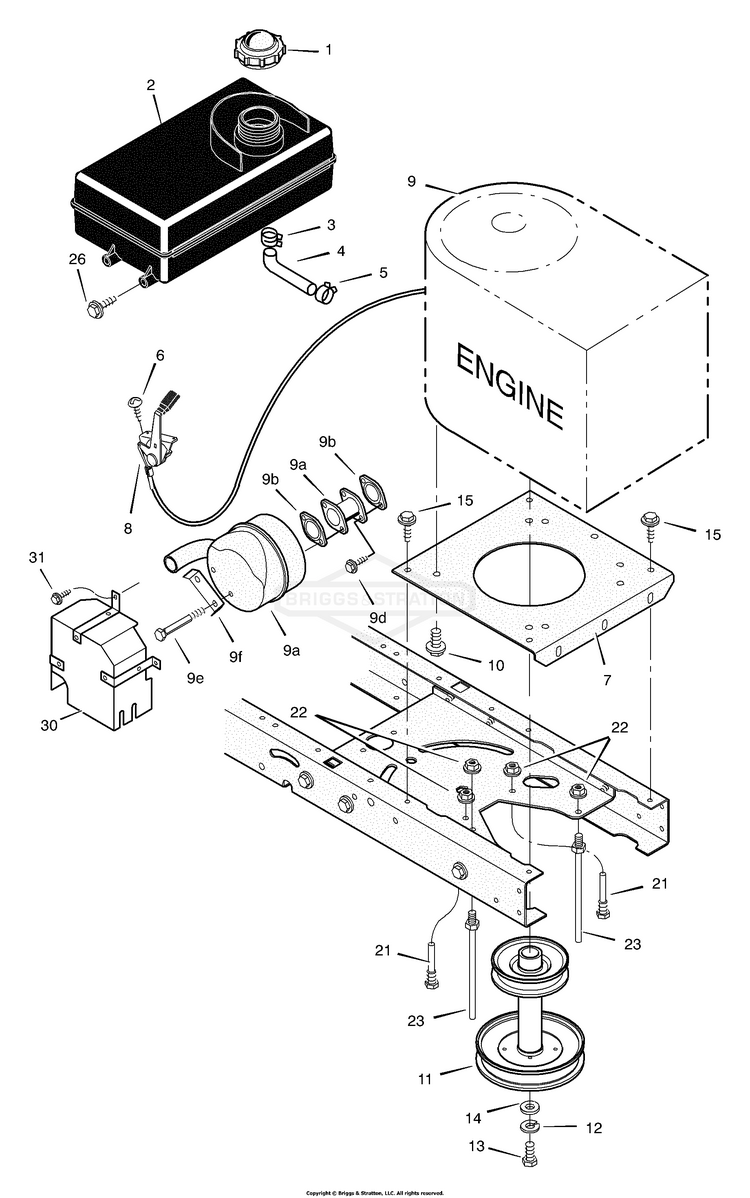

Engine Mount

...
...
1
WASHER BS-691077
...
2
SCREW BS-691002
...
3
Hose Clamp BS-95197
...
4
Fuel Line BS-23717
...
5
Hose Clamp BS-95197
...
6
Screw BS-26X201MA
...
7
Plate, Engine BS-94006E700
...
8
Throttle Control BS-91989
...
9a
Muffler BS-690436MA
...
9b
(C) CLEVIS PIN, 3/16X BS-7091309YP
...
9c
Adapter, Muffler BS-95207
...
9d
Screw, Adapter BS-06X103MA
...
9e
Bolt, Muffler BS-009X59MA
...
9f
Lock, Screw BS-92378
...
10
SCREW-HEX WSHR HD TAP BS-2828635SM
...
11
STK PULLEY 38-42 IN R BS-690439MA
...
12
Lockwasher BS-019X35MA
...
13
Bolt, Hex BS-01X140MA
...
14
WASHER.46.97.25 FLAT BS-17X170MA
...
15
Screw BS-26X249MA
...
21
Guide, Belt BS-93349
...
22
Nut, Flange BS-015X79 Z
...
23
Guide, Belt BS-94781
...
26
Screw BS-26X253MA
...
30
TUBE, FILTER, GNRL BS-92550GS
...
31
SCREW.25-20 S-T BS-26X263MA
