42502x8C Murray - Lawn Tractor (2000)

Model: 42502x8C

Back To Assemblies

Save Part Not Listed?
product name

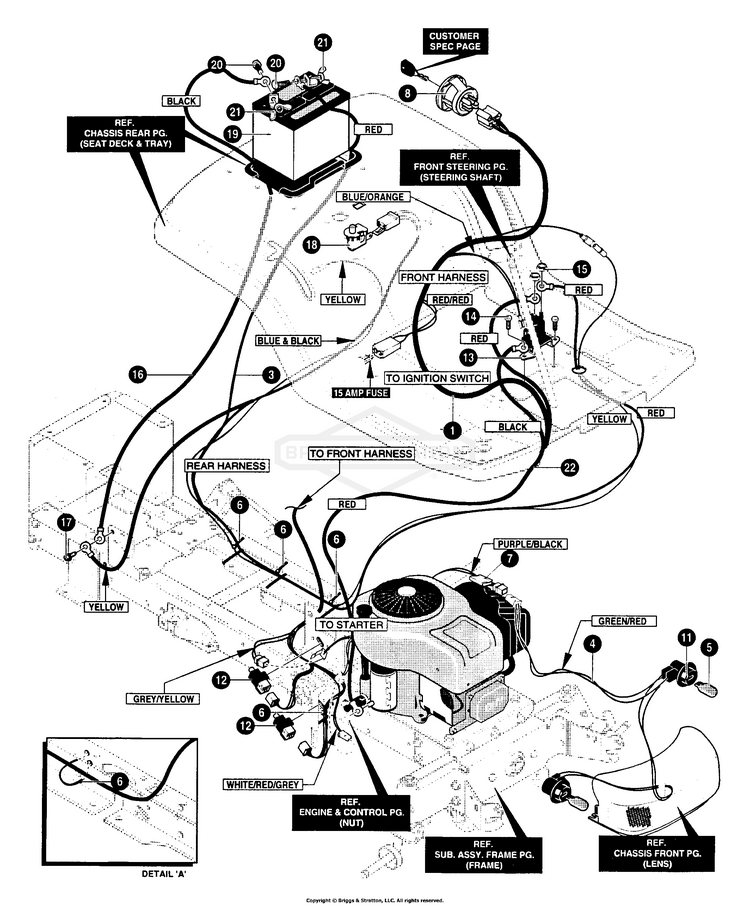

Electrical System

...
...
1
HARNESS, 17HP INTEK BS-95201
...
3
WIRE HARNESS, REAR BS-340530
...
4
WIRE HARNESS, HEADLIGHTS BS-340513
...
5
BULB-HEADLIGHT 1 BS-1677371SM
...
6
TIE, CABLE BLACK NYLON 5.62L BS-57444
...
7
WIRE CLIP ADHESIVE BS-055939MA
...
8
SWITCH, IGNITION DELTA 7 TERM BS-094762
...
9
KEY-IGNITIOM W/PLASTI BS-1714054SM
...
11
SOCKET, LAMP BS-092372
...
12
SWITCH LIMIT DELTA BS-094136MA
...
13
SOLENOID BS-094613
...
14
SCREW,HHWATAP 1/4X.50 BS-711619
...
15
NUT, 1/4-20 HEXNYL 15X116 BS-711632
...
16
WIRE, GROUND (24X32) BS-710228
...
17
SCREW, HHWATAP 1/4 X.50 BS-711619
...
18
SWITCH, SEAT BS-7023354YP
...
19
BATTERY 6 PLATE BS-092693
...
20
PIN, HAIR BS-711682
...
21
NUT, WING 1/4-20 NC (14X79) BS-711636
...
22
WIRE, LEAD SOLENOID TO STARTER 1 BS-711579
...
--
FUSE, 15 AMP BS-302031MA
