42502x8C Murray - Lawn Tractor (2000)

Model: 42502x8C

Back To Assemblies

Save Part Not Listed?
product name

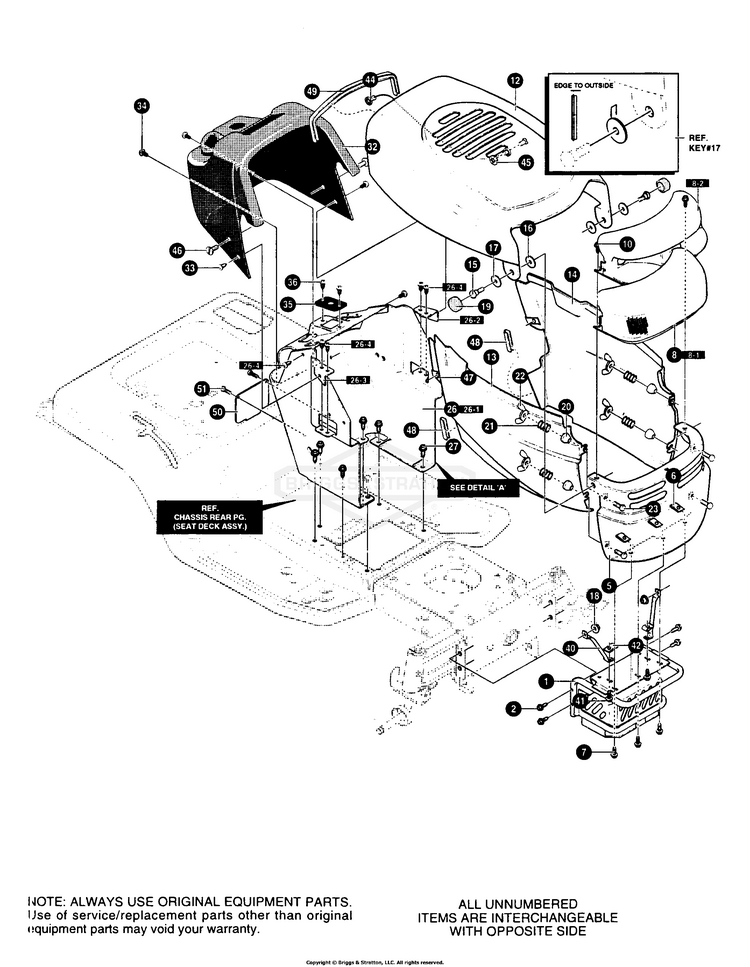

Front Chassis Assembly

...
...
1
WELD. ASM. COMMON BUMP/GRIL MNT BS-94529-821
...
2
SCREW 5/16-18X1.50 HHWATAP BS-711653
...
5
GRILLE BS-94455-898
...
6
NUT, "J" TINNERMAN #C702-14202 BS-710313
...
7
SCREW.25-20 S-T BS-26X263MA
...
8
PIN, DETENT, W/LANYARD BS-95234GS
...
8-1
LENS BS-94459
...
8-2
REFLECTOR BS-94460
...
10
SCREW, 1/4-14X.50 PANCR BS-710197
...
12
WELD ASSEMBLY HOOD BS-690052-898
...
13
PANEL, SIDE RH BS-94458-898
...
14
PANEL, SIDE LH BS-94457-898
...
15
BOLT, .497X.215HHSH 3/8-16 BS-711625
...
16
WASHER, PLASTIC BS-710067
...
17
PIVOT BASE BS-094472
...
18
NUT, 3/8-16 HWDFLLK MACK 15X84 BS-711622
...
19
CAP, PIVOT BS-94471MA
...
20
QUICK RELEASE-CAM BS-094474
...
21
SEAT DECK, LARGE BS-94628
...
22
NUT, WING 1/4-20 NYLON BS-325232MA
...
23
BOLT, 1/4-20 X 1-1/4" BS-5025010X10SM
...
26
CONSOLE ASSY BS-95291-898
...
26-1
CONSOLE DASH MAN PTO BS-095173
...
26-2
BRACKET, HOME DEPOT LH BS-094465
...
26-3
BRACKET, HOME DEPOT RH BS-094464
...
26-4
SCREW, 10-24X.500 SEGI BS-710196
...
27
SCREW 5/16-18HHWATAP BS-711606MA
...
32
DASH BS-690009
...
33
SCREW 10-24X.500TRSEGI BS-711629
...
34
SCREW 10-24X.500TRSEGI BS-711629
...
35
BRACKET, STEERING BS-094075
...
36
SCREW, 1/4-14X.50 PANCR BS-710197
...
40
STRUT, GRILLE BS-94519-898
...
41
SCREW.25-20 S-T BS-26X263MA
...
42
SPEED NUT BS-710979
...
44
LANYARD, HOOD BS-643129
...
45
PUSHNUT BS-711677
...
46
SCREW, 1/4-20X.63 PHPNHD BS-711674MA
...
47
NUT, "J" TINNERMAN #C702-14202 BS-710313
...
48
TRIM, PIECE PLASTIC (2 required) BS-779022
...
49
TRIM, PIECE PLASTIC BS-779024
...
50
ACCESS PANEL W/O SLOT BS-93007-898
...
51
SCREW 10-24X.500TRSEGI BS-711629
...
--
OWNER'S MANUAL BS-713013
