42502x8C Murray - Lawn Tractor (2000)

Model: 42502x8C

Save Part Not Listed?

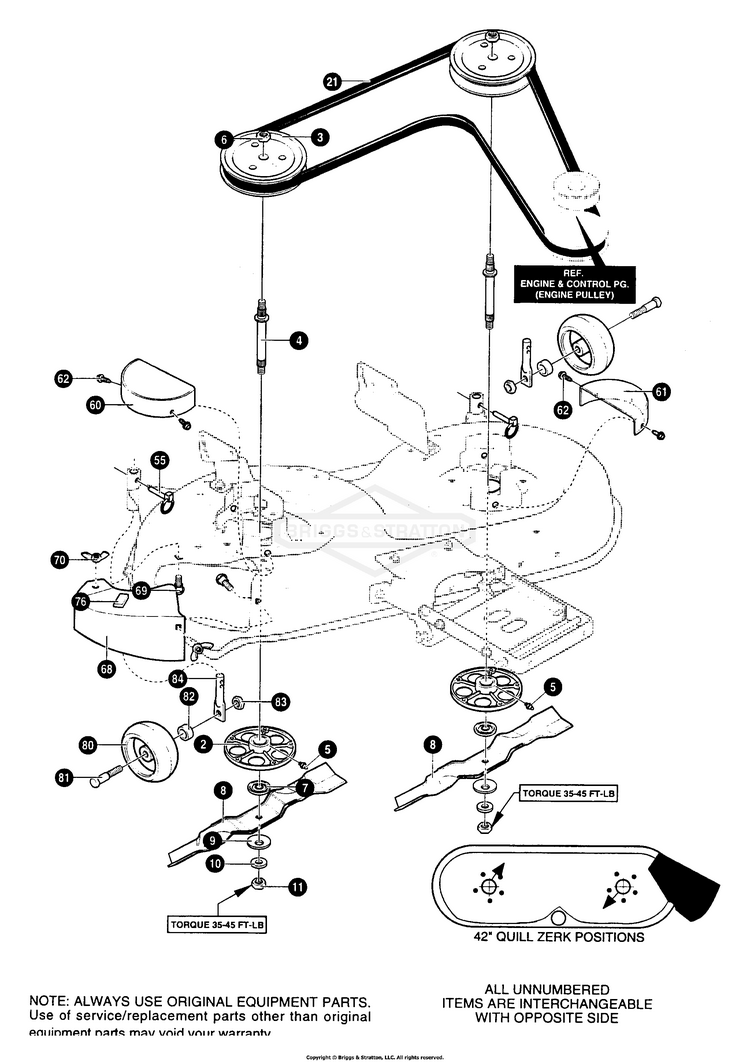

Deck Assembly (part 2)

ASM., JACKSHAFT HOUSING 42" BS-690488MA

PULLEY, 42" INPUT BS-95308MA

JACKSHAFT 7.12LG BS-095402

ZERK, GREASE FITTING BS-706

NUT, 9/16-18 UNF-213 (15X121) Z BS-711626

ADAPTER, BLADE BS-690487MA

42" BLADE, 3 N 1 BS-95100

WASHER, BELLVILLE BS-710118

WASHER, FLAT .625X1.00X.188 Z BS-710117

HOUSING, Blower BS-715213

BELT, 42" DECK (37X88) BS-710213

PIN, DETENT RING.312X1.12 BS-711797MA

GUARD, Belt R.H. BS-94669E701MA

GUARD-BELT LH BS-094668E701MA

SCREW.25-20 S-T BS-26X263MA

COVER, DISCHARGE BS-95080

BOLT, 5/16-18 X 3/4", BS-5025145X6SM

NUT, WING 5/16-18 SERR BLK BS-711604

ADHESIVE PAD 1.00X1.50X12 BS-318197

WHEEL GAUGE BS-092265MA

BOLT, .500X3.275 HHSH 3/8-16 BS-711657MA

SPACER, SLEEVE .515X1.00X.700 BS-95188MA

NUT, HEX, 3/8-16 BS-703996

ROD, GAGE SHORT BS-95187-821
