42502x8C Murray - Lawn Tractor (2000)

Model: 42502x8C

Save Part Not Listed?

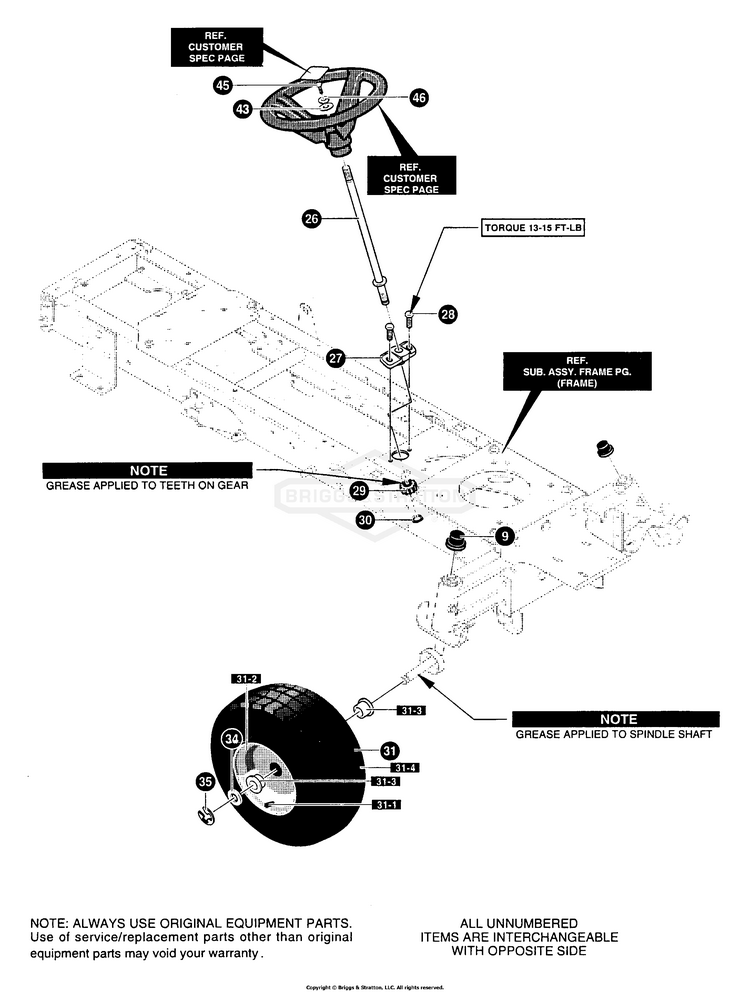

Steering Assembly

HUB CAP BS-094618MA

SHAFT, STEERING BS-094520

BEARING-LOWER BS-094124MA

SCREW, 5/16-18 x.0.50 HHWATAPSGIBP BS-711606MA

GEAR PINNION BS-094122

RING, RET E.54ID.59SH (11X25) BS-710102

TIRE & RIM 15X6-6 BS-692639

31-1

VALVE STEM BS-338512

31-2

RIM, CARLISLE BS-338517MA

31-3

BEARING BS-338513

31-4

TIRE, 15X6X6 BS-338515

WASHER, FLAT .765 x 1.81 x .059 BS-711758

"E" RING .574IDX.050/.750SH (11x3) BS-710103

FLATWASHER .281 X1.25X.06 BS-711720MA

SCREW, 1/4-20X. BS-711719

WASHER (18X32) BS-710249
