42502x8C Murray - Lawn Tractor (2000)

Model: 42502x8C

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

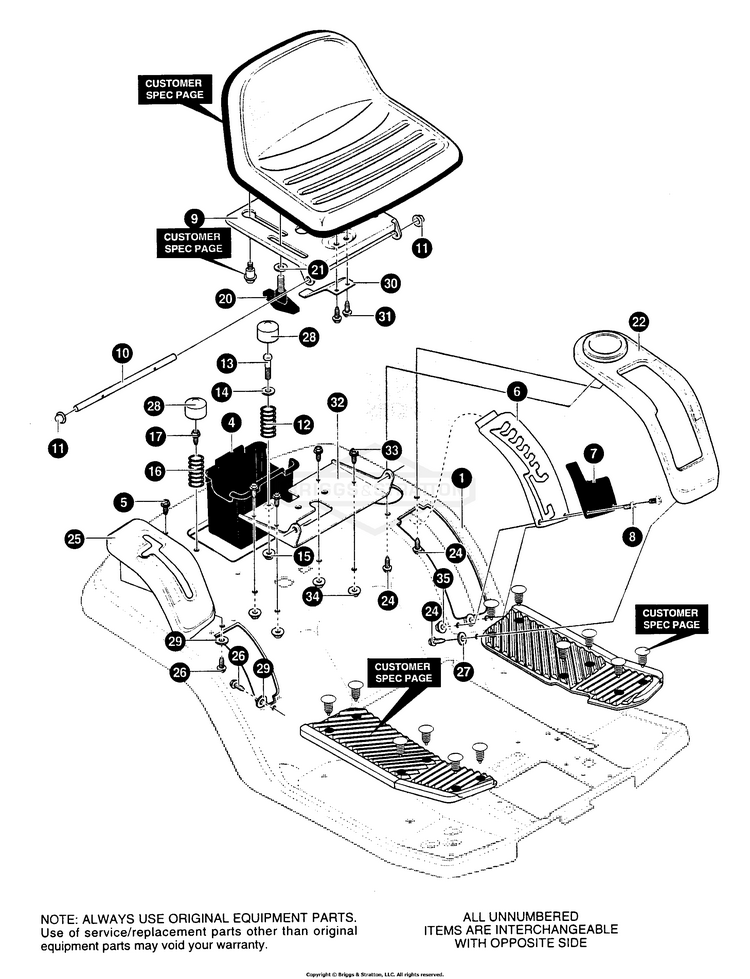

Rear Chassis Assembly

...
...
1
SEAT DECK BS-94628-898
...
4
CONTAINER, BATTERY BS-690424MA
...
5
SCREW.25-20 S-T BS-26X263MA
...
6
PLATE, LIFT DETENT LG. BS-94194-821
...
7
COVER, LIFT DETENT BS-094492
...
8
SCREW,.230X.135 PPANTAP10-32B BS-711679
...
9
SUPPORT, SEAT BS-94154-898
...
10
HINGE SEAT PIVOT BS-95294
...
11
NUT, PUSH CAP.375 (28X23) BS-711627MA
...
12
SPRING, COMPRESS 4.57LGX1.17 BS-710136
...
13
BOLT, SHOULDER 1/4-20 NC-2A (9X55) BS-711610
...
14
WASHER CUP ZINC BS-95293
...
15
NUT, 1/4-20 WDFLLK BS-302635
...
16
SPRING, COMPRESS 1.43LG 164X30 BS-710109
...
17
SCREW 5/16-18X.75 HHWATAPSGIB BS-711606MA
...
20
BOLT, WING 5/16-18X.50 LG THRD BS-711747MA
...
21
WASHER, FLAT .344X.62X.06 BS-711644MA
...
22
COVER,DETENT PLATE BS-094491
...
24
SCREW, 1/4-15X.44/.53 HILOHHWA BS-711671MA
...
25
COVER, MST SHIFT BS-094494
...
26
SCREW, 1/4-15X.44/.53 HILOHHWA BS-711671MA
...
27
WASHER BS-703332
...
28
CAP, HUB/SEAT SPRING BS-020107MA
...
29
WASHER BS-703332
...
30
SPRING - LEAF BS-094057MA
...
31
SCREW 1/4-20X.50 WAHHTAP BS-711592
...
32
BRACKET, PIVOT SEAT BS-94153-898
...
33
SCREW, 5/16-18 x .75 HHWATAP BS-711606MA
...
34
SCREW, 10-24X.500TRSEGI BS-711634MA
...
35
NUT, #10-32 CTRLK B BS-314159MA
