425009x8A Murray - Lawn Tractor (2002)

Model: 425009x8A

Back To Assemblies

Save Part Not Listed?
product name

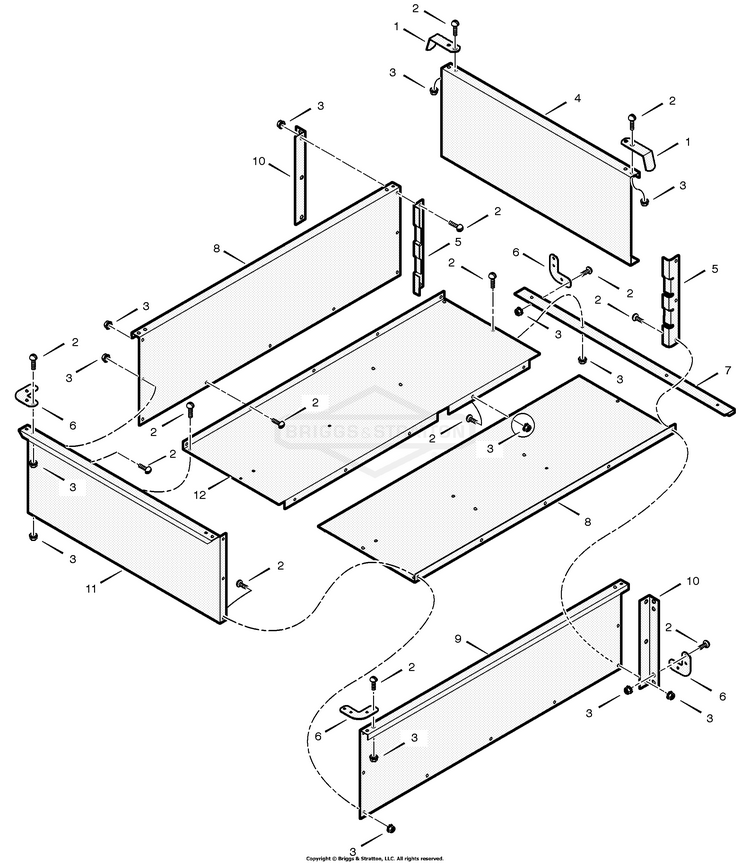

Utility Dump Cart (part 2)

...
...
1
Support, Side BS-1001476E701MA
...
2
Screw 1/4-20x0.50 BS-004X24MA
...
3
NUT, HEX, KEPS,1/4-20 BS-703914
...
4
Tailgate (Black) BS-1101469E701
...
5
Retainer, Tailgate BS-1001474E701MA
...
6
Bracket, Corner BS-1001477E701MA
...
7
Brace, Rear BS-1001475E701
...
8
Bottom, Right BS-1001470E701
...
9
Panel, Side (Black) BS-1001467E701
...
10
Support, Side BS-1001478E701MA
...
11
Panel, Front BS-1001468E701
...
12
Bottom, Left BS-1001471E701
