425009x31A Murray - Lawn Tractor (2002)

Model: 425009x31A

Back To Assemblies

Save Part Not Listed?
product name

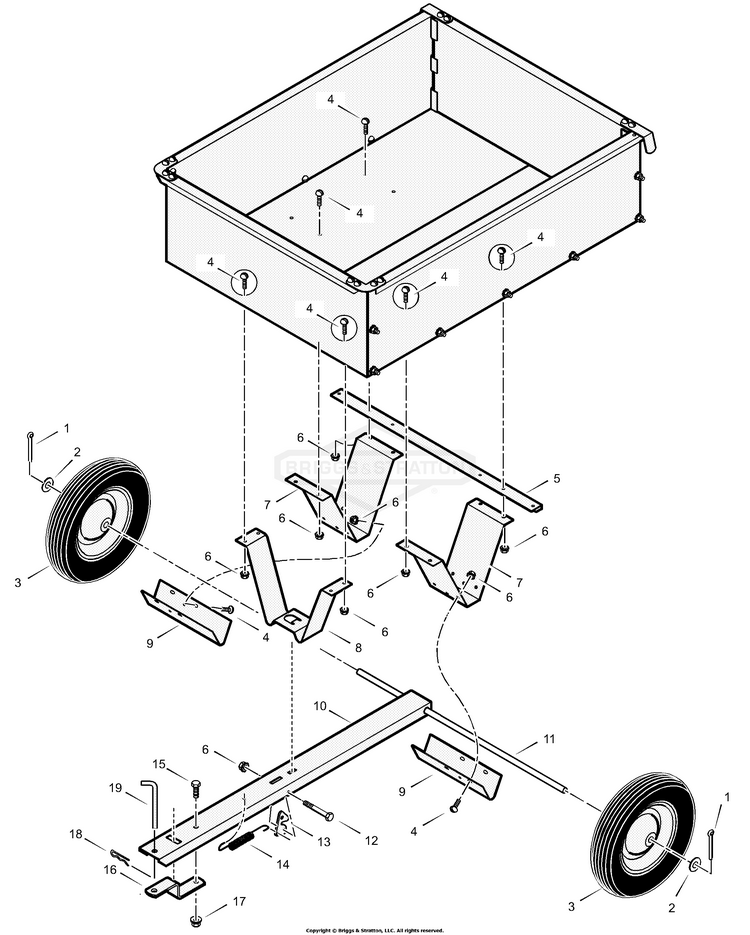

Utility Dump Cart (part 2)

...
...
1
Pin, Cotter BS-030X49MA
...
2
Washer BS-17X197MA
...
3
Wheel BS-1001488MA
...
4
Screw 14-20x0.50 BS-004X24MA
...
5
Support, Bottom BS-1001472E701
...
6
NUT, HEX, KEPS,1/4-20 BS-703914
...
7
Support, Axle BS-1001466E701MA
...
8
Support, Tongue BS-1001465E701
...
9
Retainer, Axle BS-1001481E701MA
...
10
Tongue (Black) BS-1001464E701
...
11
Axle BS-1001473MA
...
12
Bolt, Hex 1/4-20x3.25 BS-01X117
...
13
Latch BS-1001480E701MA
...
14
Spring BS-165X75MA
...
15
BOLT, 3/8-16 X 3/4" G BS-5025013X6SM
...
16
Hitch BS-1001479E701MA
...
17
NUT, CNTR LCK, 3/8-16 BS-703893
...
18
PIN, 3/32 X 1.6 BS-703300
...
19
Pin, Drawbar BS-1001489 Z
...
--
Book, Instruction BS-F-020903L
...
--
Decal, Warning BS-48X1101
