product name

425003x8A Murray - Lawn Tractor (2000)

Model: 425003x8A

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?

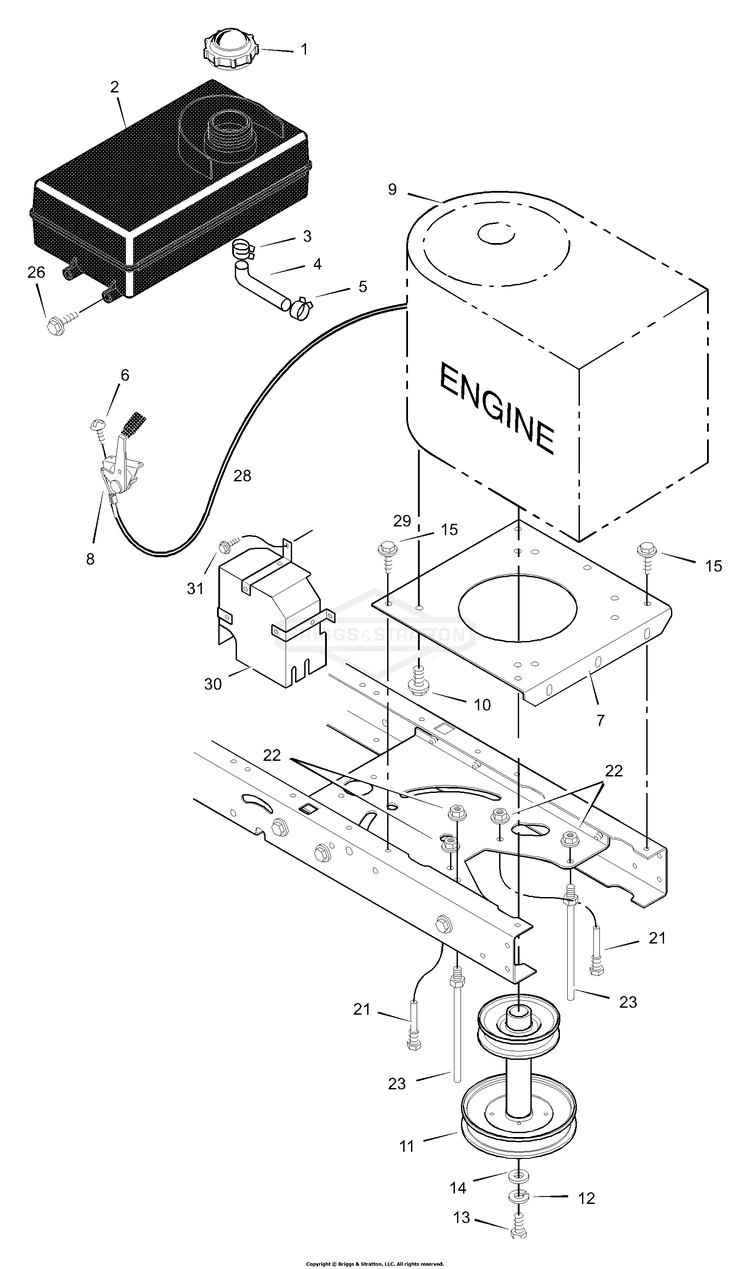

product name

Engine Mount

...
...
1
FUEL CAP BS-092317MA
...
2
TANK, Fuel 1.4 Gal. BS-7601092MA
...
3
CLAMP, Hose BS-791850
...
4
Fuel Line BS-023717
...
5
CLAMP, Hose BS-791850
...
6
Screw BS-26X201MA
...
7
Plate, Engine BS-094006E700
...
8
Throttle Control BS-091989
...
--
Muffler BS-690436MA
...
--
GASKET, Exhaust BS-692236
...
--
ADAPTER, Muffler BS-796002
...
--
Screw, Adapter BS-06X103MA
...
--
Bolt, Muffler BS-009X59MA
...
--
LOCK-SCREW 223016 BS-092378MA
...
10
SCREW-HEX WSHR HD TAP BS-2828635SM
...
11
STK PULLEY 38-42 IN R BS-690439MA
...
12
Lockwasher BS-019X35MA
...
13
Bolt, Hex BS-01X140MA
...
14
WASHER.46.97.25 FLAT BS-17X170MA
...
15
Screw BS-26X249MA
...
21
GUIDE SCREW - ZINC BS-093349MA
...
22
NUT, 5/16-18, GR5 BS-703409
...
23
Guide, Belt BS-094781MA
...
26
Screw BS-26X253MA
...
30
Shield, Heat BS-092550MA
...
31
SCREW.25-20 S-T BS-26X263MA
...
...
...
