425002x99B Murray - Lawn Tractor (2004)

Model: 425002x99B

Back To Assemblies

Save Part Not Listed?
product name

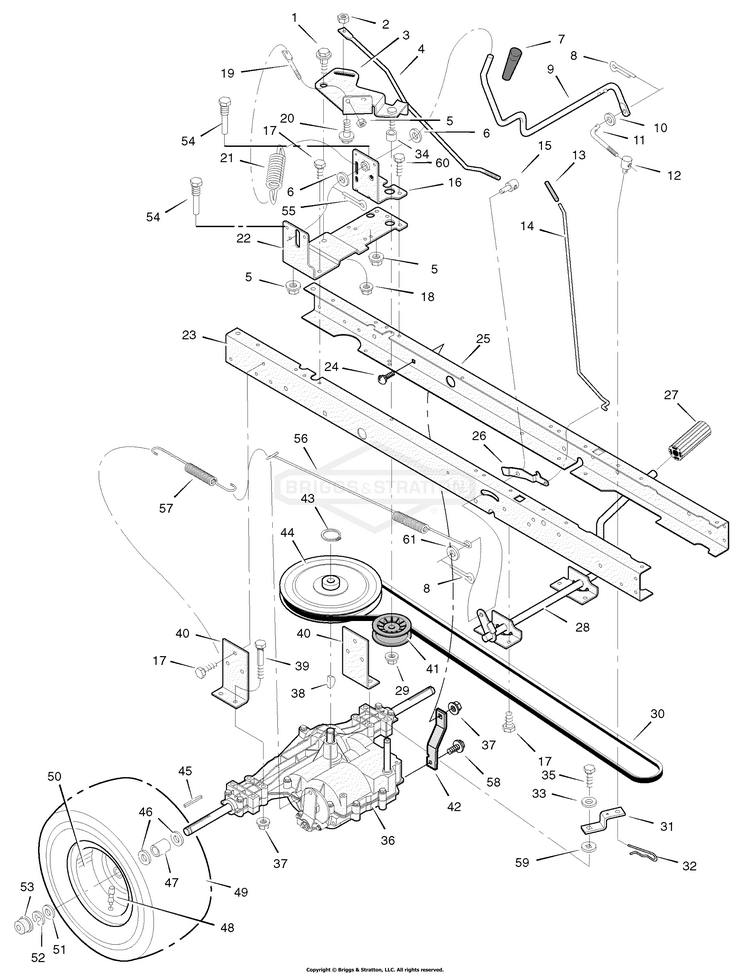

Motion Drive

...
...
1
Bolt, Shoulder BS-009X39
...
2
NUT .25-20 FLANGELOCK BS-015X89MA
...
3
ARM, Idler BS-690173ZMA
...
4
Rod, Clutch BS-094041 Z
...
5
Nut BS-015X79
...
6
WASHER BS-703128
...
7
Grip BS-92697
...
8
PIN, COTTER, 3/32X.75 BS-703312
...
9
Lever, Shift BS-094043 Z
...
10
WASHER, FLAT 5/16 BS-704015
...
11
Link, Shift BS-094044ZMA
...
12
Nut, Adjuster BS-21920
...
13
NUT, HEX FLNG, 10-24 BS-703917
...
14
Rod, Parking Brake BS-1001245 Z
...
15
Nut, Adjuster BS-94815
...
16
Bracket, Shift Pivot BS-1001303 Z
...
17
CAPSCREW, 5/16-18 BS-26X249MA
...
18
NUT, CNTR LCK, 3/8-16 BS-703893
...
19
Mount, Stud Spring BS-094042ZMA
...
20
Bolt, Shoulder BS-009X54
...
21
Spring, Extension BS-165X116
...
22
Bracket, Right Shifter BS-1001302E700
...
23
Frame, Right BS-1001268E701
...
24
BOLT BS-703159
...
25
Frame, Left BS-1001269E701
...
26
Latch, Parking Brake BS-094045 Z
...
27
Pedal BS-21544
...
28
Lever, Brake/Clutch BS-94038E700
...
29
NUT, CNTR LCK, 3/8-16 BS-703893
...
30
Belt, Motion Drive BS-037X87
...
31
Yoke, Shift BS-1001825 YZ
...
32
PIN, 3/32 X 1.6 BS-703300
...
33
WASHER, Flat, 3/4 BS-017X38MA
...
34
SCREW BS-690369
...
35
Bolt BS-06X105MA
...
37
NUT, HEX FLNG,5/16-18 BS-704067
...
38
Key, Woodruff BS-20697
...
39
SCREW BS-703868
...
40
Bracket, Transaxle BS-094008E701
...
41
Pulley BS-690409
...
42
STRAP, TRANSAXLE, LH BS-7300845BMYP
...
43
E-Ring BS-0011X7
...
44
Pulley, Drive BS-95094
...
45
Key, Square BS-21553
...
46
WASHER, Flat, 1-1/4 BS-17X160MA
...
47
SPACER, Rear Wheel BS-1401103MA
...
48
Stem, Valve BS-24373
...
49
Tire * BS-91923
...
--
Tube BS-407049
...
50
Wheel & Tire Assembly BS-092290601
...
51
WASHER, Flat 1-3/4 BS-17X195MA
...
52
RING, E .750D .050T BS-0011X3MA
...
53
Hub Cap BS-94618
...
54
Guide, Belt BS-93349
...
55
PIN, 3/32 X 1.6 BS-703300
...
56
Spring, Extension BS-165X115
...
57
SPRING, Extension BS-165X92MA
...
58
Screw BS-26X216MA
...
59
Washer BS-17X148MA
...
60
SCREW, 5/16-18 BS-26X267MA
...
61
Washer BS-17X169
