422445-1290-01 Briggs and Stratton Engine

Model: 422445-1290-01

Back To Assemblies

Save
Part Not Listed?Part Not Listed?

product name

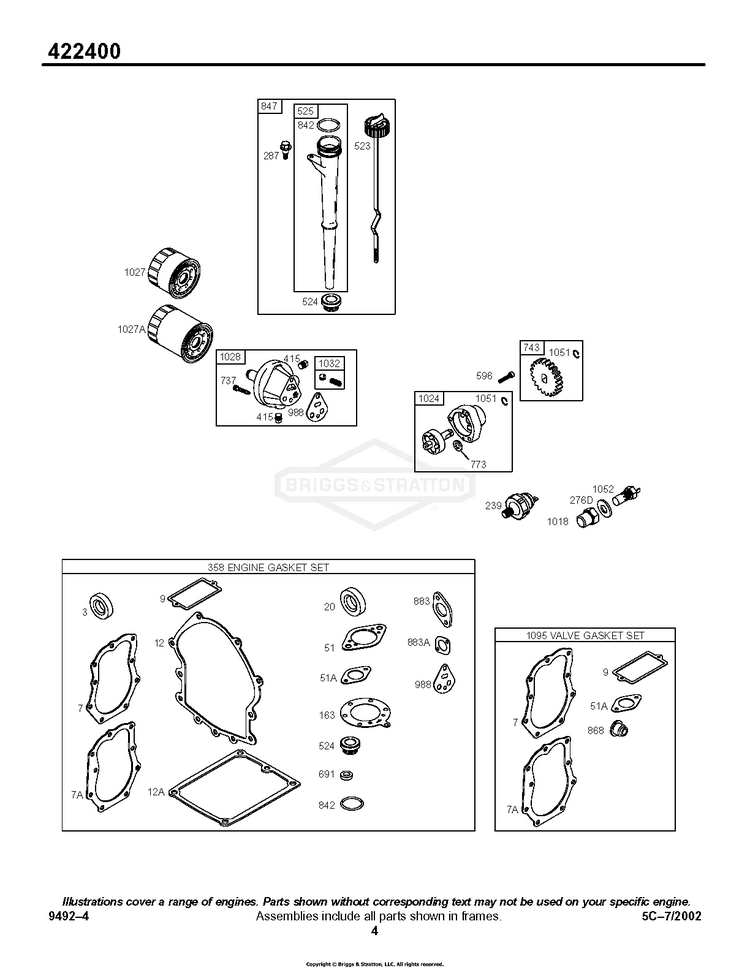

Kit/Gasket Sets - Engine, Kit/Gasket Sets - Valve, Oil

...
...
239
SWITCH, Oil Pressure BS-491657S

...
276D
WASHER, Sealing (Oil Sensor) BS-690579

...
287
SCREW (Dipstick Tube) BS-691130

...
358
GASKET SET, Engine BS-495868

...
523
DIPSTICK BS-691385

...
524
SEAL-DIPSTICK TUBE (Dipstick Tube) BS-281370S

...
525
TUBE, Dipstick BS-691389

...
596
SCREW (Oil Pump) BS-690333

...
737
SCREW (Oil Filter Adapter) BS-690332

...
743
GEAR, Drive (Oil Pump) BS-491801

...
773
RETAINER BS-692332

...
842
SEAL, O-Ring (Dipstick Tube) BS-691870

...
847
DIPSTICK/TUBE ASSY BS-690651

...
988
GASKET, Oil Adapter BS-691313

...
1018
CAP, Oil Sensor BS-690519

...
1024
PUMP, Oil BS-491708

...
1027
FILTER, Oil BS-492932S

...
1027A
FILTER-OIL (3-1/4) Used Before Code Date 95060500 BS-491056

...
1028
ADAPTER, Oil Filter BS-491721

...
1032
SPRING, Compression BS-491710

...
1051
RING, Retaining BS-690337

...
1052
SENSOR, Oil BS-490916

...
1095
GASKET SET, Valve BS-498047
...
...
...
