422445-1290-01 Briggs and Stratton Engine

Model: 422445-1290-01

Back To Assemblies

Save
Part Not Listed?Part Not Listed?

product name

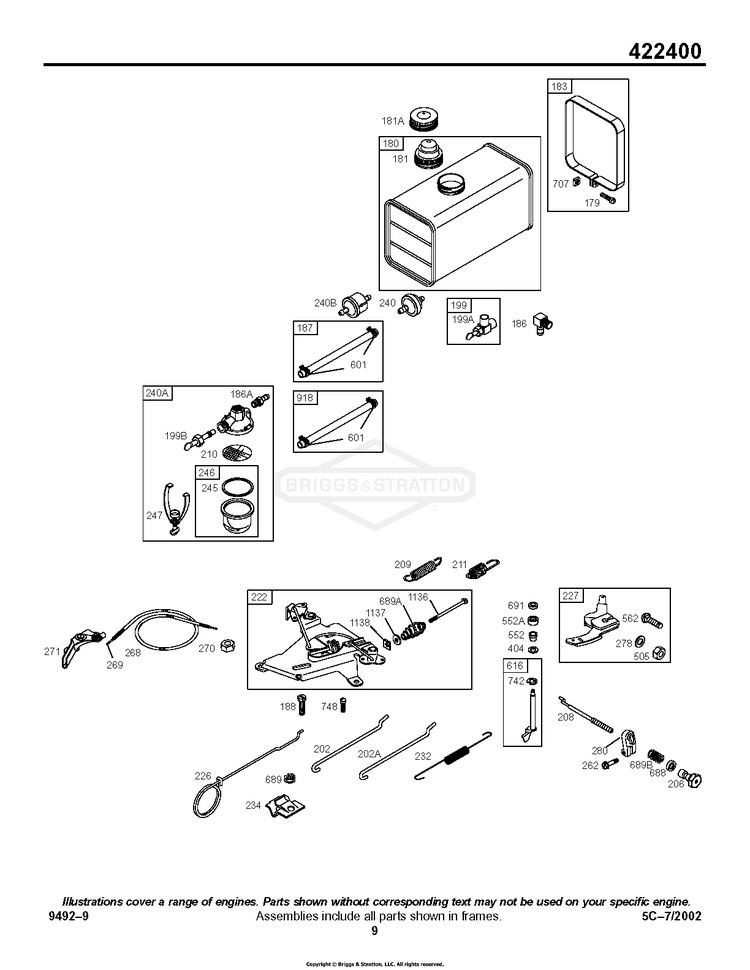

Controls, Fuel Tank

...
...
179
SCREW (Fuel Tank Strap) BS-690280

...
180
TANK, Fuel (Metal) (6 Quart) BS-291488

...
180
TANK, Fuel (Metal) (8 Quart) BS-292415

...
181A
CAP-FUEL TANK (Metal) BS-791545

...
186
CONNECTOR, Hose BS-691609

...
186A
CONNECTOR-HOSE (Pulse Line) BS-691764

...
187
LINE, Fuel (Cut To Required Length) BS-791766

...
188
SCREW (Control Bracket) BS-691003

...
199
VALVE-FUEL SHUT OFF(M (Metal) BS-592840

...
199A
VALVE-FUEL SHUT OFF(M (Metal) BS-592840

...
199B
FILTER-FUEL (Metal) BS-690612

...
202
LINK, Mechanical Governor (Used On 4 Screw Fuel Pump Mount Carburetors) BS-693543

...
202A
LINK, Mechanical Governor (Used On 3 Screw Fuel Pump Mount Carburetors) BS-690554

...
206
NUT, Governor Adjusting BS-691244

...
208
ROD, Governor Control BS-690566

...
209
SPRING, Governor (Yellow) BS-690561

...
210
STRAINER, Fuel BS-691962

...
211
SPRING, Governed Idle BS-691807

...
222
BRACKET, Control BS-691366

...
226
ROD, Choke BS-690544

...
227
LEVER-GOV CONTROL BS-690763

...
232
SPRING/LINK, Governor BS-690556

...
234
CLIP, Control Rod BS-691723

...
240
FILTER, Fuel (White, 75 Microns) BS-394358S

...
240A
FILTER-FUEL (Glass Bowl) BS-690612

...
240B
FILTER, Fuel (Includes Paper Element With A 40 Micron Rating) BS-84001895

...
245
GASKET, Fuel Bowl BS-692190

...
246
BOWL, Fuel Filter BS-298683

...
247
YOKE, Bowl BS-691700

...
262
SCREW (Rod Bracket) BS-690316

...
268
CASING, Control Wire (Cut To Required Length) BS-691025

...
269
WIRE, Control (Cut To Required Length) BS-26634

...
270
NUT (Control Wire Casing) BS-691027

...
271
LEVER, Control BS-691028

...
278
WASHER (Governor Lever) BS-692810

...
280
BRACKET, Rod BS-690441

...
404
WASHER (Governor Crank) BS-690442

...
505
NUT (Governor Control Lever) BS-691029

...
552
BUSHING, Governor Crank BS-690553

...
552A
BUSHING-GOV CRANK BS-690552

...
562
BOLT (Governor Control Lever) BS-690311

...
601
CLAMP, Hose BS-791850

...
616
CRANK, Governor BS-491530

...
688
CAP, Friction BS-690446

...
689
SPRING, Friction BS-691590

...
689A
SPRING, Friction BS-690555

...
689B
SPRING, Friction BS-691272

...
691
SEAL, Governor Shaft BS-790574

...
707
NUT (Fuel Tank Strap) BS-690279

...
742
RETAINER, E Ring (Governor Crank) BS-690328

...
748
SCREW (Control Rod Clip) BS-690278

...
918
HOSE, Vacuum (Cylinder To Impulse Pump)(Cut To Required Length) BS-791880

...
1136
SCREW (Control Bracket) (High Speed Control) BS-690329

...
1137
WASHER (Control Bracket) (High Speed Control) BS-690390

...
1138
NUT (Control Bracket) (High Speed Control) BS-690330
...
...
...
