422437-1268-01 Briggs and Stratton Engine

Model: 422437-1268-01

Back To Assemblies

Save
Part Not Listed?Part Not Listed?

product name

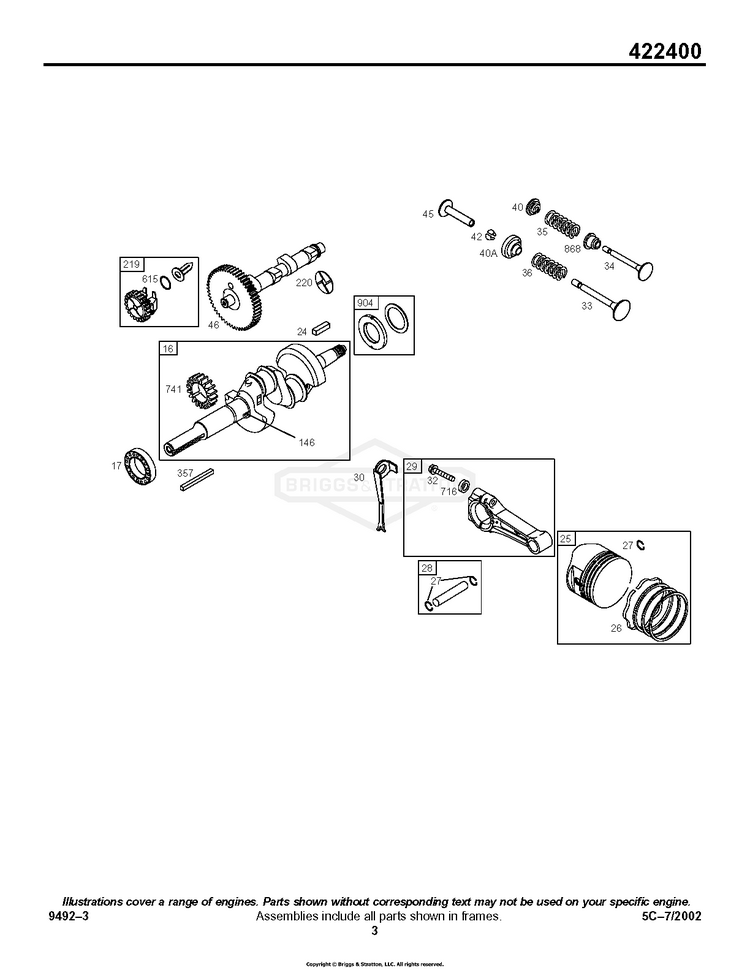

Cam, Crankshaft, Piston, Valves

...
...
16
CRANKSHAFT BS-690639

...
17
BEARING, Ball (PTO Side) BS-691358

...
24
KEY, Flywheel BS-222698S

...
25
PISTON ASSEMBLY (.010 Oversize) Used After Code Date 01040100 BS-696398

...
25
PISTON ASSEMBLY (.020 Oversize) Used After Code Date 01040100 BS-696399

...
25
PISTON ASSEMBLY (.030 Oversize) Used After Code Date 01040100 BS-696400

...
25
PISTON ASSEMBLY (Standard) Used Before Code Date 01040200 BS-498584

...
25
PISTON ASSEMBLY (.010 Oversize) Used Before Code Date 01040200 BS-498585

...
25
PISTON ASSEMBLY (.020 Oversize) Used Before Code Date 01040200 BS-498586

...
25
PISTON ASSEMBLY (.030 Oversize) Used Before Code Date 01040200 BS-498587

...
25
PISTON ASSEMBLY (Standard) Used After Code Date 01040100 BS-696397

...
26
SET, Ring (.020 Oversize) Used After Code Date 01040100 BS-696405

...
26
SET, Ring (.030 Oversize) Used After Code Date 01040100 BS-696406

...
26
SET, Ring (.010 Oversize) Used After Code Date 01040100 BS-696404

...
26
SET, Ring (Standard) Used Before Code Date 01040200 BS-394959

...
26
SET, Ring (.010 Oversize) Used Before Code Date 01040200 BS-394960

...
26
SET, Ring (.020 Oversize) Used Before Code Date 01040200 BS-394961

...
26
SET, Ring (.030 Oversize) Used Before Code Date 01040200 BS-394962

...
26
SET, Ring (Standard) Used After Code Date 01040100 BS-696403

...
27
LOCK, Piston Pin Used After Code Date 95101500 BS-691299

...
28
PIN, Piston (.005 Oversize) Used Before Code Date 95101600 BS-391286

...
28
PIN, Piston (Standard) Used After Code Date 95101500 BS-498319

...
28
PIN, Piston (.005 Oversize) Used After Code Date 95101500 BS-498320

...
28
PIN, Piston (Standard) Used Before Code Date 95101600 BS-299691

...
29
ROD, Connecting (.020 Undersize) BS-397158

...
29
ROD, Connecting (Standard) BS-394306

...
30
DIPPER, Connecting Rod BS-691733

...
32
SCREW (Connecting Rod) BS-691133

...
33
VALVE, Exhaust BS-691794

...
34
SEAT, Valve (Intake) BS-691802

...
34
VALVE-INTAKE BS-691804

...
35
SPRING, Valve (Intake) BS-691605

...
36
SPRING, Valve (Exhaust) BS-691597

...
40
RETAINER, Valve (Intake) BS-690656

...
40A
RETAINER, Valve (Exhaust) BS-691939

...
42
KEEPER, Valve (Exhaust) BS-494553

...
45
TAPPET, Valve BS-691800

...
46
CAMSHAFT BS-691156

...
146
KEY, Woodruff BS-691639

...
219
GEAR, Governor BS-793338

...
220
WASHER (Governor Gear) BS-690412

...
357
KEY, Drive Pulley BS-691483

...
615
RETAINER, Governor Shaft BS-698290

...
716
WASHER (Connecting Rod) BS-220863

...
741
GEAR, Timing BS-691277

...
868
SEAL, Valve (Black) BS-692324

...
904
BEARING, Needle BS-492665
...
...
...
