422431-0685-01 Briggs and Stratton Engine

Model: 422431-0685-01

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

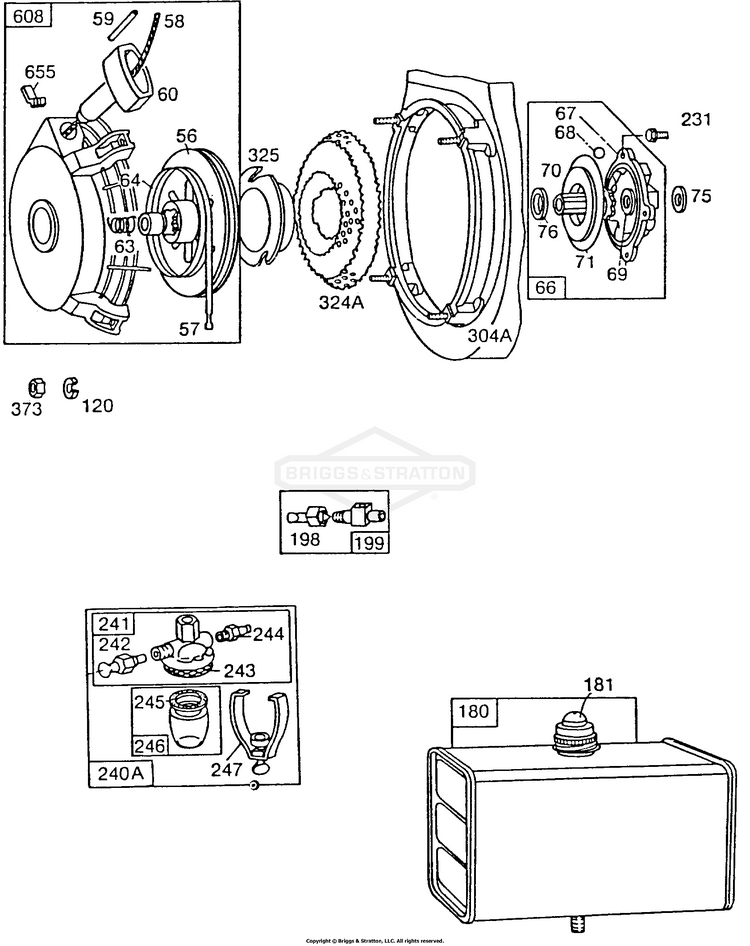

Rewind Starter Assy,FuelTank

...
...
56
PULLEY, Starter (63 Rope) If longer Rope is required, order Rope No. 66894 and cut to length. BS-392630
...
57
SPRING-REWIND STR BS-490179
...
58
ROPE, Starter (Cut To Required Length) If longer Rope is required, order Rope No. 66894 and cut to length. BS-692188
...
59
PIN, Starter Grip BS-230228S
...
60
GRIP-STARTER ROPE BS-490652
...
63
SPRING, Ratchet BS-690547
...
64
ADAPTER, Rewind Spring BS-231118
...
66
CLUTCH, Starter BS-393127S
...
67
HOUSING, Clutch BS-690542
...
68
BALL, Clutch BS-691604
...
69
WASHER (1-1/16 O.D. X 17/32 I.D.) (1 1/16 O.D. X 17/32 I.D.) BS-690271
...
70
RATCHET-CLUTCH (engine W/Ring Gear on FW equipped for Elec Start) BS-691945
...
71
COVER, Ratchet BS-691359
...
75
WASHER (Spring) BS-691056
...
76
COVER, Ratchet BS-691359
...
120
WASHER, Lock, #10 BS-22152GS
...
180
BRACKET, Fuel Tank (8 Quart) (Remote Mount Only) BS-690262
...
180
BRACKET, Fuel Tank (8 Quart) (Remote Mount Only) BS-691068
...
180
TANK, Fuel (6 Quart) BS-291488
...
180
STRAP, Fuel Tank (6 Quart) Includes: 91257 Screw-Machine Fill. Hd. BS-691937
...
180
TANK, Fuel (8 Quart) BS-292415
...
180
FILTER, Fuel BS-690612
...
181
CAP, Fuel Tank (Metal) BS-791545
...
198
VALVE-FUEL SHUT OFF(M BS-592840
...
199
VALVE-FUEL SHUT OFF(M BS-592840
...
231
SCREW BS-690292
...
240A
FILTER, Fuel BS-690612
...
241
FILTER, Fuel BS-690612
...
242
FILTER, Fuel BS-690612
...
243
STRAINER, Fuel BS-691962
...
244
CONNECTOR-HOSE BS-691764
...
245
GASKET, Fuel Bowl Included in Gasket Set-Part No. 394501 BS-692190
...
246
BOWL, Fuel Filter BS-298683
...
247
YOKE, Bowl BS-691700
...
304A
HOUSING, Blower (Rewind Starter) (Low Profile) BS-491043
...
324A
SCREEN, Rotating Uses: 222997 Support-Pulley 231226 Spacer (Clutch) BS-223012
...
325
PULLEY, Rope Starter BS-690418
...
373
NUT (10-24) BS-592578
...
608
STARTER, Rewind (Low Profile) BS-691958
...
655
ANCHOR-REWIND SPRING (Stamped Rewind Housing) BS-691734
