40U877-0008-B1 Briggs and Stratton Engine

Model: 40U877-0008-B1

Back To Assemblies

Save Part Not Listed?
product name

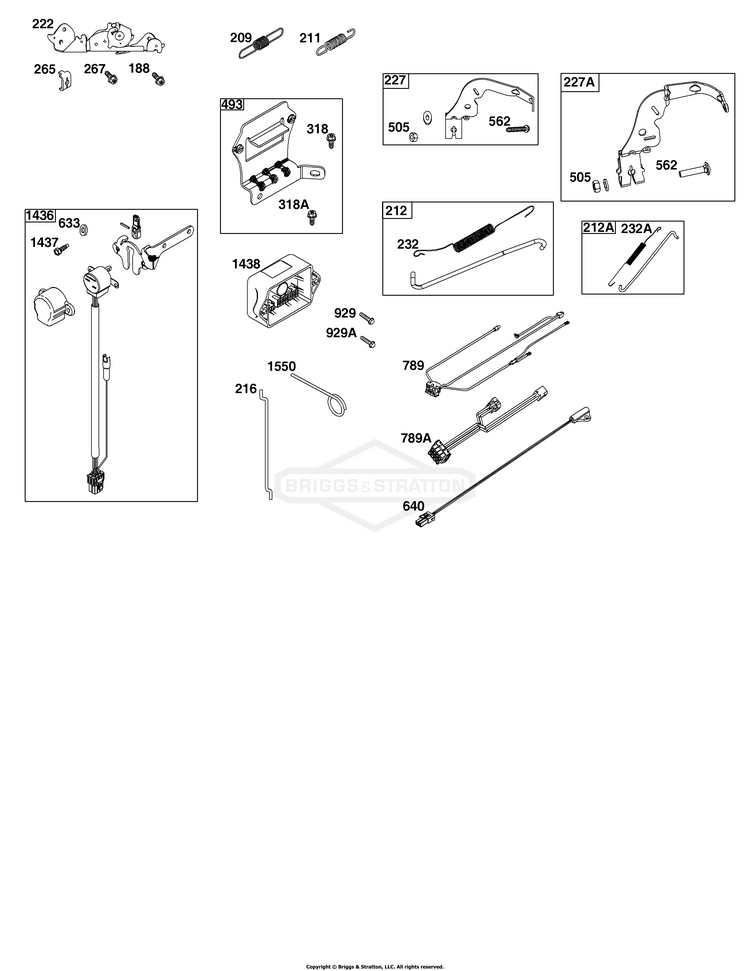

Controls Group

...
...
188
SCREW (Control Bracket) BS-691108
...
209
SPRING, Governor BS-798910
...
211
SPRING, Governed Idle BS-593724
...
212
LINK, Throttle Used After Code Date 18080500 BS-597778
...
212A
LINK, Throttle Used Before Code Date 18080600 BS-597429
...
216
LINK, Choke BS-796879
...
222
BRACKET, Control BS-798916
...
227
LEVER, Governor Control Used Before Code Date 18080600 BS-798856
...
227A
LEVER, Governor Control Used After Code Date 18080500 BS-593857
...
232
SPRING, Governor Link BS-597550
...
232A
SPRING, Governor Link Used Before Code Date 18080600 BS-597550
...
265
CLAMP, Casing BS-691024
...
267
SCREW (Casing Clamp) BS-792629
...
318
SCREW (Mounting Bracket) BS-691127
...
318A
SCREW (Mounting Bracket) BS-792629
...
493
BRACKET, Mounting BS-797176
...
505
NUT (Governor Control Lever) BS-691029
...
562
BOLT (Governor Control Lever) BS-690311
...
633
SEAL, Choke/Throttle Shaft (Throttle Shaft) BS-691321
...
633
SEAL, Choke/Throttle Shaft (Throttle Shaft) BS-691321
...
640
WIRE ASSEMBLY (Thermistor) BS-796913
...
789
HARNESS, Wiring BS-797492
...
789A
HARNESS, Wiring BS-796914
...
929
SCREW (Choke Control Bracket) BS-695239
...
929A
SCREW (Choke Control Bracket) BS-794904
...
1436
MOTOR, Stepper/Bracket BS-796918
...
1436
MOTOR, Stepper/Bracket BS-796918
...
1437
SCREW (Stepper/Bracket Motor) BS-699891
...
1437
SCREW (Stepper/Bracket Motor) BS-699891
...
1438
MODULE, Electronic Choke BS-796352S
...
1550
PIN, Speed Setting BS-595801
