40U777-0006-B1 Briggs and Stratton Engine

Model: 40U777-0006-B1

Back To Assemblies

Save Part Not Listed?
product name

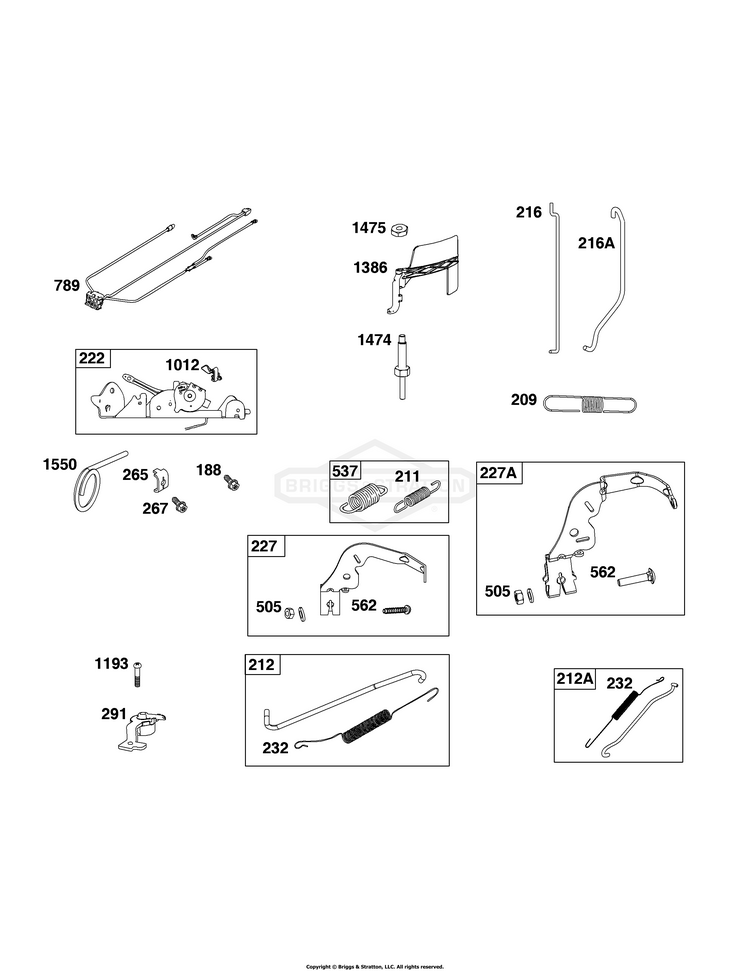

Controls Group

...
...
188
SCREW (Control Bracket) BS-691108
...
209
SPRING, Governor Used After Code Date 18080500 BS-799168
...
211
SPRING, Governed Idle BS-593724
...
212
LINK, Throttle Used After Code Date 18080500 BS-597778
...
212A
LINK, Throttle Used Before Code Date 18080600 BS-597429
...
216
LINK, Choke BS-796229
...
216A
LINK, Choke BS-592575
...
222
BRACKET, Control BS-597334
...
227
LEVER, Governor Control Used Before Code Date 18080600 BS-798856
...
227A
LEVER, Governor Control Used After Code Date 18080500 BS-593857
...
232
SPRING, Governor Link BS-597550
...
265
CLAMP, Casing BS-691024
...
267
SCREW (Casing Clamp) BS-792629
...
291
THERMOSTAT BS-597333
...
505
NUT (Governor Control Lever) BS-691029
...
537
KIT, Governor/Idle Spring Used Before Code Date 18080600 BS-594910
...
562
BOLT (Governor Control Lever) BS-690311
...
789
HARNESS, Wiring BS-591392
...
1012
RETAINER, Link BS-597335
...
1193
SCREW (Thermostat) BS-592577
...
1386
VANE, Air BS-592580
...
1474
STUD (Air Vane) BS-592579
...
1475
NUT (Air Vane) BS-592578
...
1550
PIN, Speed Setting BS-595801
