product name

40N877-0065-B1 Briggs and Stratton Engine

Model: 40N877-0065-B1

Back To Assemblies

Save Part Not Listed?
product name

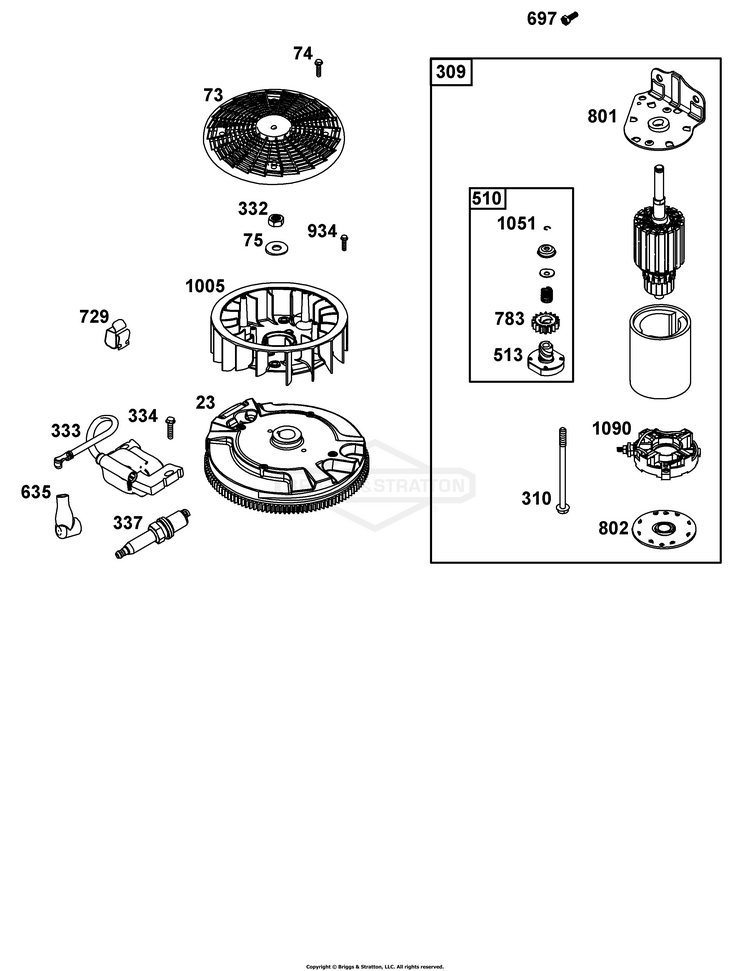

Flywheel, Ignition, and Starter Group

...
...
23
FLYWHEEL BS-594169
...
73
SCREEN, Rotating BS-494439
...
74
SCREW (Rotating Screen) BS-698425
...
75
WASHER (Flywheel) BS-691056
...
309
MOTOR, Starter BS-592599
...
310
SCREW (Starter Motor) BS-690323
...
332
NUT (Flywheel) BS-691059
...
333
ARMATURE, Magneto BS-84012885
...
334
SCREW (Magneto Armature) BS-691061
...
510
DRIVE-STARTER BS-592602
...
513
CLUTCH, Drive BS-692024
...
697
SCREW BS-591909
...
729
CLIP, Wire BS-593826
...
783
GEAR-PINION BS-592600
...
801
CAP, Drive BS-691283
...
802
CAP, End BS-691286
...
934
SCREW (Fan Retainer) BS-593638
...
1005
FAN, Flywheel BS-593640
...
1051
RING, Retaining BS-691265
...
1090
RETAINER, Brush BS-691293
