40N777-0025-B1 Briggs and Stratton Engine

Model: 40N777-0025-B1

Back To Assemblies

Save Part Not Listed?
product name

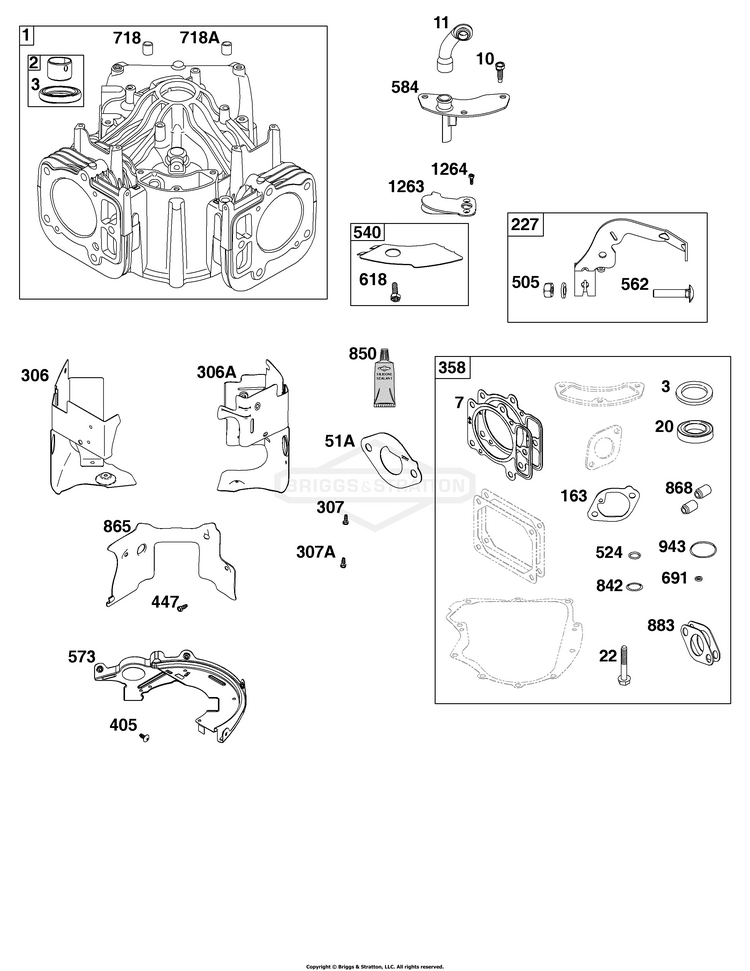

Cylinder Group

...
...
1
CYLINDER ASSEMBLY BS-84007741
...
2
KIT, Bushing/Seal (Magneto Side) BS-797673
...
3
SEAL, Oil (Magneto Side) BS-391086S
...
10
SCREW (Breather Assembly) BS-691108
...
11
TUBE, Breather BS-594163
...
306
SHIELD, Cylinder BS-84004553
...
306A
SHIELD, Cylinder BS-84007347
...
307
SCREW (Cylinder Shield) BS-691003
...
307A
SCREW (Cylinder Shield) BS-691108
...
358
GASKET SET, ENGINE (Service Kits may include extra parts not specific to this engine.) BS-84001915
...
405
SCREW (Back Plate) BS-594937
...
447
SCREW (Air Guide Cover) BS-691003
...
540
PLATE, Baffle BS-594325
...
573
PLATE, Back BS-594902
...
584
COVER, Breather Passage BS-594164
...
618
SCREW (Baffle Plate) BS-594326
...
718
PIN, Locating BS-690959
...
718A
PIN, Locating BS-594988
...
865
COVER, Air Guide BS-591667
...
1263
REED, Breather BS-594166
...
1264
SCREW (Breather Reed) BS-594165
