40A777-1221-01 Briggs and Stratton Engine

Model: 40A777-1221-01

Back To Assemblies

Save Part Not Listed?
product name

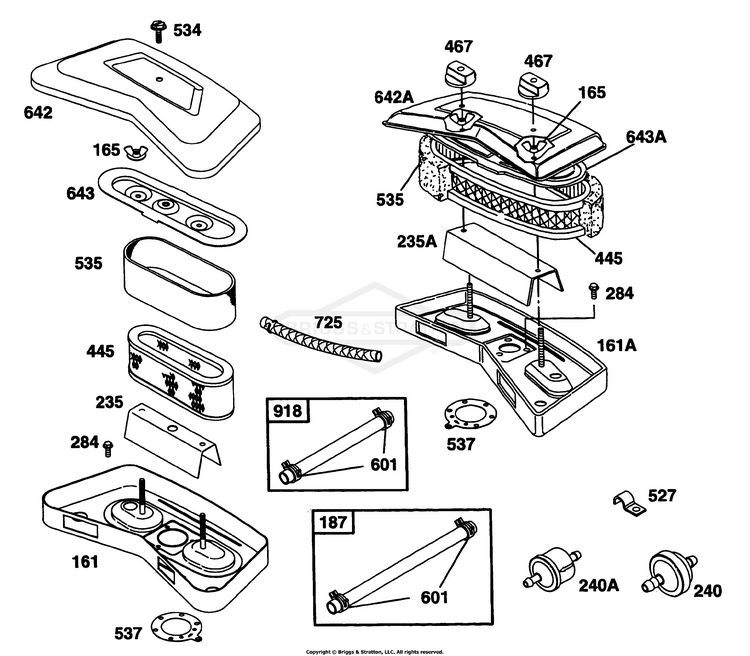

Air Cleaner Group,Fuel Hoses

...
...
161A
BASE-AIR CLEANER (Metal) BS-495617
...
161
BASE, Air Cleaner BS-691401
...
165
NUT BS-691331
...
187
LINE, Fuel (Cut To Required Length) BS-841589
...
235A
SHIELD, Fuel Spray BS-691206
...
235
SHIELD, Fuel Spray BS-691206
...
240A
FILTER, Fuel (Fuel Pump) BS-84001895
...
240
FILTER, Fuel (Fuel Pump) BS-394358S
...
284
SCREW (Casing Clamp) BS-691100
...
445
FILTER, A/C Cartridge BS-394019S
...
467
KNOB, Air Cleaner Cover BS-691668
...
527
CLAMP, Tube BS-690423
...
534
SCREW BS-691675
...
535
FILTER, Pre Cleaner BS-272490S
...
537
GASKET, Air Cleaner Included in Gasket Set-Part No. 495868. Included in Carburetor Kit-Part No. 491539 BS-690273
...
601
CLAMP, Hose (Green) BS-791850
...
642A
COVER-AIR CLEANER BS-224436
...
642
COVER, Air Cleaner BS-691207
...
643A
RETAINER, Air Filter BS-223714
...
643
RETAINER, Air Filter BS-496700
...
725
SHIELD, Heat (20) BS-280866
...
918
GASKET, Breather Passage (Cylinder To Impulse Pump)(Cut To Required Length) BS-791760
