40A777-1221-01 Briggs and Stratton Engine

Model: 40A777-1221-01

Back To Assemblies

Save Part Not Listed?
product name

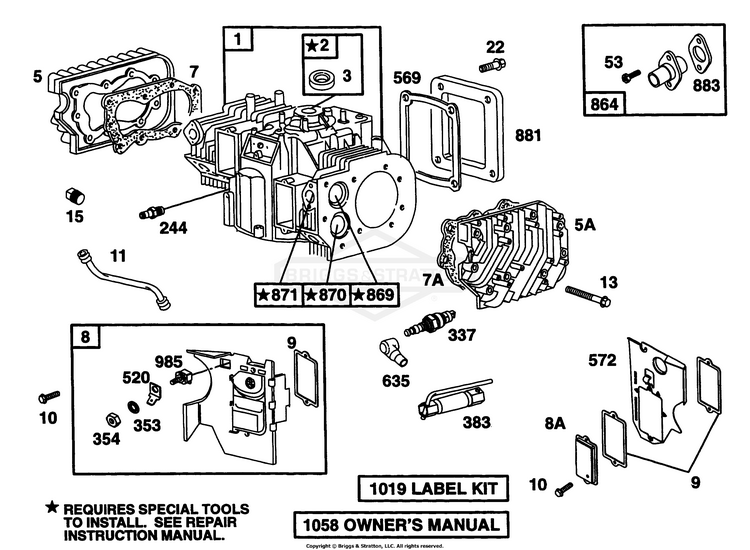

Cylinder,Cylinder Heads

...
...
1
CYLINDER ASSEMBLY BS-497074
...
2
KIT, Bushing/Seal (Magneto Side) BS-797673
...
3
SEAL, Oil Included in Gasket Set-Part No. 495868 BS-391086S
...
5A
HEAD, Cylinder (Cylinder 2) BS-493458
...
5
HEAD, Cylinder (Cylinder 1) BS-493457
...
7A
GASKET, Cylinder Head (Cylinder 2) Included in Gasket Set-Part No. 495868 BS-271868S
...
7
GASKET, Cylinder Head (Cylinder 1) Included in Gasket Set-Part No. 495868 BS-271867S
...
8A
COVER, Breather Passage (Cylinder 2) BS-690415
...
8
BREATHER ASSEMBLY (Cylinder 1) BS-495754
...
9
GASKET, Breather Included in Gasket Set-Part No. 495868 BS-27803S
...
10
SCREW BS-690366
...
11
TUBE, Breather BS-691899
...
13
SCREW (Cylinder Head) (3 9/16 ) BS-592244
...
15
PLUG, Oil Drain (1/8-27 NPTF Hex. Socket) (Impulse Pump Hole) BS-690343
...
22
SCREW BS-94833
...
53
SCREW (1/4-20 X 3/4) BS-691681
...
53
SCREW BS-690321
...
244
CONNECTOR-HOSE BS-691764
...
337
PLUG, Spark (Resistor) BS-796112S
...
353
WASHER BS-691077
...
354
NUT (Ground Terminal) BS-691612
...
383
WRENCH, Spark Plug BS-89838S
...
520
TERMINAL, Ground BS-691084
...
569
GASKET, Crankcase Included in Gasket Set-Part No. 495868 BS-692287
...
572
COVER, Valve Chamber (Cylinder 2) BS-690481
...
635
BOOT, Spark PLug BS-66538S
...
864
ADAPTER, Muffler BS-691970
...
869
SEAT, Valve (Intake) BS-691802
...
870
SEAT-VALVE (Exhaust) BS-691844
...
871
BUSHING, Valve Guide (Intake) BS-231218
...
871
BUSHING, Valve Guide (Exhaust) BS-261961
...
881
COVER, Dust BS-222860
...
883
GASKET, Exhaust Included in Gasket Set-Part No. 495868 BS-692282
...
985
INSULATOR BS-691972
...
1019
KIT, Label BS-496726
...
1058
MANUAL, Operator's BS-272112
