40715x99B Murray - Lawn Tractor (1996)

Model: 40715x99B

Back To Assemblies

Save Part Not Listed?
product name

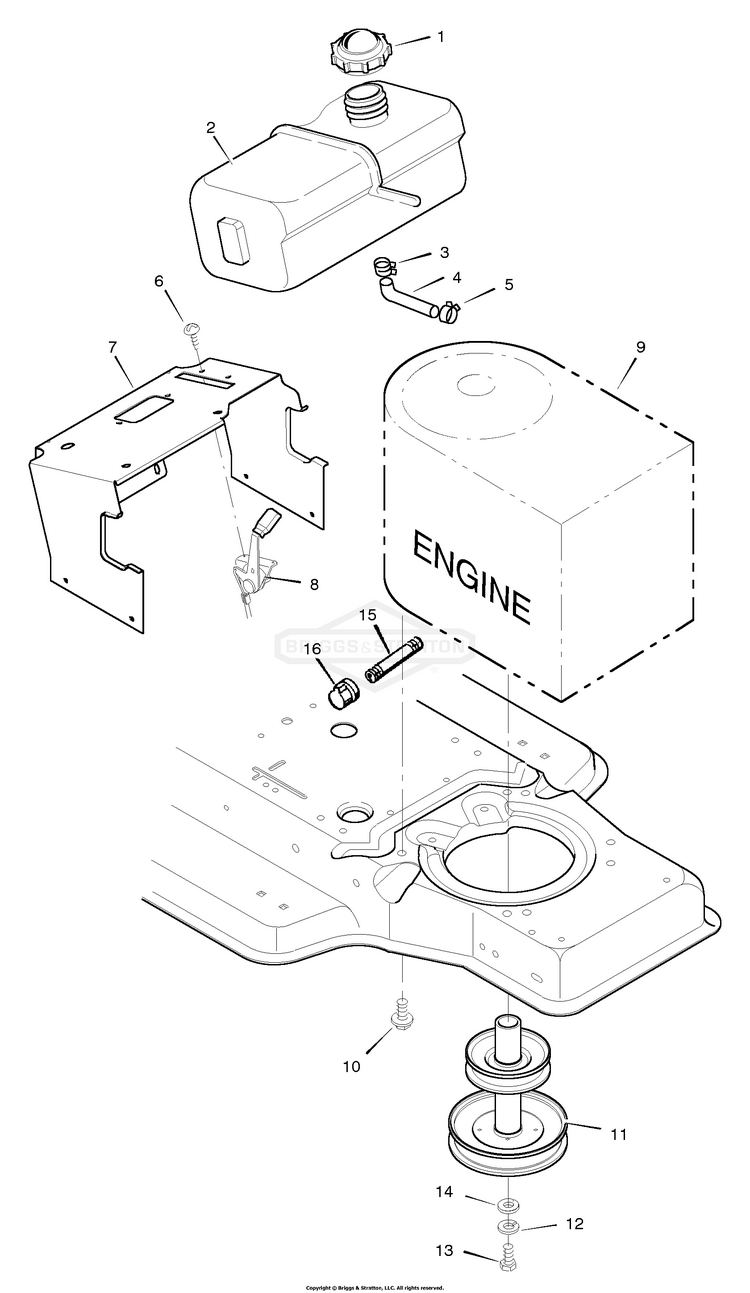

Engine Mount

...
...
1
FUEL CAP BS-092317MA
...
2
Fuel Tank BS-092342
...
3
Hose Clamp BS-091174
...
4
Fuel Line BS-023716
...
5
Hose Clamp BS-091174
...
6
Screw BS-26X201MA
...
7
Support, Dash BS-92331E701
...
8
Throttle Control BS-092371MA
...
10
SCREW-HEX WSHR HD TAP BS-2828635SM
...
11
Stack Pulley Assembly BS-092318 Z
...
12
Lockwasher BS-019X35MA
...
13
Bolt, Hex BS-01X140MA
...
14
WASHER.46.97.25 FLAT BS-17X170MA
...
15
Pipe, Oil Drain BS-024066
...
16
Cap, Oil Drain BS-021651
Schematic Image Zoomed
