40708x8A Murray - Lawn Tractor (1996)

Model: 40708x8A

Back To Assemblies

Save Part Not Listed?
product name

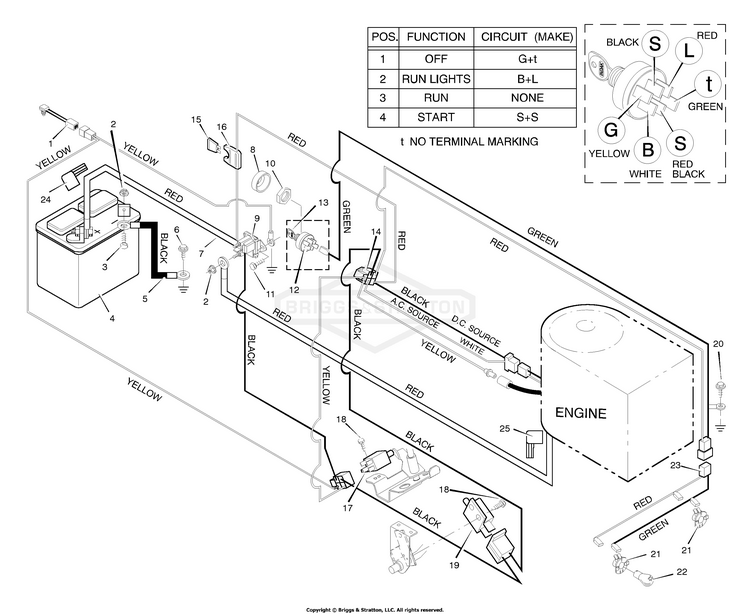

Electrical System

...
...
1
Switch, Seat Sensor BS-091031
...
2
NUT, 1/4-20, NYLOCK BS-703232
...
3
Bolt, Hex BS-001X38MA
...
4
Battery BS-091414
...
--
Acid, Battery (Electrolyte) BS-055702
...
5
Cable, Battery Ground BS-0024X9MA
...
6
Screw BS-26X249MA
...
7
Cable, Red Battery BS-024X29MA
...
8
CAP, Switch BS-847150
...
9
Solenoid BS-024285
...
10
SET, Washer/Nut BS-847144
...
11
Screw BS-26X214MA
...
12
Switch, Ignition BS-092377MA
...
13
Key, Ignition BS-020729
...
14
Harness, Chassis Wire BS-250X49
...
15
Fuse BS-054212
...
16
Holder, Fuse BS-407078MA
...
17
SWITCH-PUSH BUTT BS-1717050SM
...
18
Screw BS-26X233MA
...
19
SWITCH, PLUNGER, N.O. BS-5021451SM
...
20
SCREW, HEX, 1/4-20X.5 BS-704130
...
21
Socket, Light BS-092372
...
22
BULB-HEADLIGHT 1 BS-1677371SM
...
23
Harness, Light Wire BS-250X40MA
...
24
Cover, Terminal BS-054148MA
