405627x51A Murray - Lawn Tractor (2007)

Model: 405627x51A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

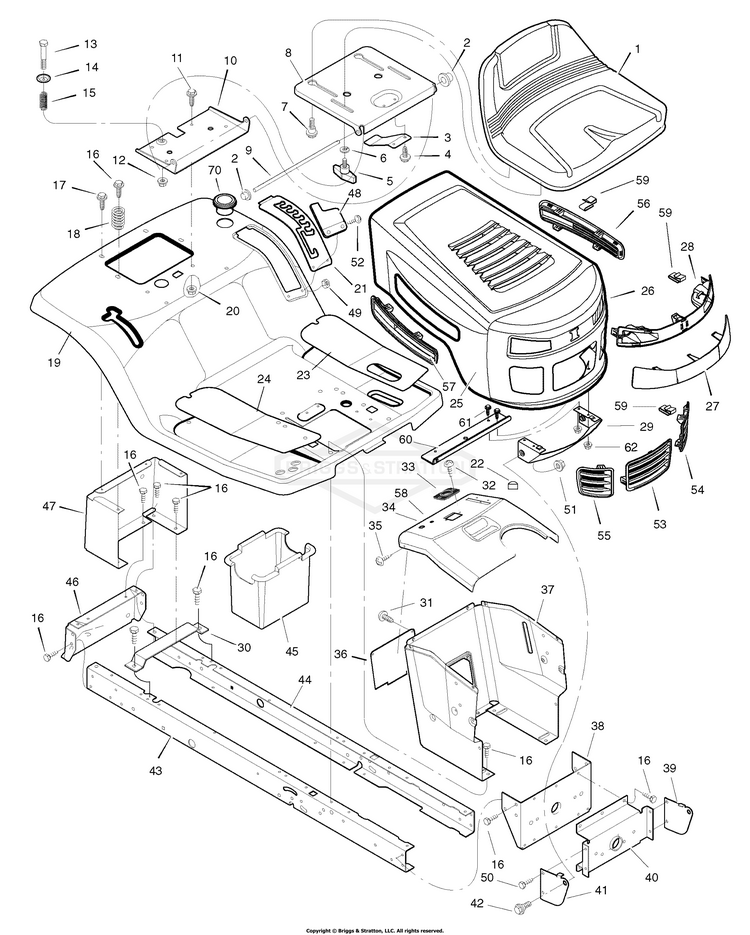

Chassis & Hood

...
...
1
SEAT ADAPTOR KIT BS-1687498YP
...
2
PUSHNUT, 3/8 BS-703948
...
3
Spring BS-094057MA
...
4
Screw BS-26X229MA
...
5
Bolt, Wing BS-1001054MA
...
6
WASHER, FLAT 5/16 BS-704015
...
7
Bolt, Shoulder BS-009X56MA
...
8
SUPPORT, SEAT BS-7300875BMYP
...
9
Rod, Pivot BS-094156ZMA
...
10
Bracket, Pivot BS-1001648E701MA
...
11
CAPSCREW,5/16-18X.625 BS-703822
...
12
NUT .25-20 FLANGELOCK BS-015X89MA
...
13
Bolt, Shoulder BS-009X55MA
...
14
Washer BS-094155ZMA
...
15
Spring BS-164X31MA
...
16
Screw BS-26X249MA
...
17
SCREW.25-20 S-T BS-26X263MA
...
18
Spring BS-164X30MA
...
19
Deck, Seat BS-1001559E245MA
...
20
NUT, HEX, 5/16-18 BS-703902
...
21
PLATE LIFT DETENT BS-094829E701MA
...
22
Bumper, Black BS-094376MA
...
23
Mat, Left BS-094999MA
...
24
Mat, Right BS-094998MA
...
25
Hood BS-1001797E245MA
...
26
GRILLE BS-7300778RMA
...
27
Lens, Plastic Cover BS-1001806MA
...
28
Assembly, Headlamp BS-1001547MA
...
29
Bracket, Lower Pivot BS-1001799E701MA
...
30
Support, Battery BS-690482E701MA
...
31
Screw BS-26X270MA
...
32
Screw BS-26X238MA
...
33
Bearing, Steering BS-1001491MA
...
34
DASH BS-7300774ZMA
...
35
Screw BS-26X201MA
...
36
Panel, Access BS-093007E701MA
...
37
SUPPORT, DASH BS-7300872BMYP
...
38
Bracket, Rear Hanger BS-1001270E701MA
...
39
Support, Left Grille BS-094083E701MA
...
40
Axle, Hanger BS-094007E701MA
...
41
Support, Right Grille BS-094082E701MA
...
42
BOLT, SHOULDER BS-702315
...
43
RAIL - FRAME RH BS-1001928E701MA
...
44
RAIL-FRAME LH BS-1001269E701MA
...
45
Container, Battery BS-690424MA
...
46
Plate, Hitch BS-1001002E701MA
...
47
Panel, Rear BS-690434E701MA
...
48
Cover, Detent BS-094610MA
...
49
NUT#10-24 MCLEANLOCK BS-015X81MA
...
50
Screw BS-26X277MA
...
51
Nut BS-15X124MA
...
52
Screw BS-009X47MA
...
53
Insert, Grille Center BS-1001802MA
...
54
Insert, Left Grille BS-1001803MA
...
55
Insert, Right Grille BS-1001804MA
...
56
Insert, Hood Left BS-1001800MA
...
57
Insert, Hood Right BS-1001801MA
...
58
Grommet, Parking Brake BS-1001755MA
...
59
Fastener, S-Clip BS-028X83MA
...
60
Bracket, Support BS-1001879E701MA
...
61
Screw, Hex BS-0025X3MA
...
62
NUT, 1/4-20, GR5 BS-703233
...
70
Holder, Cup BS-1001542MA
...
--
PARTS BAG, Assembly BS-1002050MA
...
--
Instruction Book BS-1740490
...
--
Manual, Parts List BS-1740491
