405607x78A Murray - Lawn Tractor (2006)

Model: 405607x78A

Back To Assemblies

Save Part Not Listed?
product name

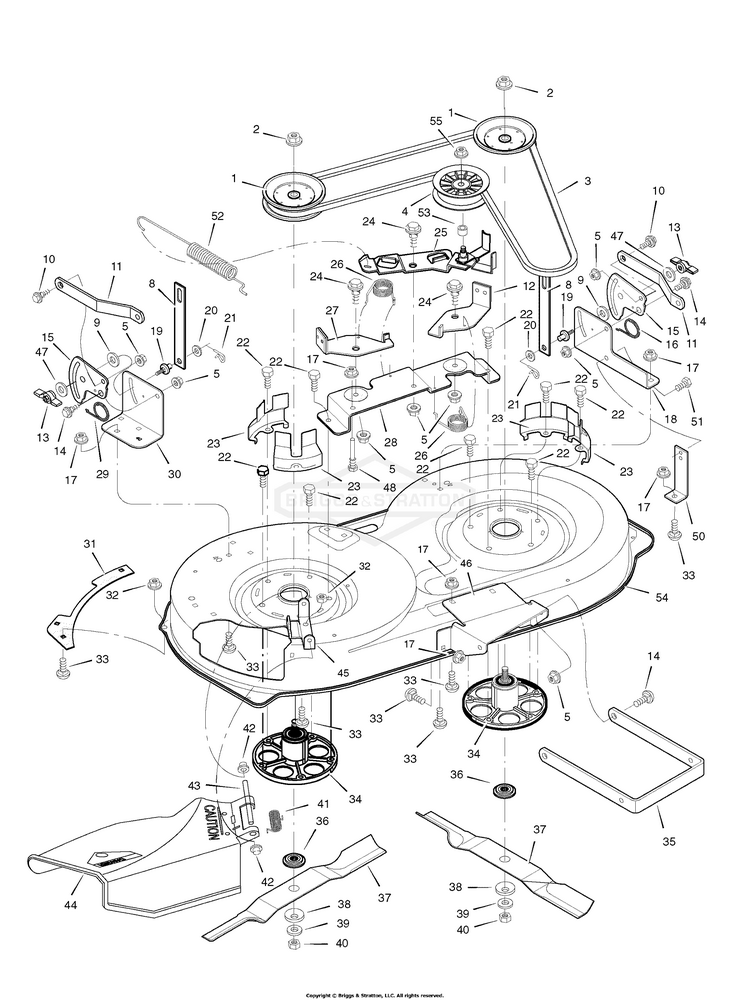

Mower Housing

...
...
1
Pulley, Jackshaft BS-092851MA
...
2
Nut, Hex BS-15X140MA
...
3
Belt, Mower Drive BS-037X62MA
...
4
Pulley, Idler BS-690387MA
...
5
NUT, CNTR LCK, 3/8-16 BS-703893
...
8
LIFT LINK (LT) BS-690212E701MA
...
9
FRICTION PAD BS-094137MA
...
10
Bolt, Shoulder BS-009X52MA
...
11
Bracket, Suspension BS-094055E701MA
...
12
Pad Assembly, Left Brake BS-094049E701MA
...
13
WINGKNOB, 5/16-18 BS-703065
...
14
BOLT-SHD.38-16X.499D BS-009X51MA
...
15
PLATE, Suspension BS-7300878BMYP
...
16
Spring BS-166X43MA
...
17
NUT, 5/16-18, GR5 BS-703409
...
18
BRACKET, Left Suspension BS-7300736ZYP
...
19
Pin, Hanger BS-095194MA
...
20
Washer BS-017X91MA
...
21
PIN, 3/32 X 1.6 BS-703300
...
22
SCREW-HEX WSHR HD TAP BS-2828635SM
...
23
BELT GUIDE BS-7300859BMYP
...
24
Bolt, Shoulder BS-009X39MA
...
25
ASSEMBLY, Idler Arm, 42 in BS-7400245BMYP
...
26
Spring BS-166X41MA
...
27
Pad Assembly, Right Brake BS-094047E701MA
...
28
Bracket Assembly, Brake BS-094145E701MA
...
29
Spring BS-166X42MA
...
30
Bracket, Suspension BS-094142E701MA
...
31
Plate BS-091770E701MA
...
32
NUT, HEX FLNG,5/16-18 BS-704067
...
33
BOLT BS-703159
...
34
JACKSHAFT HSNG ASSY BS-1001200MA
...
35
BRKT-FRT SUSPENSION BS-690539E701MA
...
36
Adapter, Blade BS-690411MA
...
37
Blade BS-095103E701MA
...
38
Washer BS-17X166MA
...
39
Washer BS-17X165MA
...
40
Nut BS-15X100MA
...
41
Spring BS-0166X4MA
...
42
PUSHNUT, 3/8 BS-703948
...
43
ROD, Deflector BS-094957ZMA
...
44
Deflector Assembly BS-094707MA
...
45
BRACKET - HINGE BS-094956E701MA
...
46
Bracket, Front Hanger BS-094144E701MA
...
47
WASHER,FLAT .33 1. 16 BS-017X45MA
...
48
Guide, Belt BS-094781MA
...
50
Bracket, Support BS-094681E701MA
...
51
Screw BS-26X249MA
...
52
Spring, Extension BS-165X119MA
...
53
Spacer BS-690369MA
...
54
Housing, Blade (Includes Ref. Nos. 17, 18, 30, 31, 32, 33, 45, 46, 47 & 51) BS-094141E717MA
...
55
NUT, CNTR LCK, 3/8-16 BS-703893
