405607x52A Murray - Lawn Tractor (2005)

Model: 405607x52A

Back To Assemblies

Save Part Not Listed?
product name

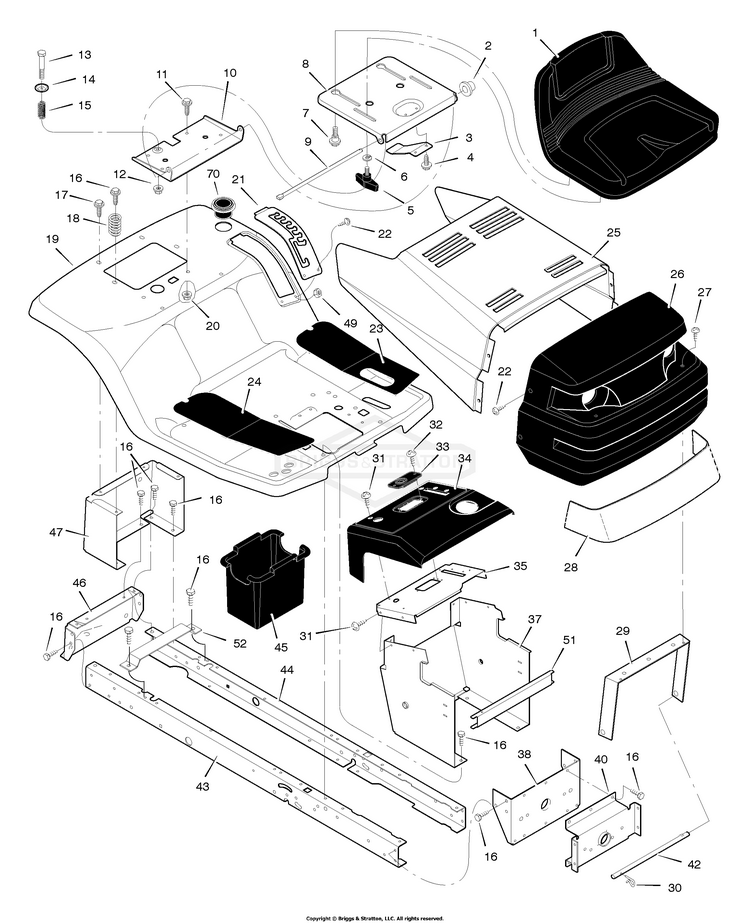

Chassis & Hood

...
...
1
SEAT ADAPTOR KIT BS-1687498YP
...
2
PUSHNUT, 3/8 BS-703948
...
3
Spring BS-094057MA
...
4
Screw BS-26X229MA
...
5
Bolt, Wing BS-1001054MA
...
6
WASHER, FLAT 5/16 BS-704015
...
7
Bolt, Shoulder BS-009X56MA
...
8
SUPPORT, SEAT BS-7300875BMYP
...
9
Rod, Pivot BS-094156ZMA
...
10
Bracket, Pivot BS-1001648E700
...
11
CAPSCREW,5/16-18X.625 BS-703822
...
12
NUT .25-20 FLANGELOCK BS-015X89MA
...
13
Bolt, Shoulder BS-009X55MA
...
14
Washer BS-094155 Z
...
15
SPRING, Compression BS-164X31MA
...
16
Screw BS-26X249MA
...
17
SCREW.25-20 S-T BS-26X263MA
...
18
Spring BS-164X30MA
...
19
Deck, Seat BS-1001559E013
...
20
NUT, HEX FLNG,5/16-18 BS-704067
...
21
Plate, Index BS-094829E701
...
23
Mat, Left BS-094999MA
...
24
Mat, Right BS-094998MA
...
25
Hood BS-092333E013
...
26
Grille Assembly (Includes Lens) BS-092350E701
...
27
Screw BS-26X239MA
...
28
Lens BS-092344
...
29
Brace, Grille BS-092448
...
30
PIN, 3/32 X 1.6 BS-703300
...
31
SCREW, Thread Forming BS-26X270MA
...
32
Screw BS-26X238MA
...
33
Bearing, Steering BS-094214MA
...
34
Dash BS-094218E717
...
35
Plate, Dash BS-094211E700
...
36
Panel, Access BS-093007E701MA
...
37
Support, Dash BS-095323E717
...
38
Bracket, Rear Hanger BS-1001270E701MA
...
40
Axle, Hanger BS-094007E701MA
...
42
Rod, Pivot BS-092332 Z
...
43
RAIL - FRAME RH BS-1001928E701MA
...
44
Frame, Left BS-1001927E701
...
45
Container, Battery BS-690424MA
...
46
Plate, Hitch BS-1001002E701
...
47
Panel, Rear BS-690434E701MA
...
49
NUT#10-24 MCLEANLOCK BS-015X81MA
...
51
Channel BS-094215E700
...
52
Support, Battery BS-690482E701
...
70
Holder, Cup BS-1001542MA
...
--
Instruction Book & Parts List BS-F-050743L
