405606x50C Murray - Lawn Tractor (2007)

Model: 405606x50C

Back To Assemblies

Save Part Not Listed?
product name

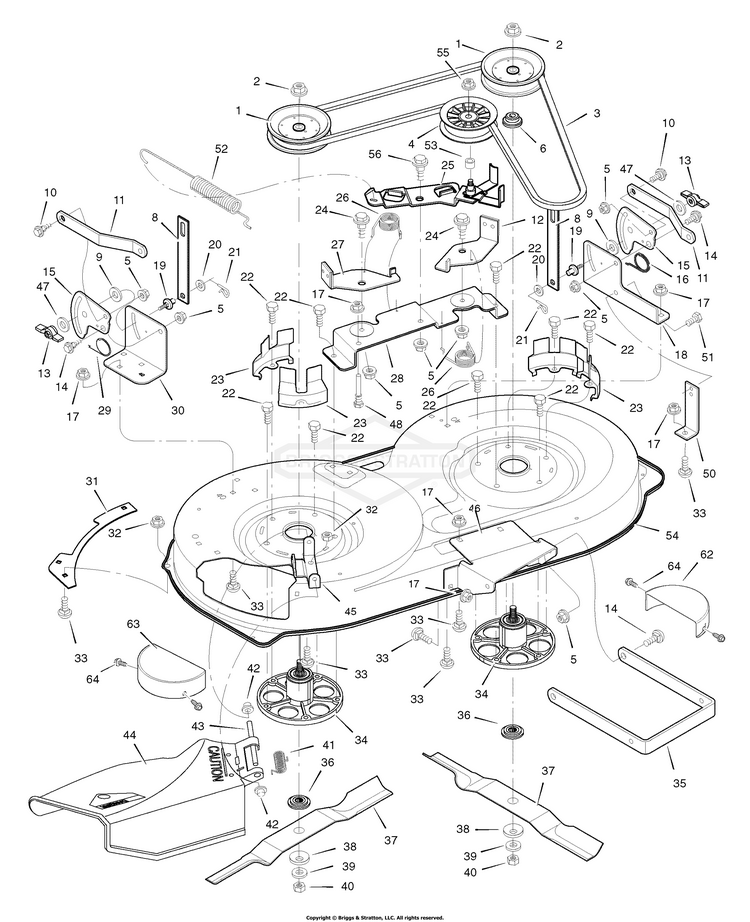

Mower Housing

...
...
1
PULLEY Jackshaft BS-092851MA
...
2
NUT, Hex BS-15X140MA
...
3
BELT, Mower Drive BS-037X62MA
...
4
PULLEY, IDLER BS-091801MA
...
5
NUT, CNTR LCK, 3/8-16 BS-703893
...
6
Spacer, Pulley (Included with Ref. No. 34) BS-1001197MA
...
9
FRICTION PAD BS-094137MA
...
8
LIFT LINK (LT) BS-690212E701MA
...
10
BOLT, Shoulder BS-009X52MA
...
11
BRACKET, Suspension BS-094055E701MA
...
12
PAD ASSEMBLY, Left Brake BS-094049E701MA
...
13
WINGKNOB, 5/16-18 BS-703065
...
14
BOLT-SHD.38-16X.499D BS-009X51MA
...
15
PLATE, Suspension BS-7300878BMYP
...
16
SPRING BS-166X43MA
...
17
NUT, 5/16-18, GR5 BS-703409
...
18
BRACKET, Left Suspension BS-7300736ZYP
...
19
PIN, Hanger BS-095194MA
...
20
WASHER BS-017X91MA
...
21
PIN, 3/32 X 1.6 BS-703300
...
22
BOLT BS-0025X6MA
...
23
BELT GUIDE BS-7300859BMYP
...
24
BOLT, Shoulder BS-009X39MA
...
25
ARM, Idler BS-1001500MA
...
26
SPRING BS-166X41MA
...
27
PAD ASSEMBLY, Right Brake BS-094047E701MA
...
28
BRACKET ASSEMBLY, Brake BS-094145E701MA
...
29
SPRING BS-166X42MA
...
30
BRACKET, Suspension BS-094142E701MA
...
31
PLATE BS-091770E701MA
...
32
NUT, HEX FLNG,5/16-18 BS-704067
...
33
BOLT BS-703159
...
34
JACKSHAFT HSNG ASSY (Includes Ref. No. 6) BS-1001200MA
...
35
BRKT-FRT SUSPENSION BS-690539E701MA
...
36
ADAPTER, Blade BS-690411MA
...
37
SINGLE BLADE BS-1001428E701MA
...
38
WASHER BS-17X166MA
...
39
WASHER BS-17X165MA
...
40
NUT BS-15X100MA
...
41
SPRING BS-0166X4MA
...
42
PUSHNUT, 3/8 BS-703948
...
43
ROD, Deflector BS-094957ZMA
...
44
DEFLECTOR ASSEMBLY BS-094707MA
...
45
BRACKET - HINGE BS-094956E701MA
...
46
BRACKET, Front Hanger BS-094144E701MA
...
47
WASHER,FLAT .33 1. 16 BS-017X45MA
...
48
GUIDE, Belt BS-094781MA
...
50
BRACKET, Support BS-094681E701MA
...
51
SCREW BS-26X249MA
...
52
SPRING, Extension BS-165X119MA
...
53
SPACER BS-690369MA
...
54
HOUSING, Blade BS-094140E717MA
...
55
NUT, CNTR LCK, 3/8-16 BS-703893
...
56
BOLT, Shoulder BS-009X72MA
...
62
GUARD-BELT LH BS-094668E701MA
...
63
GUARD, Belt R.H. BS-94669E701MA
...
64
SCREW.25-20 S-T BS-26X263MA
