405606x50C Murray - Lawn Tractor (2007)

Model: 405606x50C

Back To Assemblies

Save Part Not Listed?
product name

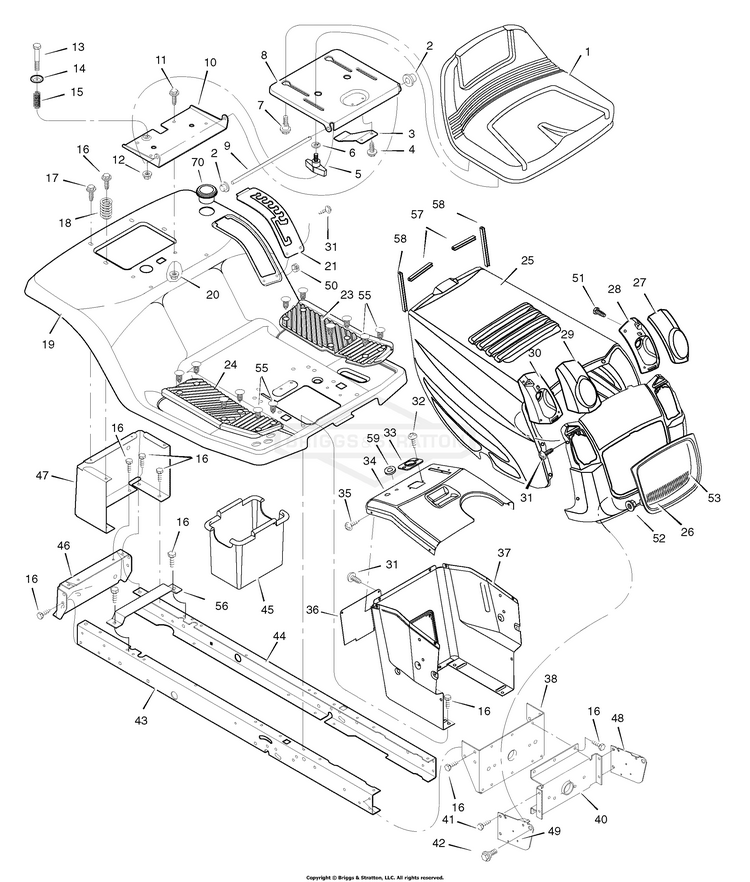

Chassis & Hood

...
...
1
SEAT ADAPTOR KIT BS-1687498YP
...
2
PUSHNUT, 3/8 BS-703948
...
3
SPRING BS-094057MA
...
4
SCREW BS-26X229MA
...
5
BOLT, Wing BS-1001054MA
...
6
WASHER, FLAT 5/16 BS-704015
...
7
BOLT, Shoulder BS-009X56MA
...
8
SUPPORT, SEAT BS-7300875BMYP
...
9
ROD, Pivot BS-094156ZMA
...
10
Bracket, Pivot BS-1001648E701MA
...
11
CAPSCREW,5/16-18X.625 BS-703822
...
12
NUT .25-20 FLANGELOCK BS-015X89MA
...
13
BOLT, Shoulder BS-009X55MA
...
14
WASHER BS-094155ZMA
...
15
SPRING BS-164X31MA
...
16
SCREW BS-26X249MA
...
17
SCREW.25-20 S-T BS-26X263MA
...
18
SPRING BS-164X30MA
...
19
DECK, Seat BS-1001559E245MA
...
20
NUT, HEX, 5/16-18 BS-703902
...
21
PLATE LIFT DETENT BS-094829E701MA
...
23
Mat, Left BS-1001583MA
...
24
MAT, Right BS-1001578MA
...
25
Hood BS-1001536E701MA
...
26
Grille BS-1001531E701MA
...
27
LENS, Left BS-1001546MA
...
28
Housing, Left Headlamp BS-1001548MA
...
29
LENS, Right BS-1001545MA
...
30
Housing, Right Headlamp BS-1001547MA
...
31
SCREW BS-26X270MA
...
32
SCREW BS-26X238MA
...
33
BEARING, Steering BS-1001491MA
...
34
DASH BS-7300774ZMA
...
35
SCREW BS-26X201MA
...
36
PANEL, Access BS-093007E701MA
...
37
SUPPORT, Dash BS-7300872TMA
...
38
BRACKET, Rear Hanger BS-1001270E701MA
...
40
AXLE, Hanger BS-094007E701MA
...
41
BOLT, Hex BS-26X277MA
...
42
BOLT, SHOULDER BS-702315
...
43
RAIL - FRAME RH BS-1001928E701MA
...
44
RAIL-FRAME LH BS-1001269E701MA
...
45
CONTAINER, Battery BS-690424MA
...
46
PLATE, Hitch BS-1001002E701MA
...
47
PANEL, Rear BS-690434E701MA
...
48
Support, Left Grille BS-094085E701MA
...
49
Support, Right Grille BS-094084E701MA
...
50
NUT#10-24 MCLEANLOCK BS-015X81MA
...
51
SCREW BS-26X259MA
...
52
NUT BS-15X124MA
...
53
INSERT, Grille BS-1001541MA
...
55
FASTENER, Panel BS-0193X1MA
...
56
SUPPORT, Battery BS-690482E701MA
...
57
STRIP, Trim BS-7102404YP
...
58
STRIP, Trim BS-7102404YP
...
59
GROMMET, Parking Brake BS-1001755MA
...
70
HOLDER, Cup BS-1001542MA
...
--
PARTS BAG, Assembly BS-1002050MA
...
--
INSTRUCTION BOOK BS-1740478
...
--
MANUAL, ILLUSTRATED PARTS LIST BS-1740479
