40541x99E Murray - Lawn Tractor (2002)

Model: 40541x99E

Back To Assemblies

Save Part Not Listed?
product name

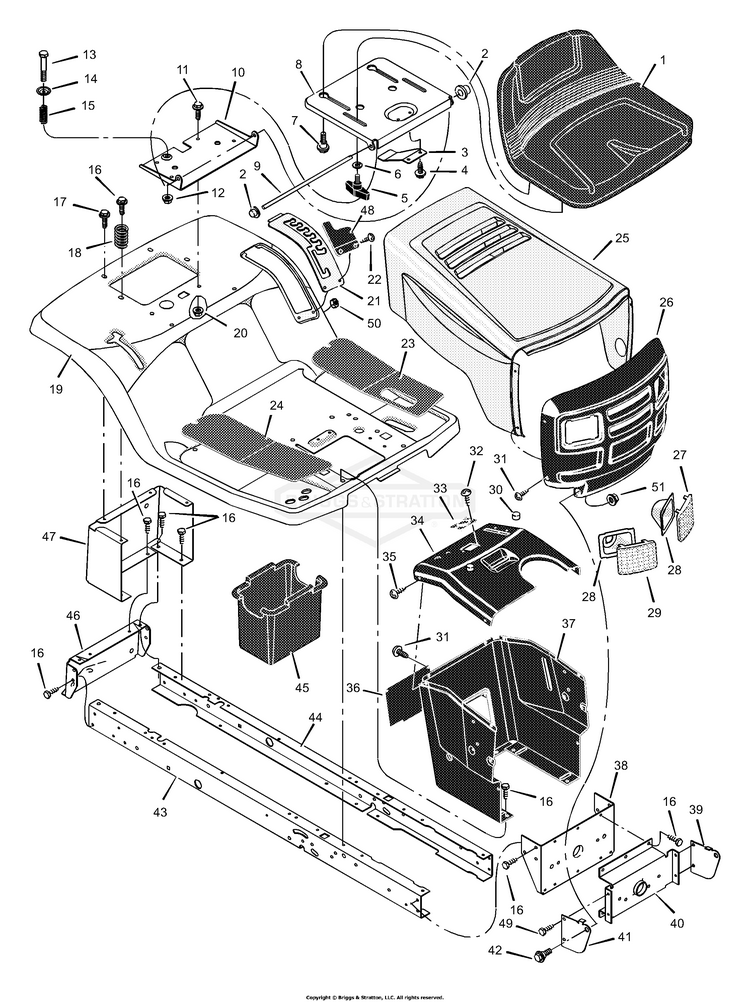

Chassis & Hood

...
...
1
SEAT ADAPTOR KIT BS-1687498YP
...
2
PUSHNUT, 3/8 BS-703948
...
3
Spring BS-094057MA
...
4
Screw BS-26X229MA
...
5
Bolt, Wing BS-1001054MA
...
6
WASHER, FLAT 5/16 BS-704015
...
7
Bolt, Shoulder BS-009X56MA
...
8
Support, Seat BS-094154E700
...
9
Rod, Pivot BS-094156ZMA
...
10
Bracket, Pivot BS-1001648E701MA
...
11
CAPSCREW,5/16-18X.625 BS-703822
...
12
NUT .25-20 FLANGELOCK BS-015X89MA
...
13
Bolt, Shoulder BS-009X55MA
...
14
Washer BS-094155 Z
...
15
SPRING, Compression BS-164X31MA
...
16
Screw BS-26X249MA
...
17
SCREW.25-20 S-T BS-26X263MA
...
18
Spring BS-164X30MA
...
19
Deck, Seat BS-095249E276
...
20
NUT, HEX, 5/16-18 BS-703902
...
21
Plate, Index BS-094151E700
...
22
Screw BS-009X47MA
...
23
Mat, Left BS-094999MA
...
24
Mat, Right BS-094998MA
...
25
Hood BS-1001492E276
...
26
Grille BS-094079E700
...
27
Lens, Left BS-094081MA
...
28
Bezel BS-094807 Z
...
29
Lens, Right BS-094080MA
...
30
Bumper BS-094744
...
31
SCREW, Thread Forming BS-26X270MA
...
32
Screw BS-26X238MA
...
33
Bearing, Steering BS-094075
...
34
Dash BS-094074E700
...
35
Screw BS-26X201MA
...
36
Panel, Access BS-093007E700
...
37
Support, Dash BS-095318E700
...
38
Bracket, Rear Hanger BS-1001270E701MA
...
39
Support, Left Grille BS-094083E700
...
40
Axle, Hanger BS-094007E700
...
41
Support, Right Grille BS-094082E700
...
42
BOLT, SHOULDER BS-702315
...
43
Frame, Right BS-1001268E701
...
44
RAIL-FRAME LH BS-1001269E701MA
...
45
Container, Battery BS-690424MA
...
46
Plate, Hitch BS-1001002E700
...
47
Panel, Rear BS-690434E700
...
48
Cover, Detent BS-094610MA
...
49
Screw BS-26X277MA
...
50
NUT#10-24 MCLEANLOCK BS-015X81MA
...
51
Nut BS-15X124
...
--
Instruction Book & Parts List BS-F-0207263L
