40541x30A Murray - Lawn Tractor (1998)

Model: 40541x30A

Back To Assemblies

Save Part Not Listed?
product name

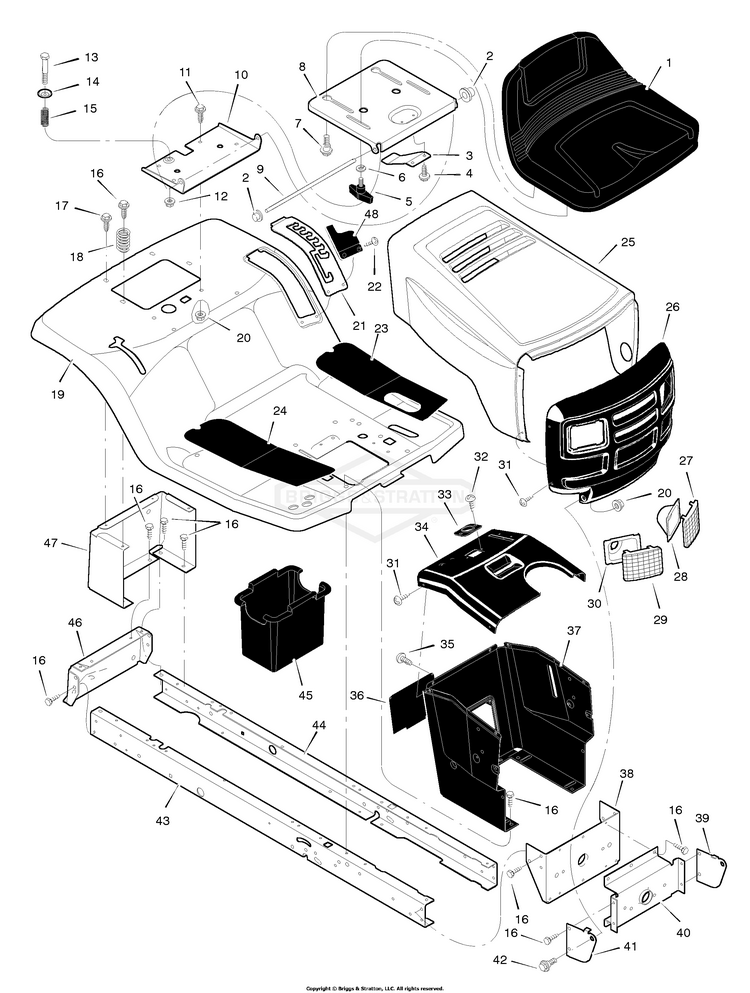

Chassis & Hood

...
...
1
Seat BS-094162
...
2
PUSHNUT, 3/8 BS-703948
...
3
Spring BS-094057MA
...
4
Screw BS-26X229MA
...
5
Bolt, Wing BS-094160
...
6
Washer BS-17X472
...
7
Bolt, Shoulder BS-009X56MA
...
8
Support, Seat BS-94154F200
...
9
Rod, Pivot BS-94156
...
10
Bracket, Pivot BS-94153F200
...
11
CAPSCREW,5/16-18X.625 BS-703822
...
12
NUT .25-20 FLANGELOCK BS-015X89MA
...
13
Bolt, Shoulder BS-009X55MA
...
14
Washer BS-094155 Z
...
15
SPRING, Compression BS-164X31MA
...
16
Screw BS-26X249MA
...
17
SCREW.25-20 S-T BS-26X263MA
...
18
Spring BS-164X30MA
...
19
Deck, Seat BS-094070F200
...
20
NUT, HEX FLNG,5/16-18 BS-704067
...
21
Plate, Index BS-94151F200
...
22
Screw BS-009X47MA
...
23
Mat, Left BS-094149
...
24
Mat, Right BS-094148
...
25
Hood BS-094072F200
...
26
Grille BS-094079E701MA
...
27
Lens, Left BS-094081MA
...
28
Bezel, Left BS-094807 Z
...
29
Lens, Right BS-094080MA
...
30
Bezel, Right BS-094807 Z
...
31
SCREW, Thread Forming BS-26X270MA
...
32
Screw BS-26X239MA
...
33
Bearing, Steering BS-094075
...
34
Dash BS-94074
...
35
SCREW, #10-16X.625 BS-703994
...
36
Panel, Access BS-93007F200
...
37
Support, Dash BS-94078E701
...
38
Bracket, Rear Hanger BS-1001270E701MA
...
39
Support, Left Grille BS-94083E701
...
40
Axle, Hanger BS-094007E701MA
...
41
Support, Right Grille BS-94082E701
...
42
BOLT-SHD.38-16X.499D BS-009X51MA
...
43
Frame, Right BS-94000E701
...
44
Frame, Left BS-94001 E701
...
45
Container, Battery BS-094069
...
46
Plate, Hitch BS-94002F200
...
47
Panel, Rear BS-94023-821
...
48
Cover BS-094610MA
...
--
Book, Instruction BS-F-98723
...
--
Parts List BS-F-98724
