40530x83A Murray - Lawn Tractor (1997)

Model: 40530x83A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

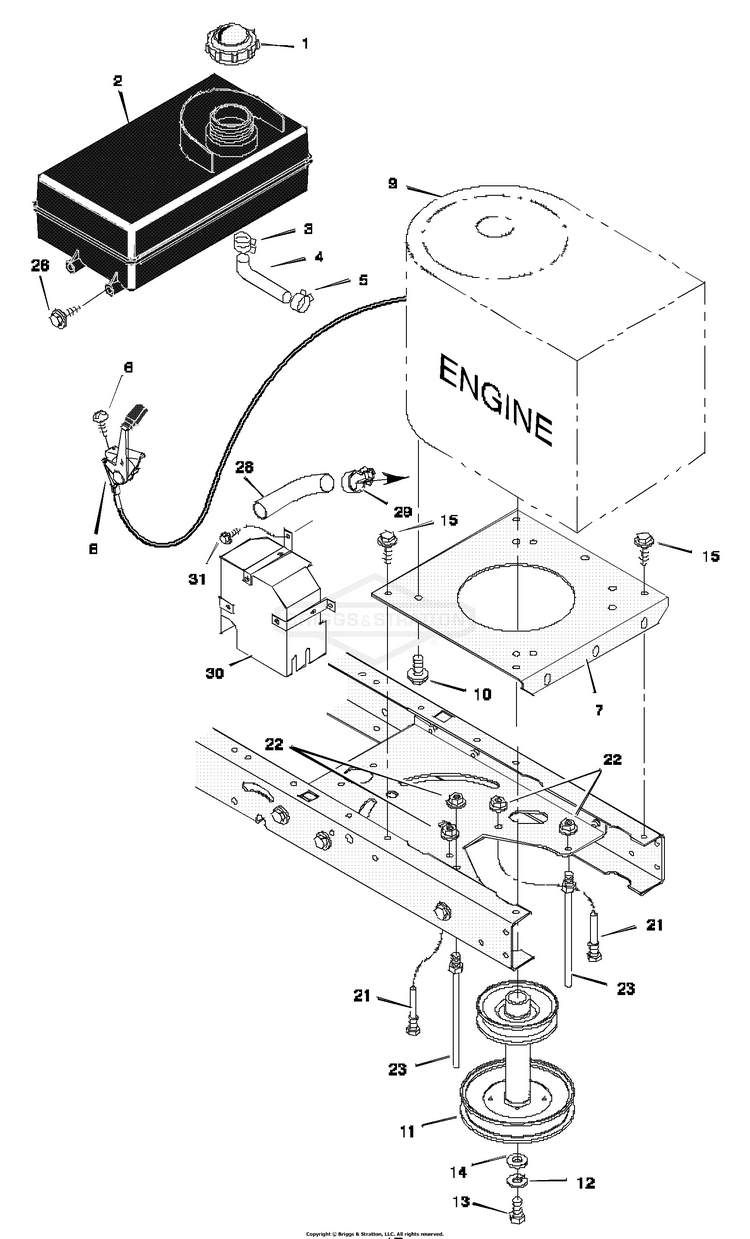

Engine Mount

...
...
1
FUEL CAP BS-092317MA
...
2
TANK, Fuel 1.4 Gal. BS-7601092MA
...
3
Hose Clamp BS-091174
...
4
Fuel Line BS-090671MA
...
5
Hose Clamp BS-091174
...
6
Screw BS-26X201MA
...
7
Plate, Engine BS-94006E701
...
8
Throttle Control BS-091989
...
10
SCREW-HEX WSHR HD TAP BS-2828635SM
...
11
Stack Pulley Assembly BS-094139 Z
...
12
Lockwasher BS-019X35MA
...
13
Bolt, Hex BS-01X140MA
...
14
WASHER.46.97.25 FLAT BS-17X170MA
...
15
Screw BS-26X249MA
...
21
Guide, Belt BS-933492
...
22
Nut, Flange BS-15X792
...
23
Guide, Belt BS-94066 Z
...
26
Screw BS-26X253MA
...
28
Pipe, Exhaust BS-092855
...
29
Clamp BS-092558MA
...
30
Shield, Heat BS-92550SE
...
31
SCREW.25-20 S-T BS-26X263MA
