40530x51C Murray - Lawn Tractor (2000)

Model: 40530x51C

Back To Assemblies

Save Part Not Listed?
product name

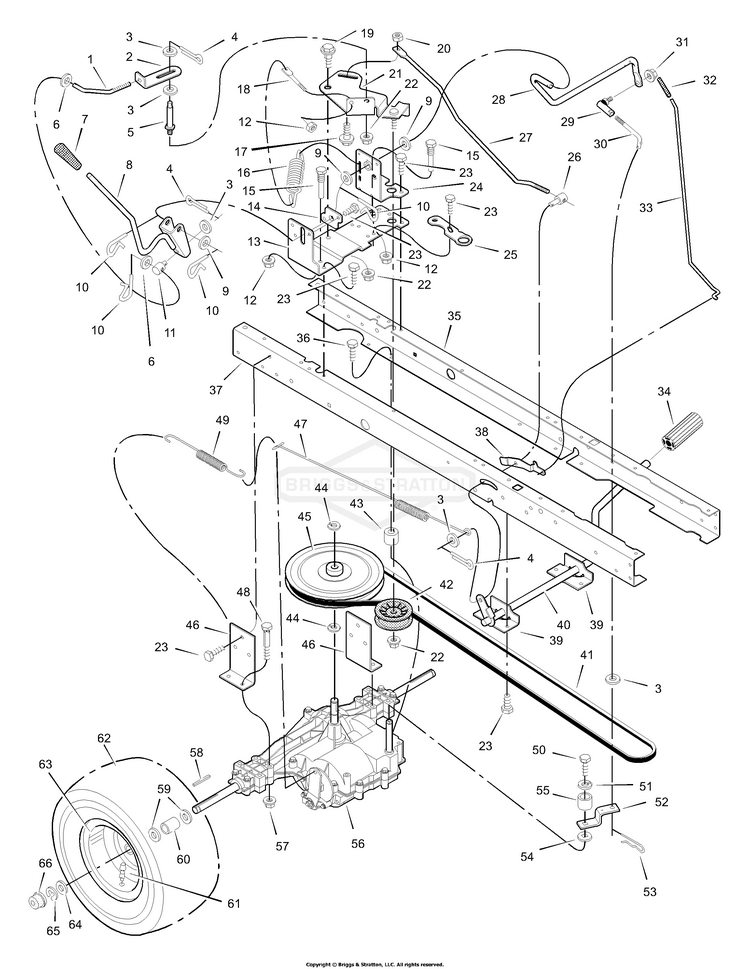

Motion Drive

...
...
1
Rod, Adjuster BS-690171 Z
...
2
Link, Clutch BS-094183 Z
...
3
WASHER, FLAT BS-710083MA
...
4
PIN, COTTER, 3/32X.75 BS-703312
...
5
Spacer, Stud BS-094146
...
6
WASHER, FLAT 5/16 BS-704015
...
7
GRIP-SHIFT LEVER-.437 BS-094198MA
...
8
Lever, Shift BS-690170 Z
...
9
WASHER BS-703128
...
10
PIN, 3/32 X 1.6 BS-703300
...
11
Swivel BS-094147MA
...
12
NUT, 5/16-18, GR5 BS-703409
...
13
Bracket, Shifter BS-690166E700
...
14
Plate, Pivot BS-94164E700
...
15
GUIDE SCREW - ZINC BS-093349MA
...
16
Spring, Extension BS-165X116MA
...
17
Bolt, Shoulder BS-009X54MA
...
18
Stud, Spring BS-094042ZMA
...
19
Bolt, Shoulder BS-009X39MA
...
20
NUT .25-20 FLANGELOCK BS-015X89MA
...
21
ARM, Idler BS-690173ZMA
...
22
NUT, CNTR LCK, 3/8-16 BS-703893
...
23
Screw BS-26X249MA
...
24
Bracket, Shift BS-094034E700
...
25
Plate, Shift BS-94032E700
...
26
NUT-ADJUSTING BS-094815ZMA
...
27
Rod, Clutch BS-094041 Z
...
28
Rod, Shift BS-094167 Z
...
29
Joint, Ball BS-021031MA
...
30
Link, Shift BS-094172 Z
...
31
Locknut BS-015X87
...
32
Grip BS-091079MA
...
33
Rod, Parking Brake BS-094152 Z
...
34
PEDAL-BRAKE BLACK RUB BS-1727261SM
...
35
Frame, Left BS-690207E700
...
36
Screw BS-025X12
...
37
Frame, Right BS-690206E700
...
38
Latch, Parking Brake BS-094045 Z
...
39
Bracket, Pedal BS-094035E700
...
40
LEVER, BRAKE, CLUTCH BS-7400256ZMA
...
41
Belt BS-037X87MA
...
42
Pulley BS-421409MA
...
43
Spacer BS-094132MA
...
44
Ring, Snap BS-0011X7MA
...
45
Pulley, Drive BS-095094MA
...
46
Bracket, Left Transaxle BS-094008E701MA
...
47
Spring, Extension BS-165X115MA
...
48
SCREW BS-703868
...
49
Spring, Extension BS-165X92MA
...
50
Bolt BS-06X105MA
...
51
Lockwasher BS-017X38MA
...
52
Yoke, Shift BS-094031ZMA
...
53
PIN, 3/32 X 1.6 BS-703300
...
54
Washer BS-17X148MA
...
55
Spacer BS-091889
...
57
NUT, HEX FLNG,5/16-18 BS-704067
...
58
Key, Square BS-021553MA
...
59
Washer BS-17X160MA
...
60
Spacer BS-87X105 Z
...
61
VALVE STM&CP,TR41 SE BS-024373MA
...
62
Tire * BS-091414
...
--
Tube BS-407049MA
...
63
Wheel & Tire Assembly BS-092289601
...
64
Washer BS-17X195MA
...
65
RING, E .750D .050T BS-0011X3MA
...
66
HUB CAP (Optional) BS-094618MA
