40508x92B Murray - Lawn Tractor (2000)

Model: 40508x92B

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

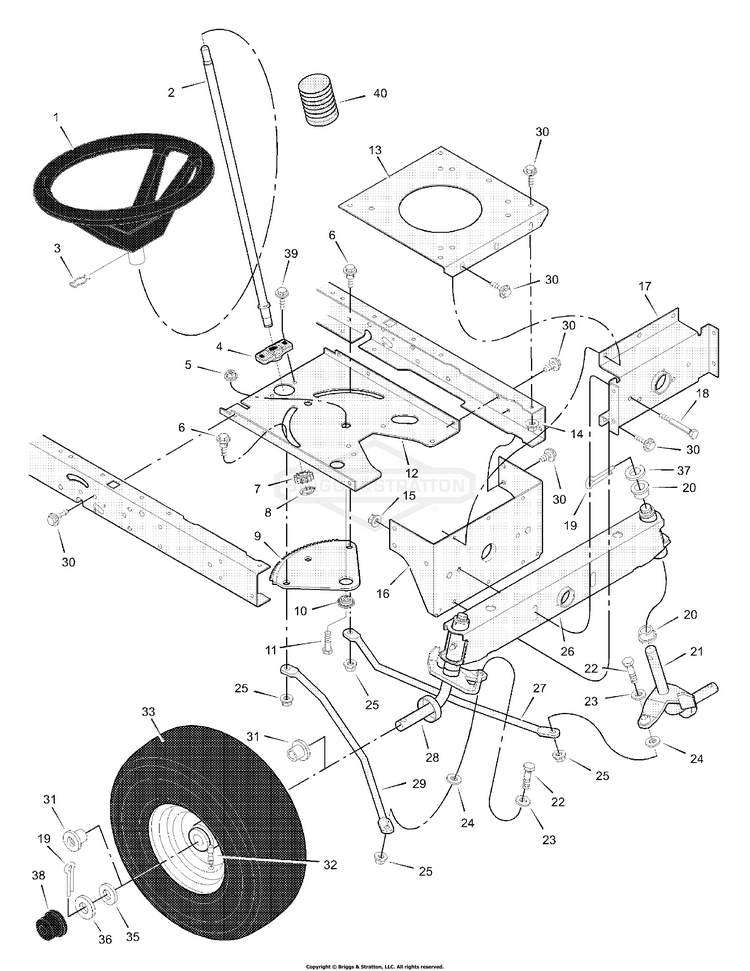

Steering

...
...
1
Wheel, Steering BS-094134MA
...
2
Post, Steering BS-094127
...
3
Clip, Retainer BS-094131MA
...
4
Bearing BS-094124MA
...
5
Nut, Flange BS-15X113MA
...
6
Bolt, Shoulder BS-009X57MA
...
7
GEAR - PINION BS-690183MA
...
8
Ring, Snap BS-011X25MA
...
9
Gear, Sector BS-094121MA
...
10
Bearing BS-094123MA
...
11
BOLT BS-5025011X8FS
...
12
Plate, Steering BS-690551E700
...
13
Plate, Engine BS-094006E700
...
14
NUT, HEX FLNG,5/16-18 BS-704067
...
15
NUT, 5/16-24 Hex Flange Lock, BZ BS-704279
...
16
Bracket, Rear Hanger BS-1001270E701MA
...
17
Axle, Hanger BS-094007E701MA
...
18
Bolt BS-01X146MA
...
19
Pin, Cotter BS-030X49MA
...
20
Bearing BS-690150MA
...
21
Spindle Assembly, Left BS-094576E701MA
...
22
CAPSCREW,3/8-16X1.5 BS-703406
...
23
WASHER, FLAT BS-710083MA
...
24
Washer BS-017X53 Z
...
25
NUT, CNTR LCK, 3/8-16 BS-703893
...
26
Axle Assembly BS-94012E700
...
27
Drag Link, Left BS-095329E701MA
...
28
Spindle Assembly, Right BS-094575E701MA
...
29
Drag Link, Right BS-095328E701MA
...
30
Screw BS-26X249MA
...
31
Bearing, Wheel BS-091334
...
32
VALVE STM&CP,TR41 SE BS-024373MA
...
33
Tire * BS-091912MA
...
--
Tube BS-407047MA
...
34
Wheel and Tire Assembly BS-094578601
...
35
Washer BS-17X195MA
...
36
Washer BS-17X192MA
...
37
WASHER.76-1.2 13G FL BS-17X113MA
...
38
HUB CAP (Optional) BS-094618MA
...
39
Screw BS-26X267MA
...
40
Bellows (Optional) BS-092059MA
