405020x51A Murray - Lawn Tractor (2007)

Model: 405020x51A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

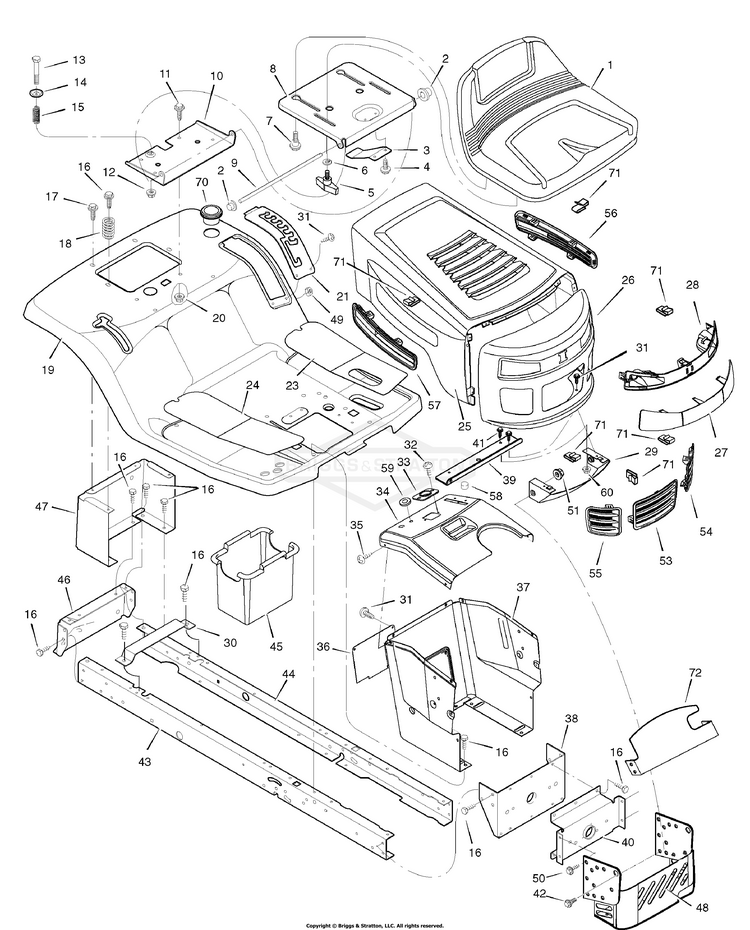

Chassis & Hood

...
...
1
SEAT ADAPTOR KIT BS-1687498YP
...
2
PUSHNUT, 3/8 BS-703948
...
3
SPRING BS-094057MA
...
4
SCREW BS-26X229MA
...
5
BOLT, Wing BS-1001054MA
...
6
WASHER, FLAT 5/16 BS-704015
...
7
BOLT, Shoulder BS-009X56MA
...
8
SUPPORT, SEAT BS-7300875BMYP
...
9
ROD, Pivot BS-094156ZMA
...
10
BRACKET, Pivot BS-1001648E701MA
...
11
CAPSCREW,5/16-18X.625 BS-703822
...
12
NUT .25-20 FLANGELOCK BS-015X89MA
...
13
BOLT, Shoulder BS-009X55MA
...
14
WASHER BS-094155ZMA
...
15
SPRING BS-164X31MA
...
16
SCREW BS-26X249MA
...
17
SCREW.25-20 S-T BS-26X263MA
...
18
SPRING BS-164X30MA
...
19
DECK, Seat BS-1001987E245MA
...
20
NUT, HEX, 5/16-18 BS-703902
...
21
PLATE LIFT DETENT BS-094829E701MA
...
23
MAT, Left BS-094999MA
...
24
MAT, Right BS-094998MA
...
25
HOOD, WM1 BS-1001797E245MA
...
26
GRILLE BS-7300778RMA
...
27
LENS BS-1001806MA
...
28
HOUSING, Headlamp BS-1001805MA
...
29
BRKT, LOWER PIVOT BS-1740530ZMA
...
30
SUPPORT, Battery BS-690482E701MA
...
31
SCREW BS-26X270MA
...
32
SCREW BS-26X238MA
...
33
BEARING, Steering BS-1001491MA
...
34
DASH BS-7300774ZMA
...
35
SCREW BS-26X201MA
...
36
PANEL, Access BS-093007E701MA
...
37
SUPPORT, DASH BS-7300872BMYP
...
38
BRACKET, Rear Hanger BS-1001270E701MA
...
39
BRACKET, Support BS-1740529MA
...
40
AXLE, Hanger BS-094007E701MA
...
41
SCREW.25-20 S-T BS-26X263MA
...
42
BOLT, SHOULDER BS-702315
...
43
RAIL - FRAME RH BS-1001928E701MA
...
44
RAIL-FRAME LH BS-1001269E701MA
...
45
CONTAINER, Battery BS-690424MA
...
46
PLATE, Hitch BS-1001002E701MA
...
47
PANEL, Rear BS-690434E701MA
...
48
Shield, Heat BS-1740501AYP
...
49
NUT#10-24 MCLEANLOCK BS-015X81MA
...
50
SCREW BS-26X277MA
...
51
NUT, CNTR LCK, 3/8-16 BS-703893
...
53
INSERT, Center Grille BS-1001802MA
...
54
INSERT, Left Grille BS-1001803MA
...
55
INSERT, Right Grille BS-1001804MA
...
56
INSERT, Left Hood BS-1001800MA
...
57
INSERT, Right Hood BS-1001801MA
...
58
BUMPER BS-094376MA
...
59
GROMMET, Parking Brake BS-1001755MA
...
60
NUT, 1/4-20, GR5 BS-703233
...
70
HOLDER, Cup BS-1001542MA
...
71
RETAINER, S-Clip BS-028X83MA
...
72
HEAT SHIELD, Upper BS-1740502MA
...
--
PARTS BAG, Assembly BS-1002050MA
...
--
INSTRUCTION BOOK BS-1740564
...
--
MANUAL, Parts List BS-1740565
