405013x50B-SW Murray - Lawn Tractor (2006)

Model: 405013x50B-SW

Back To Assemblies

Save Part Not Listed?
product name

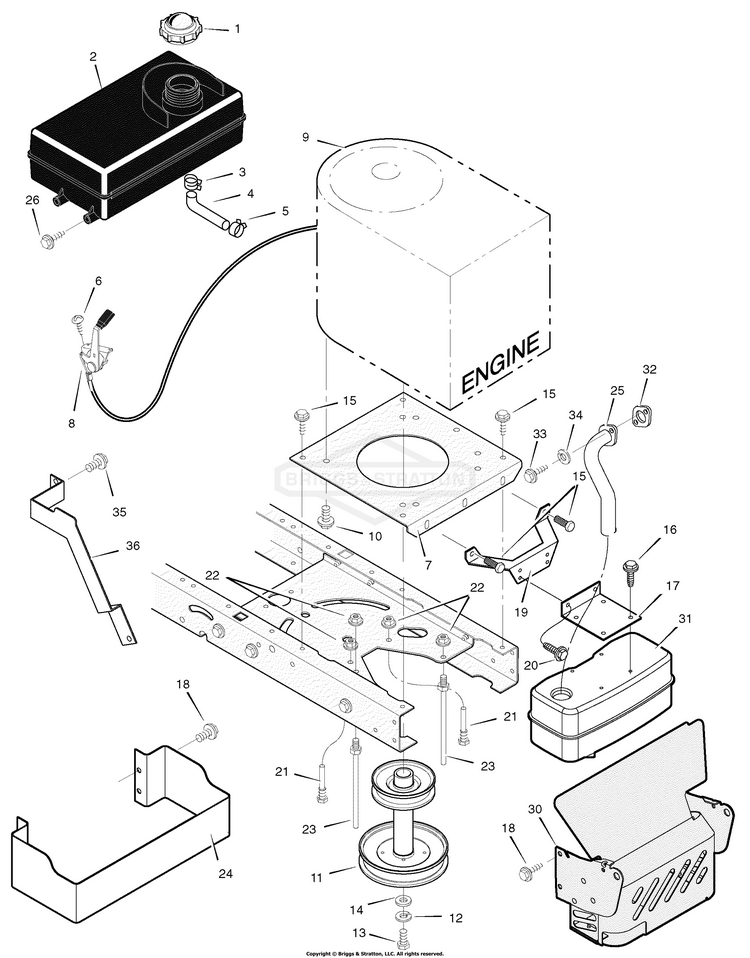

Engine Mount

...
...
1
FUEL CAP (Included with Ref. No. 2) BS-092317MA
...
2
TANK, Fuel 1.4 Gal. BS-7601092MA
...
3
CLAMP, Hose BS-791850
...
4
Fuel Line (Must cut to length) BS-7601033MA
...
5
CLAMP, Hose BS-791850
...
6
Screw BS-26X201MA
...
7
Plate, Engine BS-094006E701MA
...
8
Throttle Control BS-092371MA
...
10
SCREW-HEX WSHR HD TAP BS-2828635SM
...
11
STK PULLEY 38-42 IN R BS-690439MA
...
12
Lockwasher BS-019X35MA
...
13
Bolt, Hex BS-01X140MA
...
14
WASHER.46.97.25 FLAT BS-17X170MA
...
15
Screw BS-26X249MA
...
16
Screw BS-26X229MA
...
17
Bracket, Muffler BS-690538E701MA
...
18
Screw BS-26X277MA
...
19
BRKT - MUFF MTG HP BS-690537E701MA
...
20
SCREW.25-20 S-T BS-26X263MA
...
21
Guide, Belt BS-094384MA
...
22
NUT, 5/16-18, GR5 BS-703409
...
23
Guide, Belt BS-094066MA
...
24
GUARD-HEAT SHIELD-BLK BS-1001620E701MA
...
25
Exhaust Tube, Single BS-1001747MA
...
26
Screw BS-26X253MA
...
30
Shield, Heat BS-1001619E701MA
...
31
Muffler BS-094654MA
...
32
GASKET, Exhaust BS-692236
...
33
Screw BS-06X103MA
...
34
WASHER, 5/16" LOCK BS-5025170SM
...
35
Bolt, Washer Hex Head BS-06X104MA
...
36
GUARD, Exhaust Pipe BS-1001880E701MA
